OPERATION MANUAL
Serial Number

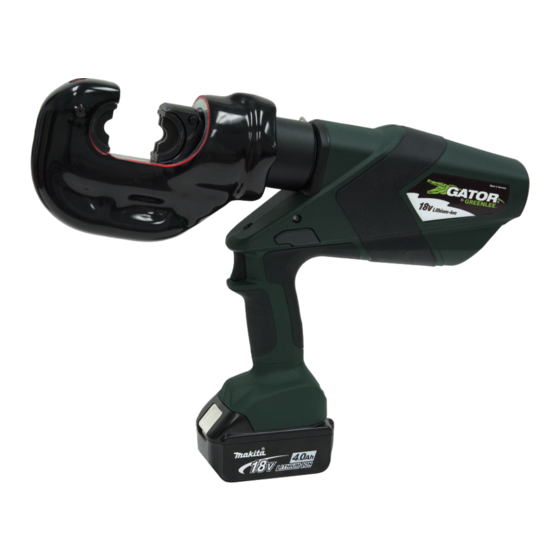

EK1240LX and EK1240CLX
GATOR
Battery-powered,
®
Crimping Tools
Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.
Register this product at www.greenlee.com
52080016 REV 2
© 2017 Greenlee Textron Inc.
3/17
Advertisement
Table of Contents
Related Manuals for Textron Greenlee GATOR EK1240LX
Summary of Contents for Textron Greenlee GATOR EK1240LX
- Page 1 EK1240LX and EK1240CLX GATOR Battery-powered, ® Crimping Tools Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. Register this product at www.greenlee.com 52080016 REV 2 © 2017 Greenlee Textron Inc. 3/17...
-
Page 2: Table Of Contents
• EK1240CLX Battery-powered Crimping Tool All specifications are nominal and may change as design with PVC-covered Head improvements occur. Greenlee Textron Inc. shall not be liable for damages resulting from misapplication or misuse of its products. Keep this manual available to all personnel. -
Page 3: Important Safety Information
• Keep hands away from the crimp- ing tool head when crimping. Failure to observe these warnings could result in severe injury or death. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 4 Failure to observe these precautions may result in injury or property damage. Note: Keep all decals clean and legible, and replace when necessary. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 5: Identification
Recommended Operating Temperature Range ....5 °F to 122 °F (–15 °C to 50 °C) Crimping Capacities Crimping Range ................ 8 AWG to 750 kcmil Battery Charger .............Read the instructions supplied with the battery charger Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 6: Operation
Send tool in for service at end of cycle * Running the battery below 16 V can damage the battery. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 7 First Compression Crimping Direction SIDE B (evenly spaced) First Compression SIDE A First Compression SIDE B Crimping Direction SIDE A (evenly spaced) Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 8: Die Selection
YA-A ACL/ACN 60176; 400 to Aluminum VACL BLUA number provided with YA-ATN 2ACL/2ACN 60230 to 750 kcmil: Lugs the connector. ALNS/ALNN/ALND 60278 3 crimps Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 9: Lcd Screen
Tool deactivated Service necessary Real-time clock not found Bluetooth unit not found ® Pressure sensor not found Burst pressure exceeded Battery temperature too low Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 10: Maintenance
Failure to observe these warnings could result in severe injury or death. Relief valve adjustments must be done by an authorized service center. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 11: Troubleshooting
Pull trigger and hold retract button simultaneously to warm oil. Store tool in warm area. Tool loses oil. Damaged seal. Contact Greenlee customer service at 800-435-0786 for warranty service or repair. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 12 4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070 USA Tel: 800-435-0786 Canada Tel: 800-435-0786 International Tel: +1-815-397-7070 An ISO 9001 Company • Fax: 800-451-2632 Fax: 800-524-2853 Fax: +1-815-397-9247 Greenlee Textron Inc. is a subsidiary of Textron Inc. www.greenlee.com...
