- Page 1 OPERATION MANUAL Serialnummer GATOR EK210L ® Battery-powered Crimping Tool Read and understand all of the instructions and safety information in this manual before operating or servicing this tool.
-
Page 2: Table Of Contents
For recycling information, go to www.greenlee.com. All specifications are nominal and may change as design improvements occur. Greenlee Textron Inc. shall not be liable for damages resulting from misapplication or misuse of its products. GATOR and Kwik Cycle are registered trademarks of Greenlee Textron Inc. -
Page 3: Important Safety Information
EK210L Battery-powered Crimping Tool IMPORTANT SAFETY INFORMATION SAFETY ALERT Wear eye protection when operating or servicing this tool. SYMBOL Failure to wear eye protection could result in serious eye injury from flying debris or hydraulic oil. This symbol is used to call your attention to hazards or unsafe practices which could result in an injury or property damage. - Page 4 EK210L Battery-powered Crimping Tool IMPORTANT SAFETY INFORMATION Pinch points: Do not allow anything to contact the battery terminals. • Remove battery before changing dies, adapters, or jaws. • Do not immerse the batteries in liquid. Liquid may create a short circuit and damage the battery. •...
-
Page 5: Identification

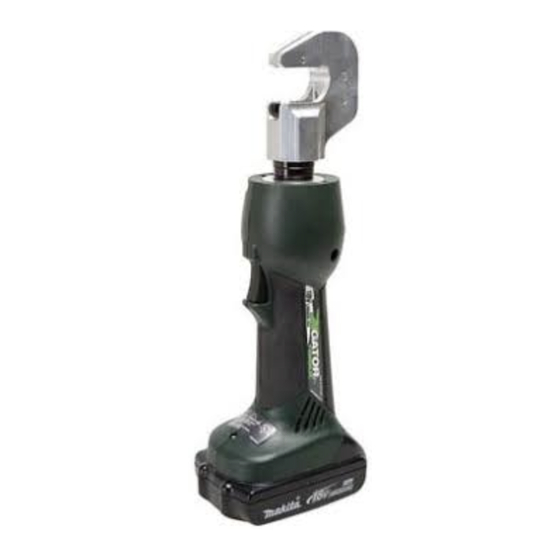

EK210L Battery-powered Crimping Tool Identification 1. Crimping Dies 2. Crimping Head 3. Retract Button 4. LED Indicator (red) 5. Battery Lock 6. Battery Cartridge 7. LED Work Light (white) 8. Trigger Specifications Crimping Tool Length (with battery) ................12.75" (323.8 mm) Width ...................... -
Page 6: Operation
EK210L Battery-powered Crimping Tool Operation Inspect tool and dies before use. Replace any • Do not use this tool for continuous use. After 30 to worn or damaged parts. A damaged or improp- 40 cycles, allow the tool to cool for 15 minutes. erly assembled tool can break and strike nearby •... - Page 7 EK210L Battery-powered Crimping Tool Operation (cont’d) Installing Dies Crimping Cable 1. Select the proper dies for the intended crimp. 1. Insert the properly assembled connector into the crimping head. 2. Slide the die into the crimping head and secure with screw.
-
Page 8: Maintenance
EK210L Battery-powered Crimping Tool Maintenance Daily Before use: 1. Inspect the tool for wear or damage, such as cracks, Wear eye protection when operating gouges, or chips. or servicing this tool. 2. Inspect the tool for damage or leaks. Failure to wear eye protection could 3. -
Page 9: Troubleshooting
EK210L Battery-powered Crimping Tool Troubleshooting Before You Begin 2. Use a nonflammable contact cleaner or pencil 1. Make sure that the battery is charged. Recheck eraser to clean the electrical contacts on the battery the battery after several minutes to make sure the and tool.
