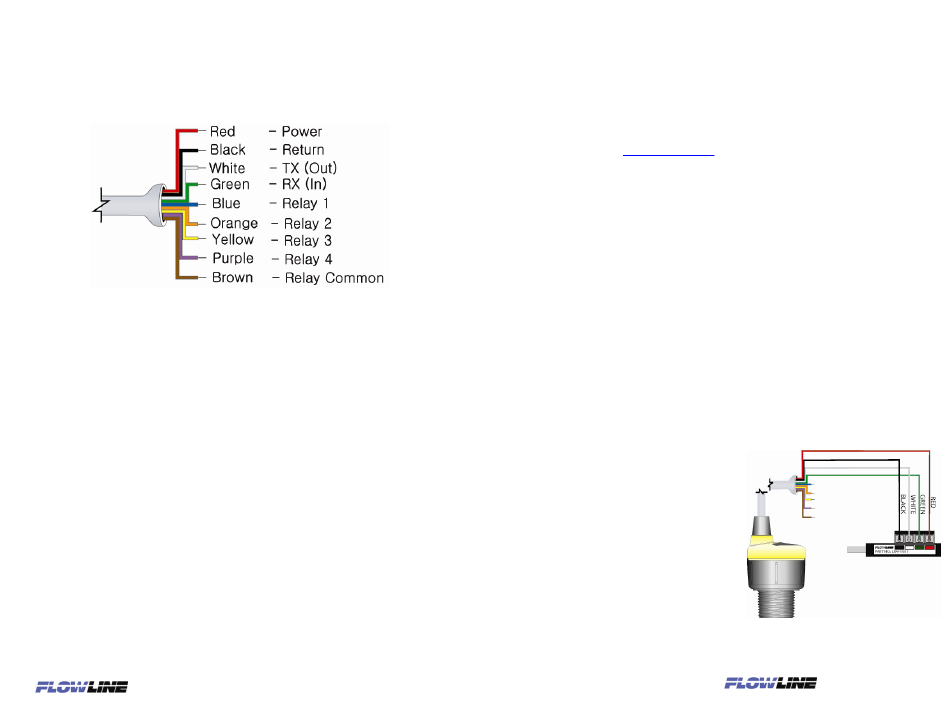

Wiring the EchoPod
®
After mounting the EchoPod , make the necessary electrical connections. A wiring
diagram with specific recommendations for the sensor's configuration can be printed
from the WebCal program. A typical wiring diagram is shown on the next page.
Red and Black leads are for connection to a 24 VDC power supply or to a 4-20 mA
loop power source. The red and black wires can be extended more than 1000 feet
using 22 gauge or larger wire, however do not extend the green and white wires.
White and Green leads are reserved for use with WebCal and should not be
connected during usage in the application. These wires should not be connected to
WebCal while power is supplied from any source other than the LI99 FOB.
Never allow the white or green wires to touch any power supply.
Blue, Orange, Yellow and Purple wires are the relay contacts (normally open) from
each of the relays respectively.
The Brown wire is the common for all of the relays.
We do Your Level Best
Configuring the EchoPod
®
Configuration of your EchoPod should be performed prior to mounting, since it
requires connection to your PC.
Step 1: Install the WebCal Software
Download WebCal from www.flowline.com
specifications:
®
Windows 2000/XP/Vista/7, 10 MB storage space, 256 MB RAM, 1 USB 2.0 port
Double-click the WebCal icon to install before proceeding to Step 2. You must have
an active Internet connection to install WebCal, as it will automatically verify driver
updates.
Step 2: Connect the USB Fob
NOTE: Do not connect the Fob until after you've installed WebCal.
®
The EchoPod communicates to its configuration software through the USB Fob.
Prior to connecting the Fob, ensure that all external power is disconnected from the
®
as power is provided through the PC's USB 2.0 port. Do not use a cable
EchoPod
®
connecting the EchoPod to the Fob any longer than 15 feet.
1) Connect the red, green, white,
and black wires from the EchoPod
to the corresponding colored
terminals on the Fob (as shown in
the diagram).
2) Tighten the terminal screws with a
slotted screwdriver.
Plug the Fob into your PC's USB
3)
port.
®
onto a PC with the following minimum
®
