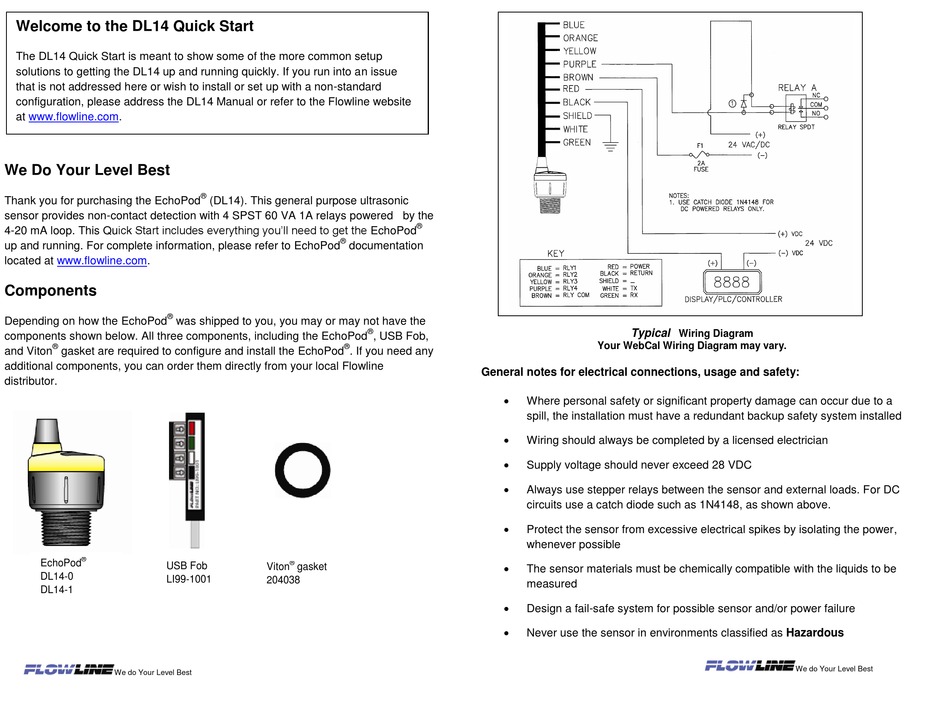

Welcome to the DL14 Quick Start
The DL14 Quick Start is meant to show some of the more common setup
solutions to getting the DL14 up and running quickly. If you run into an issue
that is not addressed here or wish to install or set up with a non-standard
configuration, please address the DL14 Manual or refer to the Flowline website
at www.flowline.com.
We Do Your Level Best
Thank you for purchasing the EchoPod
sensor provides non-contact detection with 4 SPST 60 VA 1A relays powered by the
4-20 mA loop. This Quick Start includes everything you'll need to get the EchoPod
up and running. For complete information, please refer to EchoPod
located at www.flowline.com.
Components
®
Depending on how the EchoPod was shipped to you, you may or may not have the
components shown below. All three components, including the EchoPod
®
and Viton gasket are required to configure and install the EchoPod
additional components, you can order them directly from your local Flowline
distributor.
®
EchoPod
USB Fob
DL14-0
LI99-1001
DL14-1
We do Your Level Best
®
(DL14). This general purpose ultrasonic
®
documentation
®
, USB Fob,
®
. If you need any
®
Viton gasket
204038
®
General notes for electrical connections, usage and safety:

Where personal safety or significant property damage can occur due to a
spill, the installation must have a redundant backup safety system installed

Wiring should always be completed by a licensed electrician

Supply voltage should never exceed 28 VDC

Always use stepper relays between the sensor and external loads. For DC
circuits use a catch diode such as 1N4148, as shown above.

Protect the sensor from excessive electrical spikes by isolating the power,
whenever possible

The sensor materials must be chemically compatible with the liquids to be
measured

Design a fail-safe system for possible sensor and/or power failure

Never use the sensor in environments classified as Hazardous
Typical
Wiring Diagram
Your WebCal Wiring Diagram may vary.
