Grizzly G0593 Replacement Parts

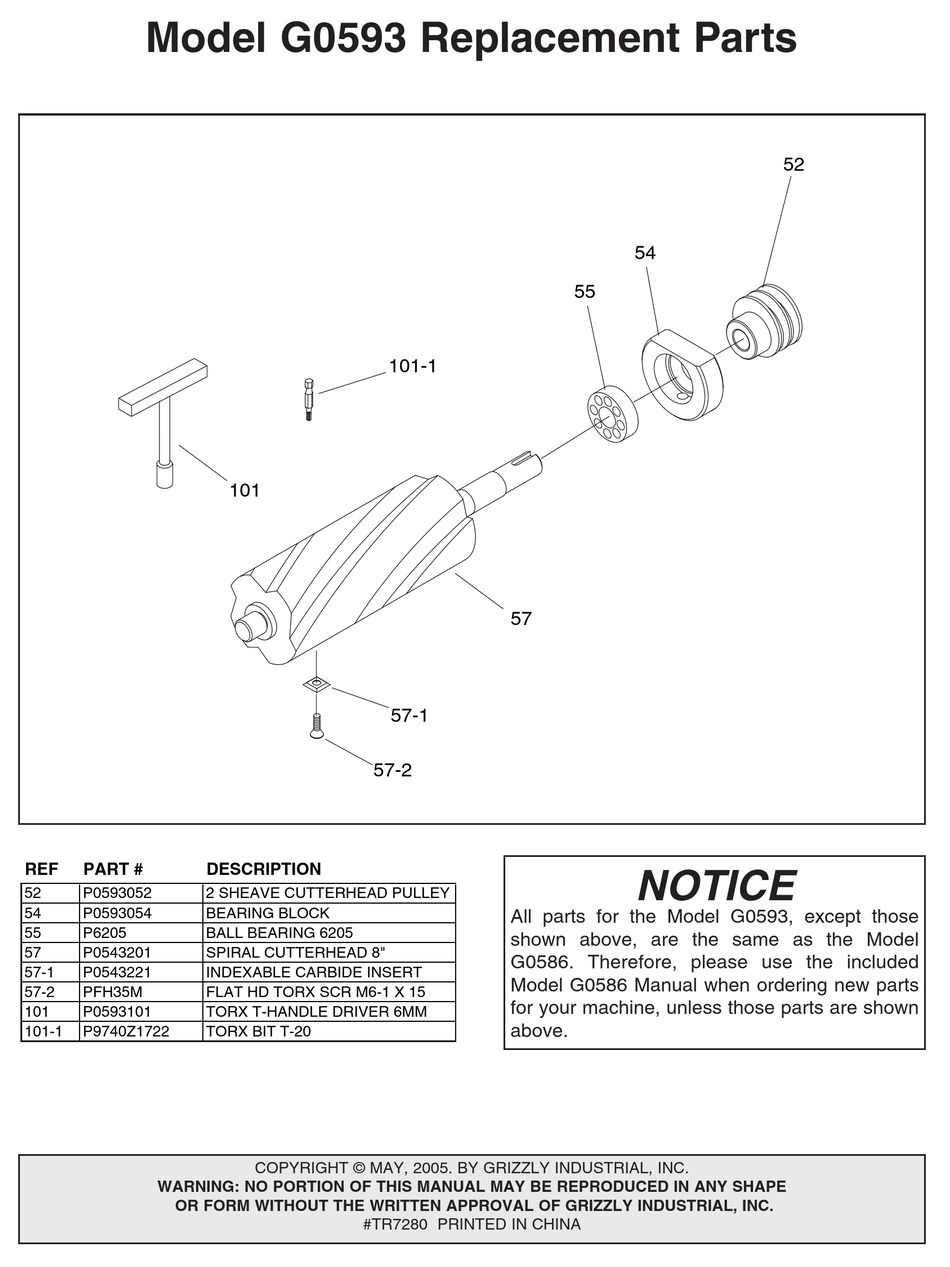

Model G0593 Replacement Parts
REF PART #
52 P0593052
54 P0593054
55 P6205
57 P0543201
57-1 P0543221
57-2 PFH35M
101 P0593101
101-1 P9740Z1722
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
���
����
DESCRIPTION
2 SHEAVE CUTTERHEAD PULLEY
BEARING BLOCK
BALL BEARING 6205
SPIRAL CUTTERHEAD 8"
INDEXABLE CARBIDE INSERT
FLAT HD TORX SCR M6-1 X 15
TORX T-HANDLE DRIVER 6MM
TORX BIT T-20
COPYRIGHT © MAY, 2005. BY GRIZZLY INDUSTRIAL, INC.
#TR7280 PRINTED IN CHINA
�����
��
����
All parts for the Model G0593, except those
shown above, are the same as the Model
G0586. Therefore, please use the included
Model G0586 Manual when ordering new parts
for your machine, unless those parts are shown
above.
��
��
NOTICE
��
