O W N E R ' S M A N U A L
1. Read this manual carefully before starting assembly. Read each step completely before beginning
each step.
2. Some smaller parts may be shipped inside larger parts. Check inside all parts and cartons
before assembling or ordering parts.
3. To make assembly easier, use the Hardware Identifier on page 9 to identify and sort all
fasteners. Check all cartons for kits. All hardware may not be located in one kit.
4. Do not tighten hardware until instructed to do so. If hardware is tightened too soon, mounting holes
may not align and parts may not easily fit together. Leave locknuts slightly loose until you are instructed to
tighten them.
5. T ools required for assembly: Phillips Screwdriver , Two 7/16 Wrenches, One 3/8 Wrench (an
adjustable wrench may be substituted for the wrenches).
6. Do not use power tools to drive screws into wood tops. Hand tighten screws only. Tighten
screws snug, but do not overtighten causing screws to strip.
7. Save this instruction and your proof of purchase (receipt) in the event that the manufacturer
has to be contacted for replacement parts.
Please Do Not Return This Product To The Store!
Contact Escalade
Phone:
1-866-873-3528
Fax:
1-866-873-3533
E-mail:
tabletennis@escaladesports.com
Mailing Address (correspondence only):
Escalade Sports
PO Box 889
Evansville, IN 47706
Please visit our World Wide Web site at:
ON-LINE TROUBLE SHOOTING
ON-LINE PARTS REQUESTS
ADDITIONAL ESCALADE
Escalade® Sports products may be manufactured and/or licensed under the following patents.
6120397, 5816957, 5769744, 5119741, 4911085, 4717157, D460140, D420563
Additional patents may be pending. One or more of the listed patents and/or pending patents may cover specific product.
®
Sports customer service department at:
®
SPORTS PRODUCT INFORMATION
.
Toll – Free !
Toll – Free !
www.escaladesports.com
TECHNICAL ASSISTANCE
FREQUENTLY ASKED QUESTIONS

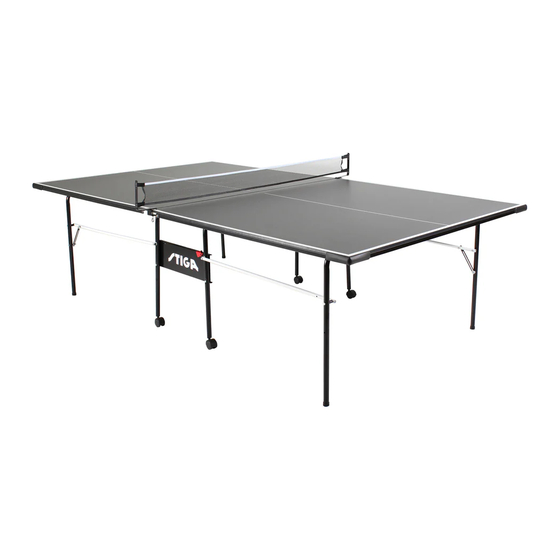

TABLE TENNIS TABLE
MODEL NOS.
T8621
T8621B
2L-4132-00
2012 Escalade Sports
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Stiga Play The Best T8621
Summary of Contents for Stiga Play The Best T8621
- Page 1 TABLE TENNIS TABLE MODEL NOS. T8621 T8621B O W N E R ' S M A N U A L 1. Read this manual carefully before starting assembly. Read each step completely before beginning each step. 2. Some smaller parts may be shipped inside larger parts. Check inside all parts and cartons before assembling or ordering parts.
- Page 2 For aid in identifying hardware, see hardware identifier on page 9. Figure 1 Table Top U-support 1. Lay table top #1 painted side down, on a smooth, flat surface. Use the shipping container to protect the painted surface of the table top. Plastic Align U-Support (#7) and U-Leg (#2) on Table Top as shown in Figure 1.
- Page 3 This end is the middle of the table 32 (RH) Figure 3 Lay out rails #25 and 26, as shown in Figure 3, around edges of table top. Slide Left #33 and Right #32 Vinyl End Caps onto the ends of the Side Rails #25 as shown.
- Page 4 Figure 6 10. Attach end of linkages #4 with two holes to INSIDE of U-leg #2 as shown in Figure 6. Secure through end hole with screws #23, locknuts #15 and plastic spacers #31. Tighten hardware snug enough to keep table stable but do not overtighten.
- Page 5 18. Repeat steps 1 through 12 on second table half. CAUTION: 19. Gently tap caster sockets #12 into U-support #7 on second table half until flange on sockets touches the edge of the tube. DO NOT AT LEAST TWO ADULTS ARE NEEDED TO HIT CASTER SOCKETS TOO HARD WITH A HAMMER.
- Page 6 Figure 10 22. Make sure the legs on the first table top half (the half with the name panel #5) are open. With one person on each side of the table, lift and set table half on its legs. Place table against a wall as shown above to help stabilize table top half while second half is being attached. Be sure there is enough room to connect second half.
- Page 7 OPENING AND CLOSING INSTRUCTIONS READ OPERATING INSTRUCTIONS CAREFULLY BEFORE OPERATING TABLE! DO NOT ALLOW CHILDREN TO OPEN TABLE! DO NOT CLIMB, STAND OR JUMP ON TABLE! SERIOUS OR FATAL INJURY MAY RESULT! THIS IS NOT A TOY! TABLE IS CAUTION: TO BE OPENED OR CLOSED BY ADULTS ONLY! FAILURE TO COMPLY WITH OPENING AND CLOSING INSTRUCTIONS COULD RESULT IN PERSONAL INJURY OR PROPERTY DAMAGE.
-
Page 8: Care And Maintenance
CARE AND MAINTENANCE You have purchased a quality product that will give you years of enjoyment. By following these simple maintenance steps, you will add to the life of your new table. THE TABLE TOP The top (playing surface) of your table is made of particle board. Like all products made of wood, it can be affected by atmospheric changes in both temperature and humidity. - Page 9 PRODUCT PARTS LIST - T8621 & T8621B Key # T8621 T8621B Description Qty. Key # T8621 T8621B Description Qty. 4A-5467-02 (Green) 4A-5467-00 (Black) Table 2N-0214-99 2N-0214-99 #10 Flatwasher 8S-6610-00 8S-6610-00 U-Leg 1B-4089-00 1B-4089-00 #8-32 x 1 1/4 Sheet Metal Screw 2S-6879-10 2S-6879-10 1 U-Clip...
