Mounting

6 Mounting
6.1

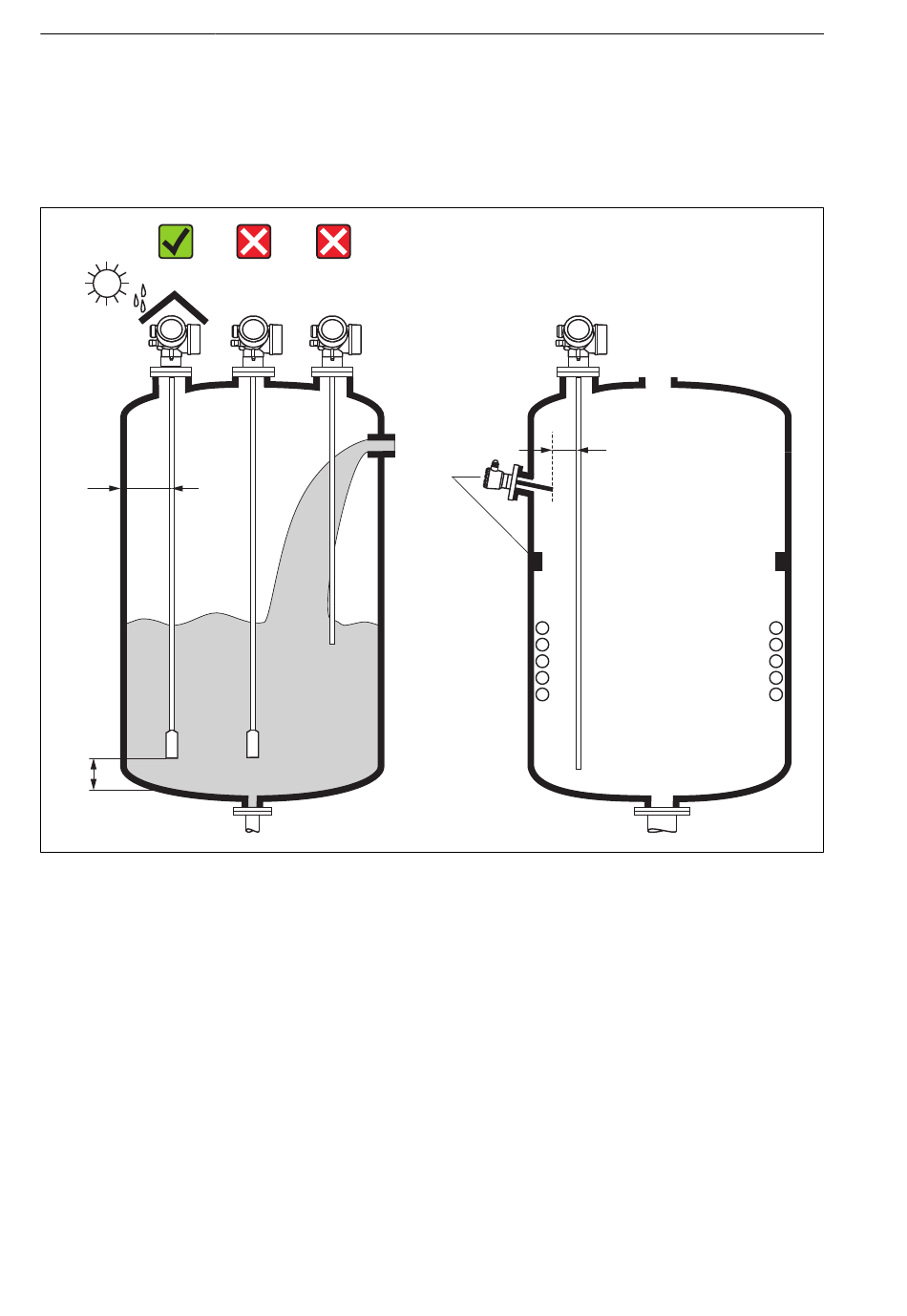

Suitable mounting position

1
A
C
6.1.1 Mounting distances
• Distance (A) between wall and rod or rope probe:
– for smooth metallic walls: > 50 mm (2")
– for plastic walls: > 300 mm (12") mm to metallic parts outside the vessel
– for concrete walls: > 500 mm (20") , otherwise the available measuring range may be
reduced.
• Distance (B) between rod or rope probe and internal fittings in the vessel: > 300 mm (12")
• Distance (C) from end of probe to bottom of the vessel: > 10 mm (0.4").
12
2 3
Levelflex FMP51, FMP52, FMP54
B
4
A0012606
