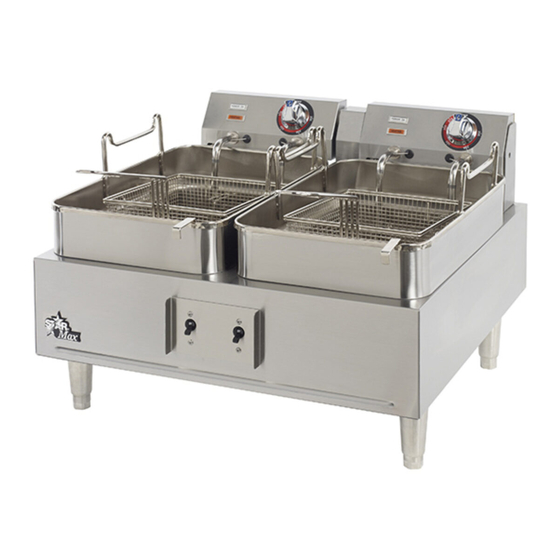

- Page 1 ® DEEP FAT FRYER MODEL 530TF & 530TEF SERIES Installation and Operation Instructions 2M-Z16001 Rev. - 5/31/2012 530TF...
-
Page 2: Safety Symbol
SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. -
Page 3: Power Supply
SPECIFICATIONS Dimensions Weight Model Voltage Amps Width Depth Height Installed Shipping 208V 8,638 41.5 530TF 240V 11,500 47.5 69 lbs (31.3 81 lbs (36.7 24” 24” 16.75” 208V 6,910 33.2 530TEF 240V 9,200 38.3 GENERAL INSTALLATION DATA This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the CAUTION general public in food service locations. - Page 4 OPERATING INSTRUCTIONS PLACE THE LAMINATED WARNING SIGN SUPPLIED WITH THE FRYER IN AN AREA VISIBLE TO THE FRYER OPERATOR. CAUTION CLEAN KETTLE BEFORE USING Take out baskets, push and hold element catch, lift up on element lift handle until elements lock in a vertical position, and remove kettle.
- Page 5 CAUTIONS FOR ALL DEEP FAT FRYERS NEVER LEAVE AN OPERATING FRYER UNATTENDED RESPECT IT! REMEMBER HOT OIL IS DANGEROUS – WARNING – MAINTENANCE WARNING – INSTALLATION • Have your equipment checked regularly to • Locate your fryer in a protected place so insure its safe and properly functioning.
- Page 6 CARE OF FAT In three to six months you may spend as much for fat as A number of commercial devices and materials are avail- you paid for your kettle. So fat is an item you want to know able to aid in eliminating fat impurities. There are several all about;...
- Page 7 HANDY FRYING CHART TIME IN FOOD COATING PROCEDURE TEMP MINUTES POTATOES Standard French Fries Cut in uniform pieces 1/2” 350° Blanch Only square the long way 350° 3-1/2 Brown Only 350° 3-1/2 Long Branch Cut in uniform pieces 3/4” square the long way 350°...
- Page 8 Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit.
- Page 9 RIGHT HAND CONTROL LEFT HAND CONTROL HOUSING ASSEMBLY HOUSING ASSEMBLY 530015 530016 THERMOSTAT HIGH LIMIT HEATING LIGHT POWER ON LIGHT HEATING ELEMENT 2-POLE SWITCH G POWER SUPPLY BLOCK FOR SUPPLY CONNECTION USE COPPER WIRE RATED AT LEAST 90°C. MODEL 530TE MODEL 530T / TMFE30 208V 1 PH.
- Page 10 SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE STAR MANUFACTURING INTERNATIONAL, INC. MODEL - 530TF 530TEF SK2590 Rev. - 5/31/12...
-
Page 11: Parts List
PARTS LIST May 31, 2012, Rev - Model: 530TF & 530TEF Electric Deep Fat Fryer Fig. No Part No. Description Application 2A-Z5942 E1-Y5083 PANEL, INSPECTION, SMALL E1-530071 BOTTOM ASSEMBLY 2M-Z15804 STAR-MAX LOGO 2E-Y5166 SWITCH - 2 POLE 30 AMP E1-115714 KETTLE ASSEMBLY, COMPLETE 2B-115774 BASKET - TWIN, LEFT HANGER (OPTIONAL) - Page 12 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
