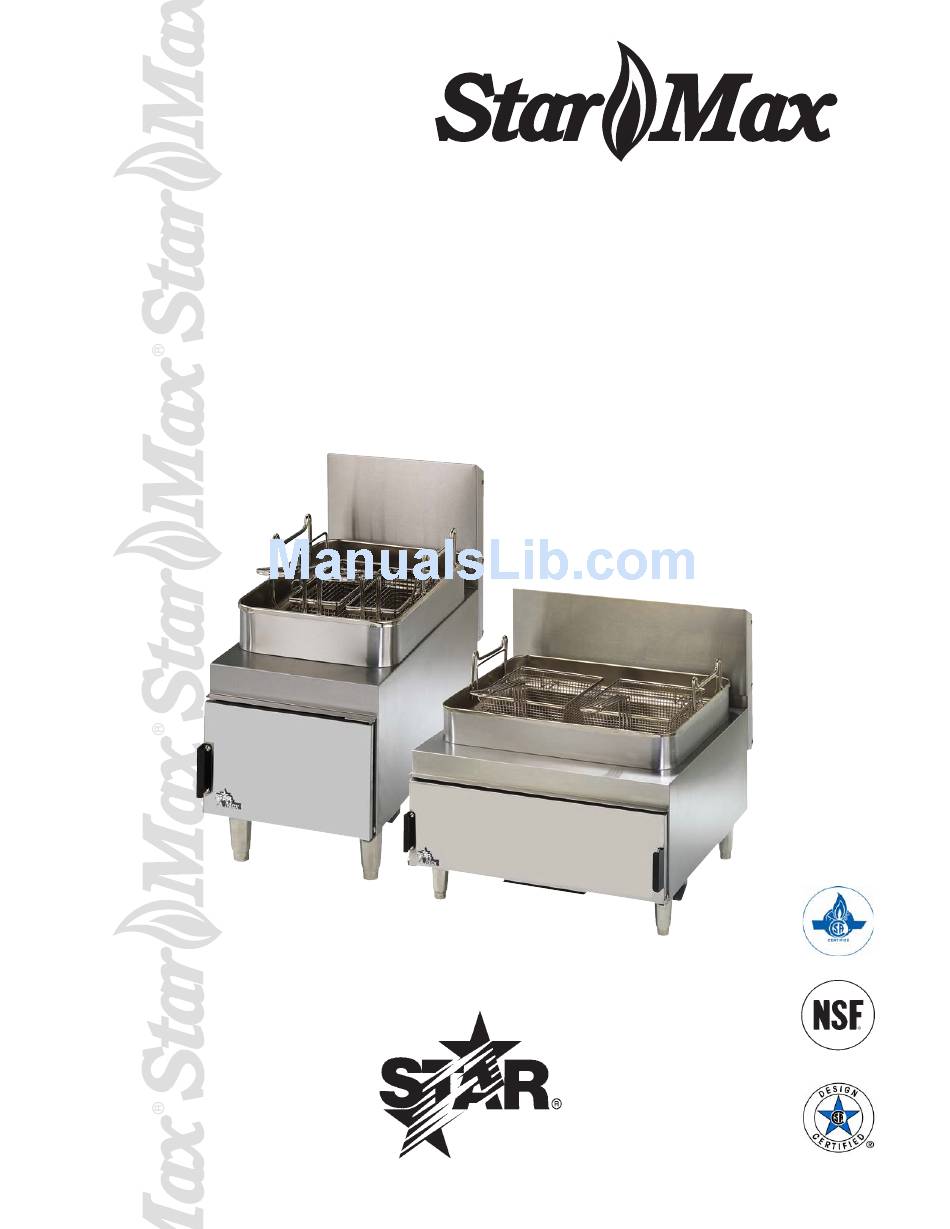

- Page 1 ® DEEP FAT FRYER MODEL 404F 615FF 630FF Installation and Operation Instructions 2M-Z15997 Rev. - 5/30/2012 615FF 630FF...
-
Page 2: Safety Symbol
SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. -
Page 3: Specifications
Specifications Weight Dimensions N.P.T. Gas Model Connection Installed Shipped Width Depth Height 404F 24,000 64 lbs 73 lbs 24” 25 5/8” 3/8” (1cm) 12” 615FF 30,000 64 lbs 75 lbs 25 1/8” 23 3/8” 630FF 70,000 1/2” (2cm) 110 lbs 118 lbs 24”... -
Page 4: For Your Safety
FOR YOUR SAFETY DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. KEEP THE APPLIANCE AREA CLEAR AND FREE FROM COMBUSTIBLES. AIR SUPPLY Provisions for adequate air supply must be provided. AIR INTAKES IN BOTTOM Make certain that the air intake opening in the bottom of the appliance is not obstructed. -
Page 5: Gas Pressure Regulator
GAS PRESSURE REGULATOR The regulator is factory set as specified on the rating plate. If it should be necessary to check the manifold pressure, remove the /8" pipe plug from the top part of the burner manifold and attach a pressure gauge. - Page 6 OPERATING INSTRUCTIONS . CLEAN KETTLE thoroughly before using. Remove baskets and crumb tray. Clean protective oil from interior of kettle with warm water & mild detergent. Drain through valve in bottom and rinse thoroughly with clear water and dry completely before filling with oil. 2.
-
Page 7: General Maintenance Tips
DO NOT ATTEMPT TO FORCE THE RESET BUTTON OR KNOB ON THE VALVE CONTROL UNDER ANY CIRCUMSTANCES. CAUTION GENERAL MAINTENANCE TIPS 1. DO NOT fire empty kettle or with fat or oil beneath the minimum level indicator. 2. DO NOT fry foods in excess of 385°F (96°C). 3. - Page 8 CAUTIONS FOR ALL DEEP FAT FRYERS NEVER LEAVE AN OPERATING FRYER UNATTENDED RESPECT IT! REMEMBER HOT OIL IS DANGEROUS – WARNING – MAINTENANCE WARNING – INSTALLATION • Have your equipment checked regularly to • Locate your fryer in a protected place so insure its safe and properly functioning.
- Page 9 CARE OF FAT In three to six months you may spend as much for fat A number of commercial devices and materials are as you paid for your kettle. So fat is an item you want available to aid in eliminating fat impurities. There are several excellent models of pressure filters as well to know all about;...
- Page 10 HANDY FRYING CHART TIME IN FOOD COATING PROCEDURE TEMP MINUTES POTATOES Standard French Fries Cut in uniform pieces /2” 350° Blanch Only square the long way 350° 3-/2 Brown Only 350° 3-/2 Long Branch Cut in uniform pieces 3/4” square the long way 350°...
- Page 11 Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit.
- Page 13 SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE MODEL 404F STAR MANUFACTURING INTERNATIONAL, INC. FRYER NAT/PROP SK2585 Rev. - 5-20-12...
-
Page 14: Parts List
PARTS LIST May 29, 202, Rev - Model: 404F Star-Max Counter Gas Fryer Fig No Part No Description Application E4-Z0049 PANEL-BACK E4-Z0048 FLUE-BACK E4-Z0562 BAFFLE-FLUE E4-404043 COVER FLUE ASSY E4-Z0446 HANGER-BASKET 2C-H8670 WASHER #8 INT. TOOTH 2C-2555 ACORN NUT #8-32... - Page 15 Body Assy 7.5” Combustion Chamber 10” SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE STAR MANUFACTURING INTERNATIONAL, INC. MODELS: 615FF/630FF SK2586 REV. - 05-29-12...
- Page 16 PARTS LIST May 29, 202, Rev - Model: 615FF/630FFF Star-Max Counter Gas Fryer Fig No. Part No. Description Application E6-Y9732 615FF FLUE-COVER REAR E6-Y9875 630FF E6-Y9730 615FF FLUE-REAR E6-Y9873 630FF E6-Y9731 615FF FLUE-COVER FRONT E6-Y9874 630FF 2A-Y9751 HOOK-KETTLE E6-615015 615FF KETTLE ASSY E6-630015 630FF...
- Page 17 PARTS LIST May 29, 202, Rev - Model: 615FF/630FFF Star-Max Counter Gas Fryer Fig No. Part No. Description Application E6-Y9727 615FF BRACKET-THERMOSTAT E6-Y9953 630FF 2R-Z6003 KNOB 2J-Y9270 THERMOPILE E6-Y9802 615FF SUPPORT BURNER E6-Y9803 630FF E6-Y9752 SUPPORT MANIFOLD 2J-Z6452 VALVE, 71-502, NAT 615FF/630FF NATURAL GAS E6-Z0602 VALVE-7000, PROP...
