Grizzly G0497 Instruction Sheet

The Model G0497 has a maximum operating
pressure of 120 psi. exceeding this maxi-
mum can lead to high pressure parts failure,
which may cause serious personal injury!
EYE/EAR INJURY HAZARD!
Wear safety glasses and
hearing protection during
use of this tool!
Disconnect tool from air and
power to prevent accidental
operation during service!
Keep hands clear of hammer
mechanism at all times!
Machine Data
Control Power ...........110V, Single-Phase, 60 Hz
Blows per Minute ......................................... 4600
Air Pressure ....................................... 90-120 PSI
Air Consumption ..................................... 12 CFM
Throat ............................................................. 24"
Weight ......................................................168 lbs
This machine presents
serious injury hazards
to untrained users.
Read through this entire
instruction sheet
become familiar
the controls and opera-
tions before starting the
machine!
INJURY HAZARD!
CRUSHING HAZARD!
PLANISHING HAMMER
INSTRUCTION SHEET
to
with

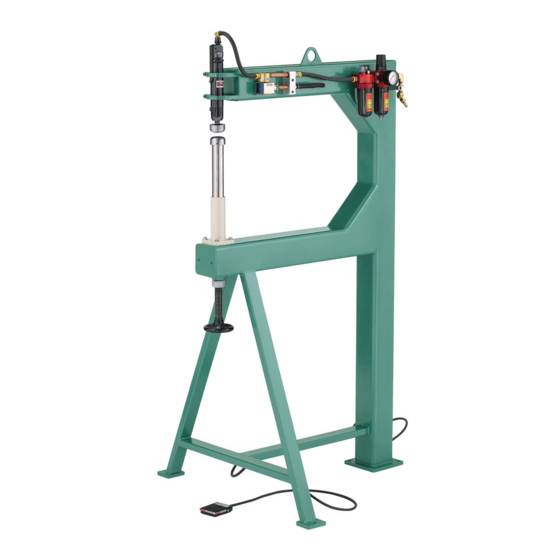

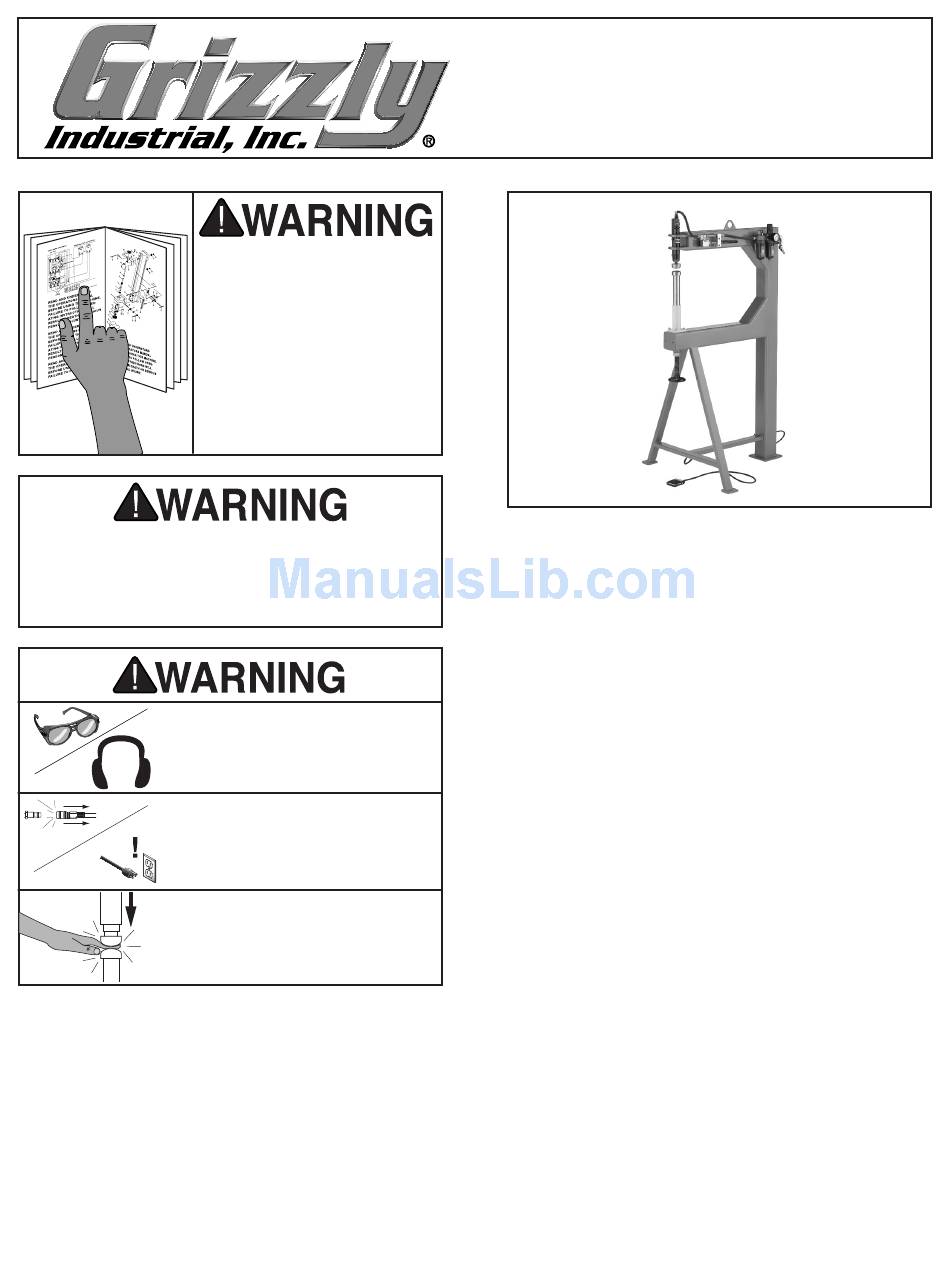

Figure 1. Model G0497 Planishing Hammer.
Introduction
Great for all sheet metal forming, the Model
G0497 Planishing Hammer includes an integrated
filter/regulator and lubricator, and can shape mild
steel up to 16 gauge.
Inventory
Planishing Hammer ........................................... 1
Mounting and Setup
1. With the help of an assistant, carefully uncrate
the planishing hammer.
2.
Determine the most suitable location for your
planishing hammer based on the planned
usage of the machine. Larger workpieces will
require a larger space around the planishing
hammer.
3.
Mount the planishing hammer to the floor
using fasteners appropriate for the floor
type.
4. Check the oil level in the lubricator. If the oil
level is low, refill with an SAE 10-weight non-
detergent, non-additive oil.
5. Install a male
into the air inlet of the planishing hammer.
MODEL G0497
⁄ " NPT quick connector fitting
1
4
