User's Guide
LM61460-Q1 EVM User's Guide
The LM61460-Q1 evaluation module (EVM) is designed to help customers evaluate the performance of the
LM61460-Q1 synchronous step-down voltage converter. This EVM implements the LM61460-Q1 in a 14-pin
wettable flanks Hotrod
™
6-A load current with exceptional efficiency and output accuracy in a very small solution size. The EVM provides
multiple power connectors and test points. It also provides a good layout example, which is optimized for EMI
and thermal performance.
CONVERTER
U1
SNVU621D – MAY 2019 – REVISED JULY 2021
Submit Document Feedback
package, as shown in
Table
Table 1-1. Device and Package Configurations
IC
LM61460-Q1

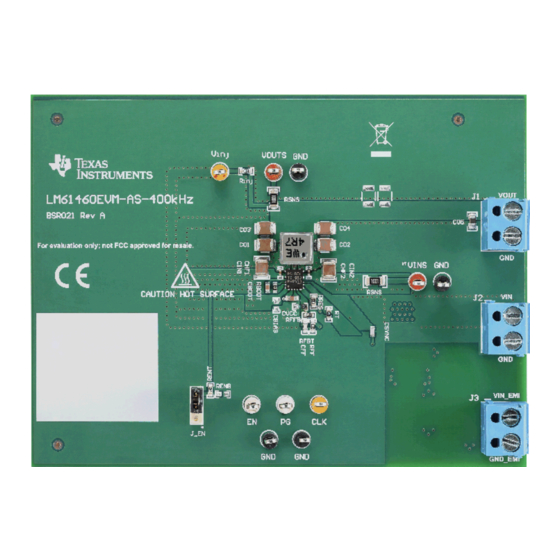

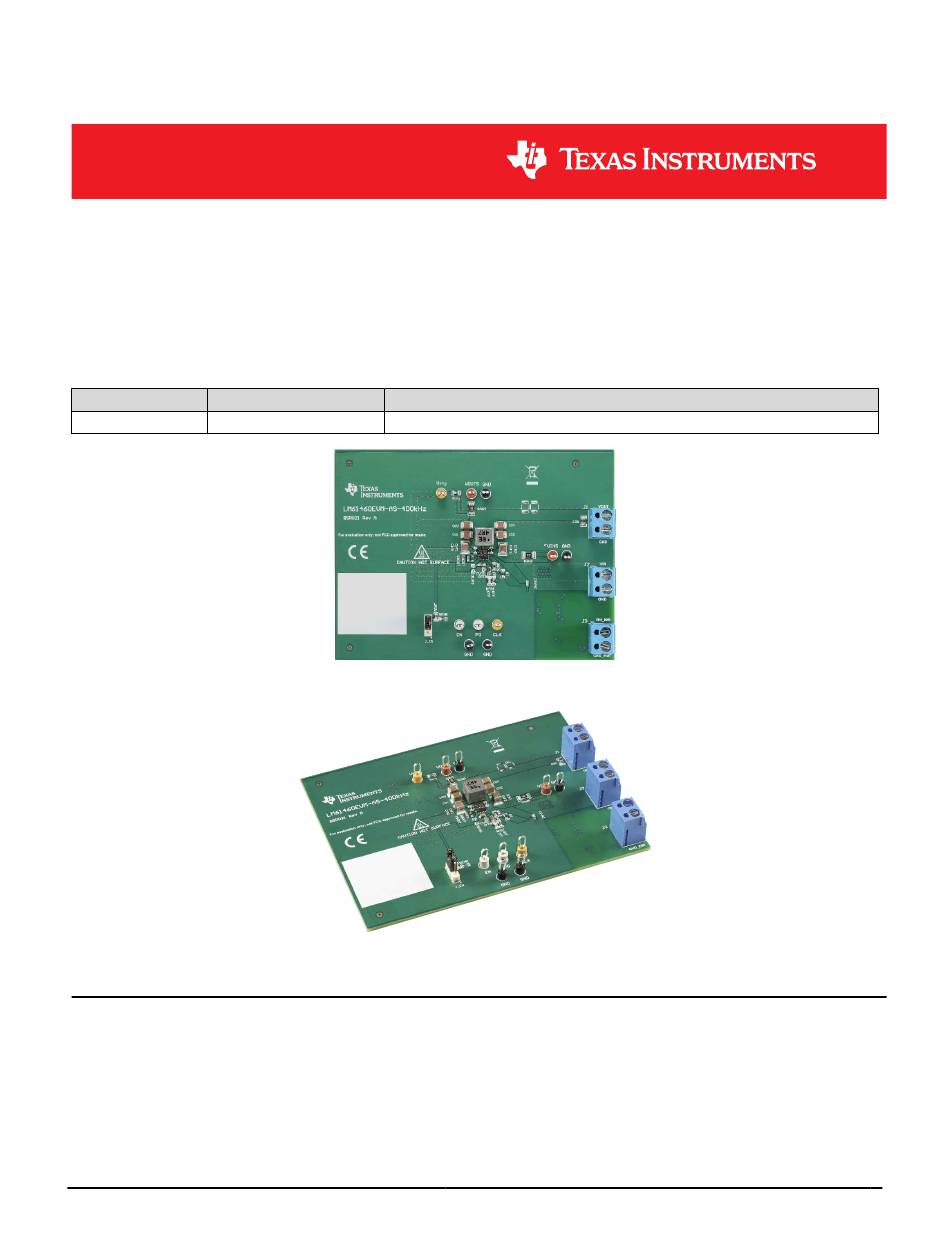

Figure 1-1. LM61460EVM Front
Figure 1-2. LM61460EVM Angle
Copyright © 2021 Texas Instruments Incorporated
ABSTRACT
1-1. It is capable of delivering 5-V output voltage and up to
PACKAGE
14-pin wettable flanks Hotrod package 4.0 mm × 3.5 mm × 1.0 mm
LM61460-Q1 EVM User's Guide
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments LM61460EVM
Summary of Contents for Texas Instruments LM61460EVM
-
Page 1: Figure 1-1. Lm61460Evm Front
14-pin wettable flanks Hotrod package 4.0 mm × 3.5 mm × 1.0 mm Figure 1-1. LM61460EVM Front Figure 1-2. LM61460EVM Angle SNVU621D – MAY 2019 – REVISED JULY 2021 LM61460-Q1 EVM User's Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 2: Table Of Contents
List of Tables Table 1-1. Device and Package Configurations...........................1 Table 1-1. EVM Variants................................Table 4-1. Different BOM Configurations........................... Table 7-1. LM61460EVM-xS-400K Rev A EVM Bill of Materials....................Trademarks Hotrod ™ is a trademark of Texas Instruments. LM61460-Q1 EVM User's Guide SNVU621D –... - Page 3 Trademarks All trademarks are the property of their respective owners. SNVU621D – MAY 2019 – REVISED JULY 2021 LM61460-Q1 EVM User's Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
-
Page 4: Introduction
AGND RESET EN/SYNC BIAS LM61460-Q1 Figure 1-1. LM61460-Q1 Pin Configuration (Top View) CBOOT RBOOT AGND Figure 1-2. LM61460-Q1 Schematic LM61460-Q1 EVM User's Guide SNVU621D – MAY 2019 – REVISED JULY 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 5: Lm61460-Q1 Evaluation Module
3 to 36 V Enabled Disabled Enabled -AS-400K QRJRRQ1 LM61460EVM LM61460AFS 400 kHz 3 to 36 V Disabled Enabled Enabled -FS-400K QRJRRQ1 SNVU621D – MAY 2019 – REVISED JULY 2021 LM61460-Q1 EVM User's Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 6: Quick Start
Figure 2-1. Top View of LM61460-Q1 EVM CAUTION Caution Hot surface. Contact may cause burns. Do not touch. LM61460-Q1 EVM User's Guide SNVU621D – MAY 2019 – REVISED JULY 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 7: Detailed Descriptions
The operation mode changes to forced PWM mode automatically, maintaining a constant switching frequency at light load. SNVU621D – MAY 2019 – REVISED JULY 2021 LM61460-Q1 EVM User's Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... - Page 8 VINS Kelvin sensing for VIN This connector is provided to allow V to be measured more accurately. LM61460-Q1 EVM User's Guide SNVU621D – MAY 2019 – REVISED JULY 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
-
Page 9: Schematic
EMI Filter Components and Their Nonidealities for Automotive DC/DC Regulators Technical Brief. SNVU621D – MAY 2019 – REVISED JULY 2021 LM61460-Q1 EVM User's Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 10: Alternative Bom Configurations
24.9 kΩ 6.04 kΩ 3 x 22 µF 2 x 4.7 µF + 2 x 1 µH (XEL5030) 100 nF LM61460-Q1 EVM User's Guide SNVU621D – MAY 2019 – REVISED JULY 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 11: Board Layout
Figure 5-1. Top 3D View Figure 5-3. Signal Layer 1 - Ground Plane Figure 5-4. Signal Layer 2 - Routing SNVU621D – MAY 2019 – REVISED JULY 2021 LM61460-Q1 EVM User's Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 12: Figure 5-5. Bottom Layer
Board Layout www.ti.com Figure 5-5. Bottom Layer Figure 5-6. Bottom 3D view LM61460-Q1 EVM User's Guide SNVU621D – MAY 2019 – REVISED JULY 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 13: Lm61460Evm Board Test Results
LM61460EVM Board Test Results 6 LM61460EVM Board Test Results 6.1 EMI The EMI measurements were taken following CISPR 25, Class 5 standards. The measurements were taken at 13.5 VIN, 5 VOUT with a 6 A load. Figure 6-2. Conducted EMI Measurement with Figure 6-1. -
Page 14: Board Efficiency
Figure 6-8. F = 400 kHz, 5 VOUT, Auto Mode Figure 6-9. F = 400 kHz, 5 VOUT, FPWM Mode LM61460-Q1 EVM User's Guide SNVU621D – MAY 2019 – REVISED JULY 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 15: Figure 6-10. Fsw = 400 Khz, 3.3 Vout, Auto Mode
Figure 6-14. F = 2.2 MHz, 3.3 VOUT, Auto Mode Figure 6-15. F = 2.2 MHz, 3.3 VOUT, FPWM Mode SNVU621D – MAY 2019 – REVISED JULY 2021 LM61460-Q1 EVM User's Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 16: Load Regulation
Figure 6-20. F = 2.2 MHz, 5 VOUT, Auto Mode Figure 6-21. F = 2.2 MHz, 5 VOUT, FPWM Mode LM61460-Q1 EVM User's Guide SNVU621D – MAY 2019 – REVISED JULY 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 17: Figure 6-22. Fsw = 2.2 Mhz, 3.3 Vout, Auto Mode
Figure 6-22. F = 2.2 MHz, 3.3 VOUT, Auto Mode Figure 6-23. F = 2.2 MHz, 3.3 VOUT, FPWM Mode SNVU621D – MAY 2019 – REVISED JULY 2021 LM61460-Q1 EVM User's Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 18: Bill Of Materials
The bill of material is shown Table 7-1 for Rev A of the LM61460EVM-AS-400K and LM61460EVM-FS-400K. Note that the BOM difference between the two EVM variants is the selection of the IC populated (U1). Table 7-1. LM61460EVM-xS-400K Rev A EVM Bill of Materials... - Page 19 Bill of Materials Table 7-1. LM61460EVM-xS-400K Rev A EVM Bill of Materials (continued) DESIGNATOR QUANTITY VALUE DESCRIPTION PACKAGE REFERENCE PART NUMBER MANUFACTURER SH-J1 Shunt, 100 mil, Gold plated, Black Shunt 2 pos. 100 mil 881545-2 TE Connectivity TP1, TP9...
-
Page 20: Revision History
Changes from Revision B (November 2019) to Revision C (December 2019) Page • Added plots to Section 6.1 ..........................13 • Added Section 6.2 ............................• Added Section 6.3 ............................LM61460-Q1 EVM User's Guide SNVU621D – MAY 2019 – REVISED JULY 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... - Page 21 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
