Attaching the speakers

The speakers can be installed as desired around the perimeter of the monitor using the supplied brackets, however
InFocus recommends installing the speakers across the bottom of the monitor.
speakers, proceed to the next section, "Attaching the HD video conferencing camera" on page 10.
1) Carefully place your monitor face-down on a clean, cushioned surface. Do NOT place the monitor on its back.

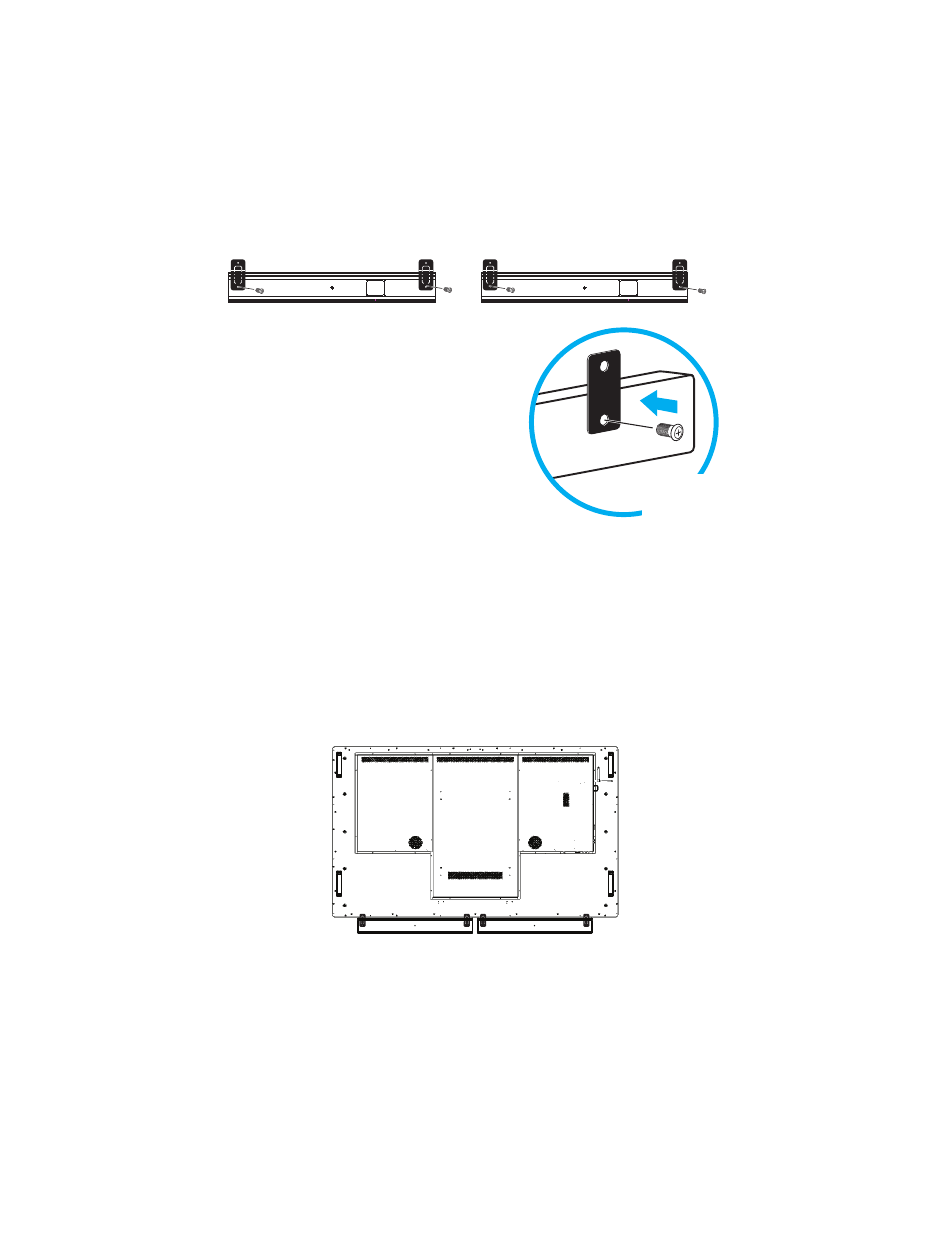

2) Attach the four small rectangular brackets to the speakers with the provided screws as shown below.
3) Align the rectangular brackets with the screw holes on the monitor and using the provided screws, secure the
speakers against the bottom of the monitor.
for different placement options.
INF8022 Series Hardware Guide
NOTE:
The bottom edge has multiple screw hole positions allowing
NOTE:
If you are not attaching the
4x
Page 9
