Omni Markers
The Tempo Omni Marker provides an improved method to electronically mark
and locate underground facilities. Unlike other marking devices that use just a
single coil, the Omni Marker contains three orthogonal tuned circuits. When
excited by any standard marker locator, these passive circuits produce a
uniform, spherical RF field in every direction. Because of their unique patented
design, the Omni Marker offers benefits that are superior to any other
electronic marking system. (See Figure 31)
Application
Power
Water
Sanitary
Telephone
Gas
Cable TV
Non-Potable
Omni Marker & Uni Marker Signals

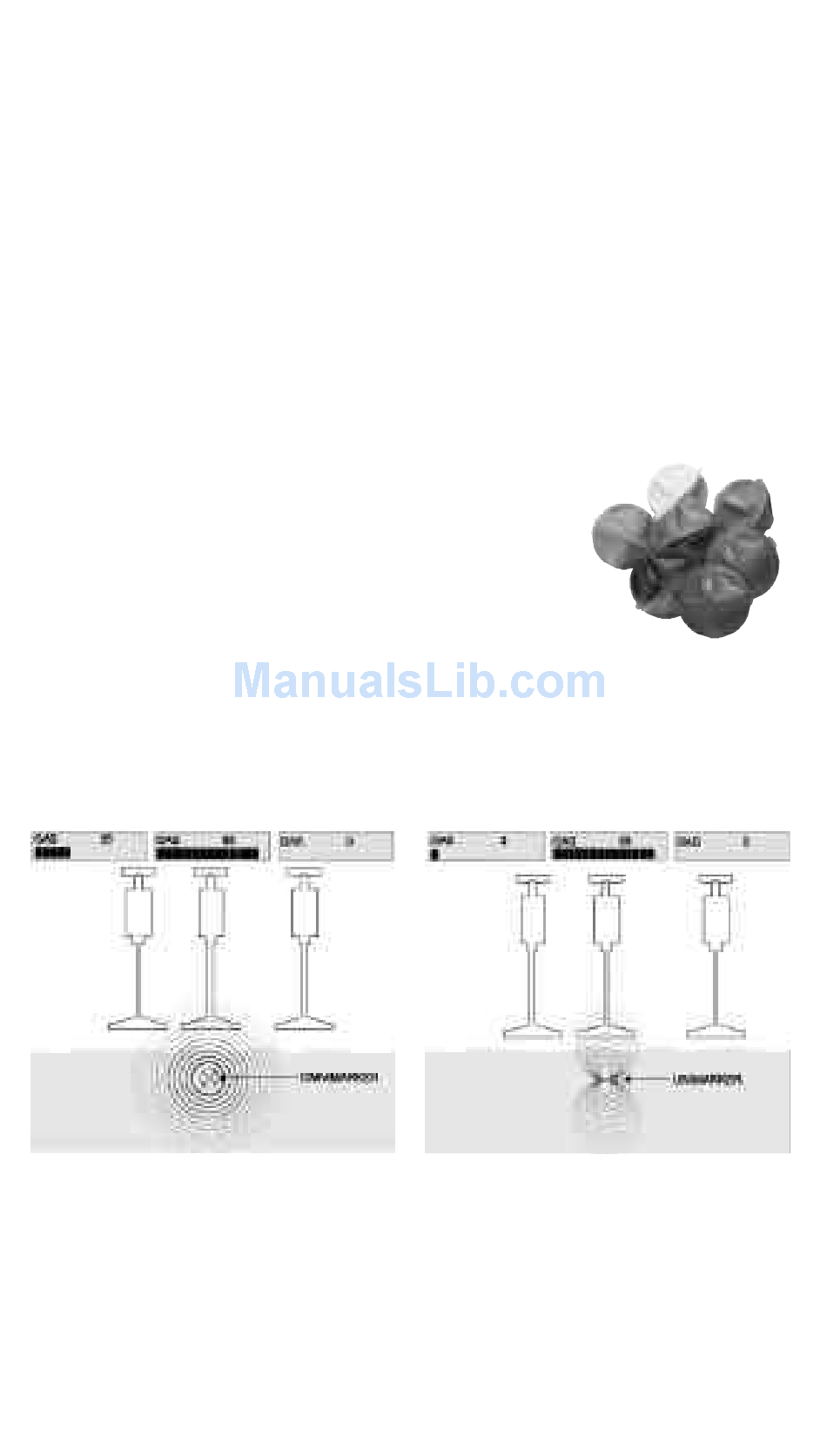

Omni Markers and Uni Markers each emit a distinct type of signal as shown in
Figures 32 and 33. Omni Markers produce a uniform, spherical RF field in
every direction, while Uni Markers emit dipole field signals primarily up and
down. (See Figures 32 - 33)
Fig. 32 - Omni Marker Signal
Headset
Model
361
Green
Orange
Yellow
Orange/Black
Purple
Color
Red
Blue
Green
Orange
Yellow
Orange/Black
Purple
UPC
60778
172 60773
173 60774
174 60775
175 60776
178
Model UPC
160 60765
161 60766
162 60767
163 60768
164 60769
165 60770
168
Fig. 33 - Uni Marker Signal
11
Fig. 31 - Omni Markers
