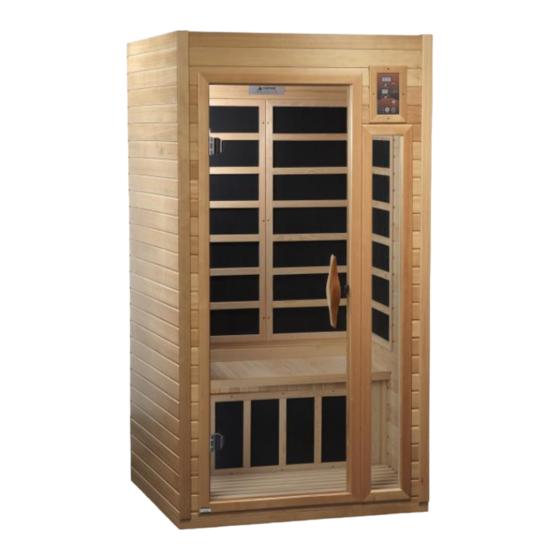

GoldenDesigns GDI6106 Owner's Manual

GoldenDesigns GDI6106 Owner's Manual

1-2 person sauna
Hide thumbs Also See for GDI6106:

Advertisement

Quick Links

GDI6106 / DYN9101
1 – 2 Person Sauna
OWNER'S MANUAL
FOR CERAMIC AND CARBON MODEL
SAUNAS FOR INDOOR USE ONLY
120VAC 15 AMP DEDICATED CIRCUIT
Sauna: Now you can enjoy the European secret for youthful vitality.
Carefully and thoroughly read this manual before using the sauna. We
recommend keeping this manual for regular review and future
reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GDI6106 and is the answer not in the manual?

Questions and answers

Summary of Contents for GoldenDesigns GDI6106

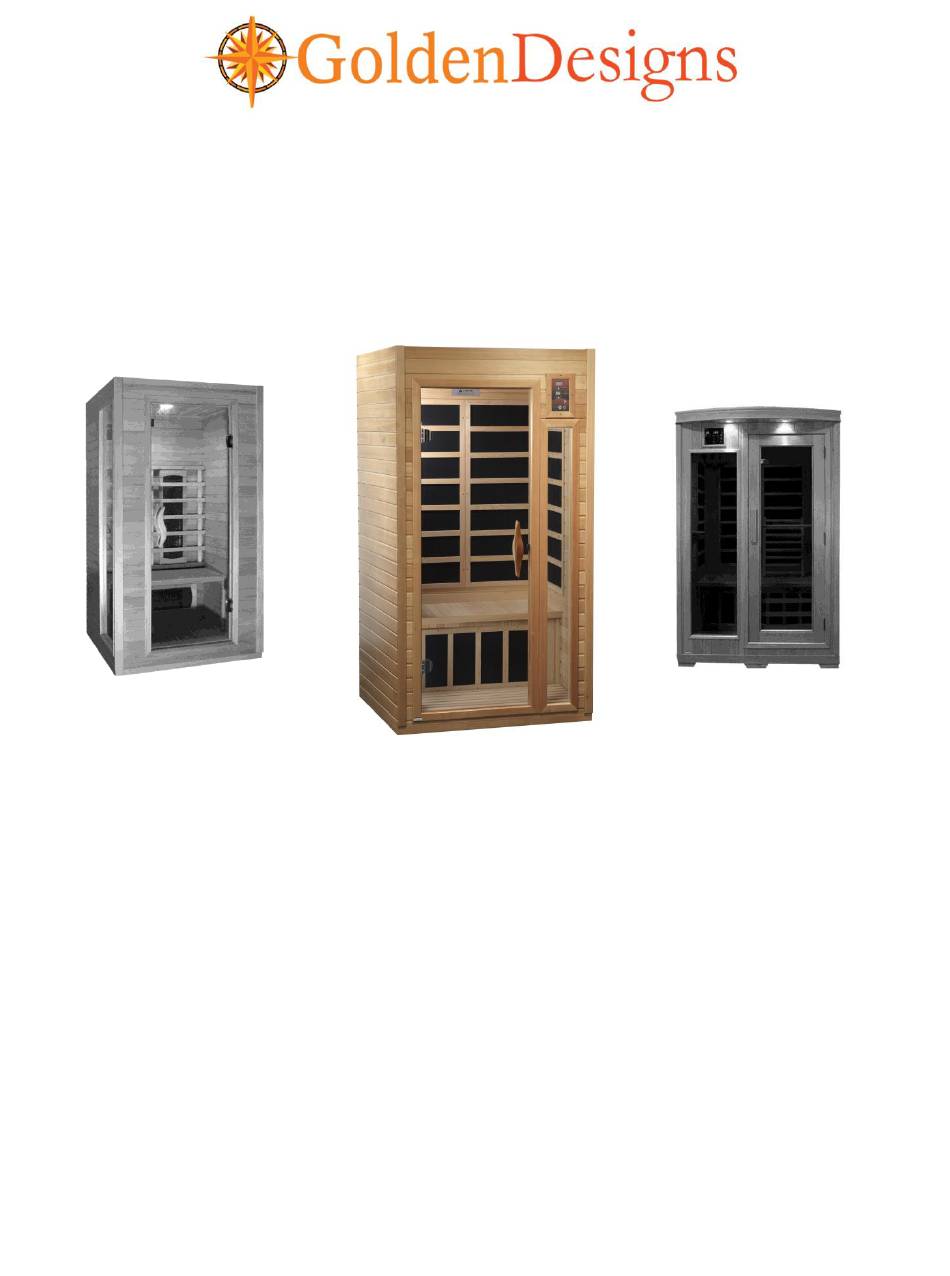

  • Page 1 GDI6106 / DYN9101 1 – 2 Person Sauna OWNER’S MANUAL FOR CERAMIC AND CARBON MODEL SAUNAS FOR INDOOR USE ONLY 120VAC 15 AMP DEDICATED CIRCUIT Sauna: Now you can enjoy the European secret for youthful vitality. Carefully and thoroughly read this manual before using the sauna. We recommend keeping this manual for regular review and future reference.
  • Page 2 *PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY* GDI-6106 *The above assembly diagrams are for quick reference visual guides only. All sauna models are not shown. Parts and accessories may vary.
  • Page 3 WHAT ARE INFRARED RAYS? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum.
  • Page 4 HOW IT WORKS Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into the body's tissue to produce perspiration. Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to perspire.
  • Page 5 Benefits include, but are not limited to: - Pain relief from Rheumatoid Arthritis - Relaxing muscle spasms - Increasing blood circulation - Cardiovascular conditioning - Clears rashes, acne - Reduces cellulite - Removes toxins and mineral waste - Reduces stress and fatigue - Enhances skin tone SAUNA MAINTENANCE Since infrared saunas do not require hot rocks, water, or steam to operate, they require very little...
  • Page 6: Table Of Contents

    TABLE OF CONTENTS Product Introduction Parts Description Assembly Instructions Operating the Sauna Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Troubleshooting Guide Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged. Any excessive vibrations during transport could cause damage to the heating elements.
  • Page 7: Parts Description

    PARTS DESCRIPTION A. FRONT OF SAUNA (see figure 1) B. INSIDE OF SAUNA (see figure 2) Figure 1 Figure 2 1) Door Handle 2) Tempered Glass Door 3) Ventilation Grid 4) Speaker 5) Reading Lamp 6) Control Panel 7) Temperature Sensor 8) Heat Emitter 9) Bench Panel 10) Back Protection Grid (Ceramic Model Saunas Only)
  • Page 8 I. Power Supply (Control Box) The POWER SUPPLY BOX is the control center of the sauna room. It is installed on the ROOF PANEL and has input/outputs connected to it as seen below. (see Figure 1) Power Supply 1 Power Supply 2 Figure 1 Figure 1A MAIN POWER - main power of the sauna room...
  • Page 9 III. MP3 Auxiliary Socket (Optional) The MP3 Auxiliary Socket allows you to connect a MP3 player or radio (with auxiliary out function) to the speakers for your listening pleasure. (see figure 4) Figure 4 IV. Buckles A. External Buckles The external buckles are used to connect the LEFT and RIGHT SIDE PANELS to the REAR PANEL.
  • Page 10 Figure 6 V. Panel Descriptions For easier installation, please understand and distinguish the differences between each panel. Floor Panel When the floor panel faces upward, you will find (2) raised moldings, one along what will be the front and one along what will be the rear of the sauna room. (see figure 7) Figure 7 Understanding The Difference Between The Top And Bottom Of The Wall Panels The (4) panels are in the upright position when the moldings are at the top.
  • Page 11: Assembly Instructions

    Figure Rear Panel The rear panel is the panel with the buckles. The buckles are mounted on the outside of the rear panel. (see figure 9) Figure Understanding The Difference Between The Inside And Outside Of The Rear Panel You will find the heat emitters on the inside of the rear panel. Assembly Instructions Choose a good location to install the sauna The location must be dry, leveled, and away from any source of water...
  • Page 12 Installing the FLOOR PANEL Place the FLOOR PANEL on the floor. Some models have wood braces that must be installed on the underside of the FLOOR PANEL. Please check to see if such wood braces were packed in the box containing the FLOOR PANEL. If so, mount according to the designated labels located on the underside of the FLOOR PANEL.
  • Page 13 Figure 11 Installing the FLOOR EMITTER PANEL (Carbon Models Only), BENCH EMITTER PANEL, BENCH, and REAR PANEL GRID (Ceramic Models Only) If your model is not equipped with the FLOOR EMITTER PANEL, then skip to 2. If your model is equipped with the FLOOR EMITTER PANEL, then place it on the floor towards the front of the sauna.
  • Page 14 Figure 14 Installing the ROOF PANEL The side with the power supply box faces upward. The edge nearest the power supply is the front of the ROOF PANEL. Be careful of the wires coming from the REAR PANEL when you set the ROOF PANEL down onto the panels. Feed the wires through the holes in the ROOF PANEL.
  • Page 15 Connect the CTRL plug from the power supply to the CTRL plug from the control panel. Then screw together. Connect the buzzer connection. (see figure 19)(not available on models with Bluetooth) Figure 16 Figure 16a Figure 17 Figure 18...
  • Page 16 (POWER SUPPLY 2) Connect the plugs according to their respective labels. (see Figure 18) You will need to connect the right and left speaker connectors, the MP3 connector, and the CTRL harness wire connector. Before Connecting After Connecting Figure 18 H.
  • Page 17: Operating The Sauna

    Putting on the ROOF COVER Place the ROOF COVER over the top of the sauna. Be cautious when pulling the power cord through the hole in the roof cover. Gently place the ROOF COVER onto the ROOF PANEL. When the edges are aligned, screw the ROOF COVER to the roof panel. (see figure Figure 21 Optional MP3 Shelf 1.
  • Page 18 Plug the sauna into the outlet receptacle. Press the POWER button once. The POWER light will come on, the TIME DISPLAY will show 90 (minutes), the TEMPERATURE DISPLAY will show 66 (degrees Celsius), and the control panel will flash. Press the up/down arrows under the TIME DISPLAY to adjust the amount of time you want the sauna to remain on.
  • Page 19 Control Panel (Standard)(Power Supply 1) Power On/Off: Press to control the main power of the sauna Power Indicator: Indicates the status of the sauna’s main power Work Start/Stop: Press to control the working functions of the sauna Work Indicator: Indicates the working status of the sauna Heat Indicator: Indicates the status of heating function Light: Press to control the lighting function Time Display: Displays the heating time of the sauna in minutes...
  • Page 20 Plug the sauna into the outlet receptacle. Press the button once. The POWER light will come on, the TIME DISPLAY will show 90 (minutes), the TEMPERATURE DISPLAY will show 66 (degrees Celsius), and the control panel will flash. Press the button and then the up/down arrows to adjust the amount of time you want the sauna to remain on.
  • Page 21: Tips For Using Your Sauna

    Bluetooth can be used on the sauna room. You first will need to pair your device with the sauna room. Open your device’s Settings Menu and then locate and open Bluetooth. You will find iSauna. Now you can pair your device with iSauna. If you are prompted to enter a passcode, try entering 0000 or 1234.
  • Page 22: Safety Instructions

    8) To utilize the sauna's heat therapy effect, put oil or treatment into your hair and wrap it with a towel. After your sauna session is over, rinse your hair thoroughly. Please follow the product directions for the intended benefits. 9) The peaceful and relaxed state rendered by a sauna session may help you to sleep easier and deeper.
  • Page 23: Safeguards For Your Sauna

    19) Please make sure the outlet power supply meets the specifications required. Failure to meet the requirements may cause safety risks. 20) Some sauna models are equipped with reading and roof lamps. Because the lamp temperature will become very hot once powered on, do not attempt to touch the lamp to avoid being burned. Do not attempt to touch it for at least 20 minutes after it has been powered off.
  • Page 24 2. Control Panel Malfunctioning Solution: The control panel will turn on, but not off and the displayed numbers flash. The issue may be a connection problem. Go up to the roof and locate the “CTRL” wire harness you connected when the roof was installed onto the sauna room. Disconnect the “CTRL” wire harness, check the pins to make sure they are straight and not bent, and firmly reconnect the “CTRL”...
  • Page 25: Warranty

    Limited Lifetime Warranty 5 Year Limited Warranty: Golden Designs, Inc. warranties the wood, structure, heating elements, and electronics against defects in material and workmanship for a period of 1 to 5 years from the original date of purchase. This sauna is for INDOOR use only. Placing your sauna outdoors will VOID this warranty.
  • Page 26 THIS PAGE IS INTENTIONALLY LEFT BLANK...
  • Page 27: Warranty Card

    WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
