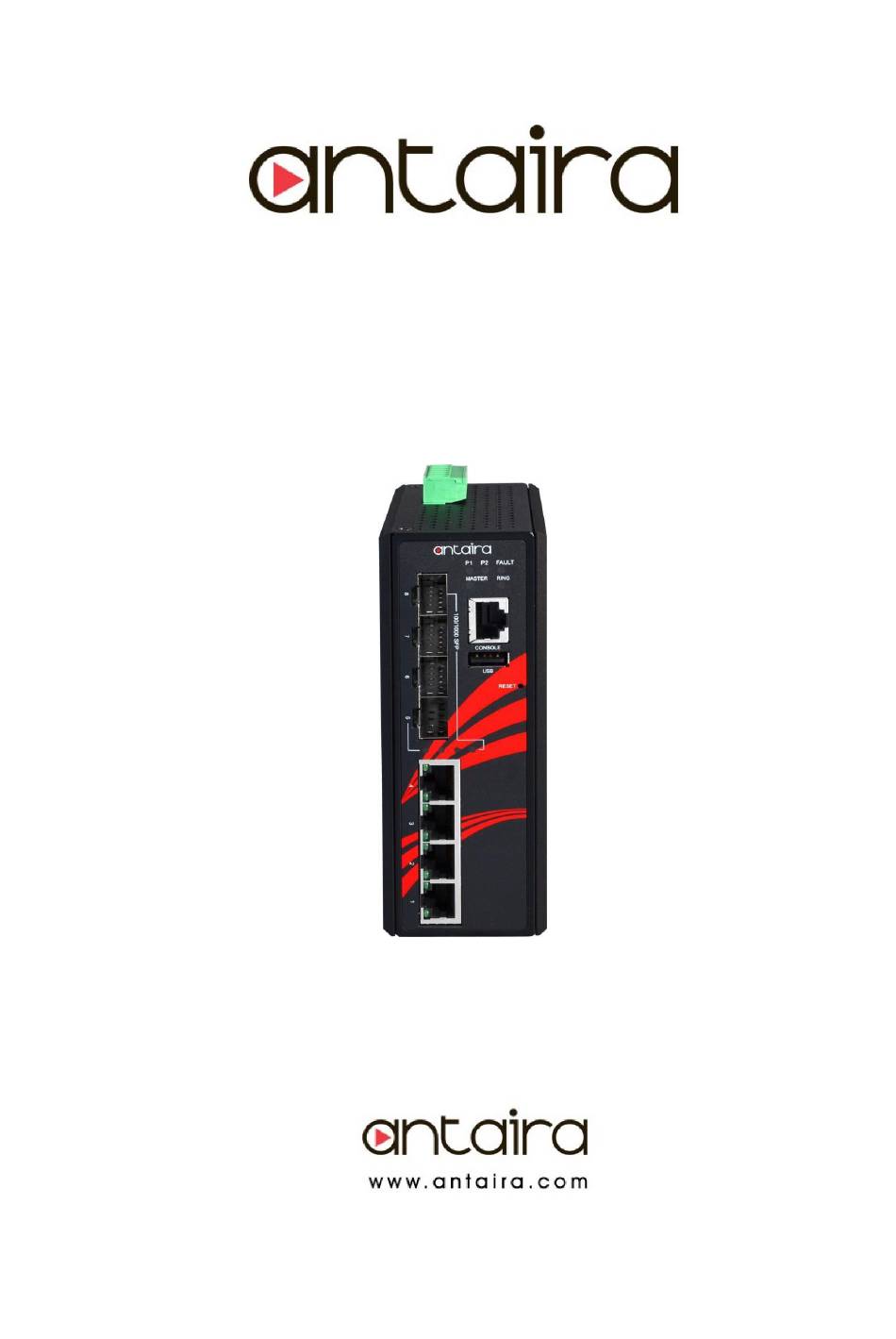

- Page 1 Antaira Technologies - Industrial Ethernet Switches LMP-0804G-SFP Series User Manual V1.0 LMP-0804G-SFP Series 8-Port Industrial PoE+ Gigabit Managed Ethernet Switches 4*10/100/1000Tx (30W/Port), 4*100/1000 SFP Slots Version 1.1 Hardware Manual...
- Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
- Page 3 Industrial Grade Gigabit PoE Managed Ethernet Switches Hardware Manual Version 1.1 (January 2018) This manual supports the following models: LMP-0804G-SFP LMP-0804G-SFP-T This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMP-0804G-SFP Series Hardware Manual V1.1 Table of Contents 1. Introduction ..............1 1.1 Product Overview 1.2 Product Software Features 1.3 Product Hardware Features 1.4 Package Contents 1.5 Safety Precaution 2. Hardware Description ..........4 2.1 Physical Dimensions... -
Page 5: Introduction
QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMP-0804G-SFP series is IP30 rated and DIN-rail mountable. There are also two wide operating temperature models for either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). -
Page 6: Product Hardware Features
Antaira Technologies - Industrial Ethernet Switches LMP-0804G-SFP Series Hardware Manual V1.1 IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256 group Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP, HTTPS, SSH/SSL, TFTP ... -
Page 7: Package Contents
Antaira Technologies - Industrial Ethernet Switches LMP-0804G-SFP Series Hardware Manual V1.1 1.4 Package Contents 1– LMP-0804G-SFP series: 8-port industrial gigabit PoE+ managed Ethernet switch, with 4*10/100/1000Tx (PSE 30W/Port) and 4*100/1000 SFP slots for fiber connectivity 1-Product CD ... -
Page 8: Hardware Description
LMP-0804G-SFP Series Hardware Manual V1.1 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMP-0804G-SFP series: 8-port industrial gigabit PoE+ managed Ethernet switches with 4*10/100/1000Tx ports and 4*100/1000Fx SFP slots. (W x D x H) is 54mm x 99mm x 142mm Figure 2.1... -
Page 9: Front Panel

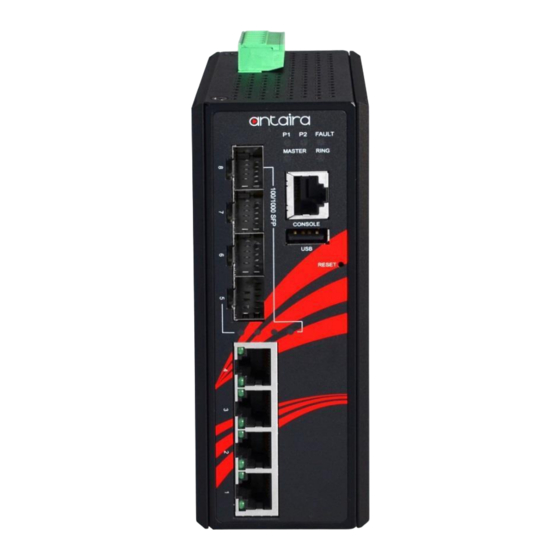

Antaira Technologies - Industrial Ethernet Switches LMP-0804G-SFP Series Hardware Manual V1.1 2.2 Front Panel The front panel of the LMP-0804G-SFP series industrial gigabit PoE+ managed Ethernet switch is shown below in Figure 2.2. 6-Pin Removal Terminal Block (Power Input) Grounding Screw LED for PWR1, PWR2, and Fault LAN Port # 5~8 –... -
Page 10: Reset Button
(Right LED) No powered-device attached or power supplying fails PoE Indicators Table 2.1 - LED Indicators for LMP-0804G-SFP Series Caution: "P1" is the abbreviation for "Power ", “P2” is for “Power 2”, “LNK” is for “Link”, and "ACT" is for "Activity". -
Page 11: Ethernet Ports
Antaira Technologies - Industrial Ethernet Switches LMP-0804G-SFP Series Hardware Manual V1.1 2.6 Ethernet Ports RJ-45 Ports RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX, or 1000Base-T connections. Auto MDI means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. -
Page 12: Cabling
Antaira Technologies - Industrial Ethernet Switches LMP-0804G-SFP Series Hardware Manual V1.1 The following figures show the cabling schematics for straight-through and crossover. Figure 2.4 Figure 2.5 Straight-Through Cable Schematic Crossover Cable Schematic 2.7 Cabling Use the four twisted-pair, category 5e, or the above cabling for the RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than... -
Page 13: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LMP-0804G-SFP Series Hardware Manual V1.1 2.9 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.8. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and forma normally open circuit. -
Page 14: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMP-0804G-SFP Series Hardware Manual V1.1 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on... -
Page 15: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LMP-0804G-SFP Series Hardware Manual V1.1 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall 1. -
Page 16: Hardware Installation
LMP-0804G-SFP Series Hardware Manual V1.1 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LMP-0804G-SFP series: 8-port industrial gigabit PoE+ managed Ethernet switches with 4*10/100/1000Tx (PSE: 30W/Port) ports and 4*100/1000 dual rate SFP fiber slots. -
Page 17: Maintenance And Service
Clean the device with dry soft cloth. 5. Technical Specifications Table 5.1 has the technical specifications for Antaira’s LMP-0804G-SFP series: 8-port industrial gigabit PoE+ managed Ethernet switch with 4*10/100/1000Tx (PSE: 30W/Port) and 4*100/1000 SFP slots. IEEE 802.3 10Base-T 10Mbit/s Ethernet IEEE 802.3u... - Page 18 Antaira Technologies - Industrial Ethernet Switches LMP-0804G-SFP Series Hardware Manual V1.1 IGMPv1/v2, SNMPv1/v2c/v3, TFTP, SNTP, SMTP, RMON, Protocol HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6 Data Process Store and Forward 14,880 pps for 10Base-Tx Ethernet port...
- Page 19 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
