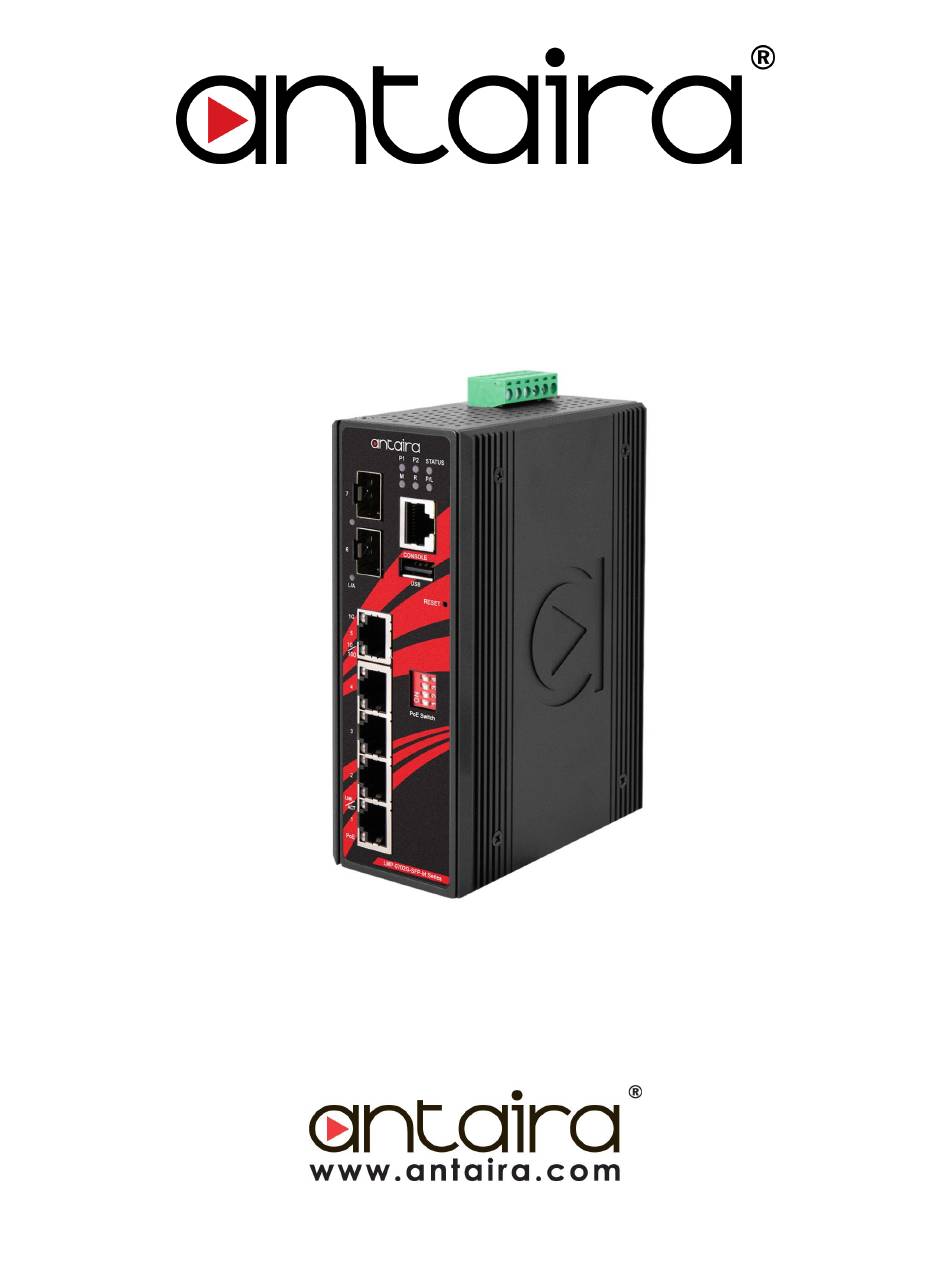

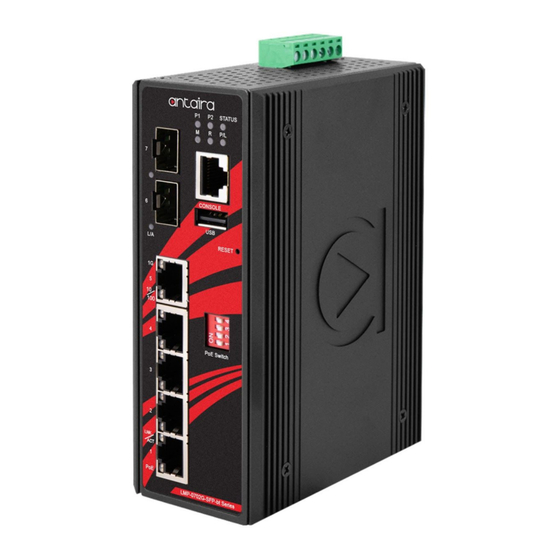

- Page 1 LMP-0702G-SFP-bt-V2 Series 7-Port Industrial Gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet Switch, with 4*10/100/1000Tx (90W/Port), 1*10/100/1000Tx, and 2*100/1000 SFP Ports Hardware Manual Version 1.0 (November 2020) ...
- Page 2 Antaira Technologies, LLC may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made ...
- Page 3 Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-bt-V2 Series - Hardware Manual - v1.0 Reorient or relocate the receiving antenna. ● ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is ...
- Page 4 Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-bt-V2 Series - Hardware Manual - v1.0 Industrial Ethernet Switches Industrial Grade Managed Ethernet Switches Hardware Manual Version 1.0 (November 2020) The manual supports the following models: ● LMP-0702G-SFP-bt-V2 LMP-0702G-SFP-bt-T-V2 ● ...
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-bt-V2 Series - Hardware Manual - v1.0 Table of Contents 1 Overview 1 1.1 Product Hardware Features 1 1.2 Product Software Features 2 1.3 Package Contents 2 1.4 Safety Precaution 3 2 Hardware Description 4 ... -
Page 6: Overview
90W/port, 1*10/100/1000Tx gigabit Ethernet port, and 2*100/1000 dual rate SFP slots for fiber connections. The LMP-0702G-SFP-bt-V2 series is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. There are also two wide operating ... -
Page 7: Product Software Features
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-bt-V2 Series - Hardware Manual - v1.0 1.2 Product Software Features Network Redundancy STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) for network redundancy Network Management Web UI based management, SNMP v1/v2/v3, Serial Console ... -
Page 8: Safety Precaution
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-bt-V2 Series - Hardware Manual - v1.0 1.4 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. The industrial Ethernet switch’s hardware specs, ports, cabling information, and wiring ... -
Page 9: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-bt-V2 Series - Hardware Manual - v1.0 2 Hardware Description 2.1 Physical Dimensions Figure 2.1 , below, shows the physical dimensions of this product series: (W x D x H) is 54mm x 99mm x 142mm ... -
Page 10: Front View Panel
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-bt-V2 Series - Hardware Manual - v1.0 2.2 Front View Panel Figure 2.2 , below, shows the front panel of the product series: Figure 2.2 - Front View Panel 2.3 Top View Panel ... -
Page 11: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-bt-V2 Series - Hardware Manual - v1.0 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific ... - Page 12 Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-bt-V2 Series - Hardware Manual - v1.0 On Connected to network, 10/100Mbps Flashing Networking is active Amber Off Not connected to network IEEE 802.3bt connection On (Single Signature PD Class 5~8 / Dual Signature ...
-
Page 13: Poe Port Led Indicators
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-bt-V2 Series - Hardware Manual - v1.0 2.5 PoE Port LED Indicators The LED light indicators on the PoE copper port can help the user know if and when an event immediately occurs or is happening. When the event is happening, you can verify the event from the Dual-color LED ... - Page 14 Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-bt-V2 Series - Hardware Manual - v1.0 Figure 2.6 - PoE Over Current LED Sequence **IEEE 802.3af/at: Amber **IEEE 802.3bt: Green After the PoE port is recovered from the PoE Port Over Current event, the PoE LED of the port will act ...
-
Page 15: Dip Switch
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-bt-V2 Series - Hardware Manual - v1.0 **IEEE 802.3af/at: Amber **IEEE 802.3bt: Green Dual PD Fail Event When one channel of the connected dual PD is failed, the failed channel will be shut down and the active ... -
Page 16: Relay Contact Alarm Warning
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-bt-V2 Series - Hardware Manual - v1.0 DIP Switch 3 Enable Port 3 PoE function Disable Port 3 PoE function DIP Switch 4 Enable Port 4 PoE function Disable Port 4 PoE function Table 2.2 - DIP Switch Functions ... -
Page 17: Ethernet Ports
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-bt-V2 Series - Hardware Manual - v1.0 2.9 Ethernet Ports RJ45 Ports ● RJ45 Ports (Auto MDI/MDI-X): The RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, or 1000Base-T connections. Auto MDI means that the switch can connect to another switch or workstation ... -
Page 18: Cabling
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-bt-V2 Series - Hardware Manual - v1.0 2.10 Cabling Use the four twisted-pair, category 5e, or the above cabling for the RJ45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ... -
Page 19: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-bt-V2 Series - Hardware Manual - v1.0 Figure 2.13 - Power Terminal Block Caution: Only use copper conductors, 1 25°C , tighten to 5 lbs. The wire gauge for the terminal block should range between 1 8~20 AWG . ... -
Page 20: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-bt-V2 Series - Hardware Manual - v1.0 Caution: The wire gauge for the terminal block should range between 12 ~ 24 AWG. If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate power fault ... -
Page 21: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-bt-V2 Series - Hardware Manual - v1.0 3 Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see F igure 3.1 to learn how to install the DIN-Rail on the switch. ... -
Page 22: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-bt-V2 Series - Hardware Manual - v1.0 Figure 3.2 - Insert the Switch on the DIN-Rail Figure 3.3 - Stable the Switch on the DIN-Rail 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown ... - Page 23 Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-bt-V2 Series - Hardware Manual - v1.0 Figure 3.4 - Remove DIN-Rail bracket from the Switch Below, in F igure 3.5 are the dimensions of the wall mounting bracket. Figure 3.5 - Wall Mounting Bracket Dimensions ...
-
Page 24: Hardware Installation
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-bt-V2 Series - Hardware Manual - v1.0 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the industrial Ethernet switch: C aution: This device is intended for indoor use. ... -
Page 25: Maintenance And Service
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-bt-V2 Series - Hardware Manual - v1.0 The Ethernet port’s (RJ45) LED on the industrial Ethernet switch will turn on when the cable is ● connected to the networking device. ● Please refer to the L ED Indicators section for LED light indication. ... - Page 26 Check for loose power connections, power losses or surges at the power outlet. ○ Please contact Antaira for technical support service if the problem still cannot be resolved. ● If the industrial switch LED indicators are normal and the connected cables are correct but the ...
-
Page 27: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-bt-V2 Series - Hardware Manual - v1.0 5 Technical Specifications Table 5.1 has the technical specifications for this product series. Technology Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error L2 Switching ... - Page 28 Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-bt-V2 Series - Hardware Manual - v1.0 Jumbo Frame 9.6Kbytes MAC Table Size 8K VLAN Group 4095 IGMP Group 1024 Port Interface 5*10/100/1000BaseTx w/4*PoE++ (90W/Port) Ethernet Ports Auto-negotiation speed, Full/Half duplex mode, and auto ...
- Page 29 (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) +48-22-862-88-81 (Antaira Asia Office) +886-2-2218-9733 Please report any problems to Antaira: www.antaira.com / upport@antaira.com www.antaira.eu / nfo@antaira.eu www.antaira.com.tw / nfo@antaira.com.tw Any changes to this material will be announced on the Antaira website. 24 ...
