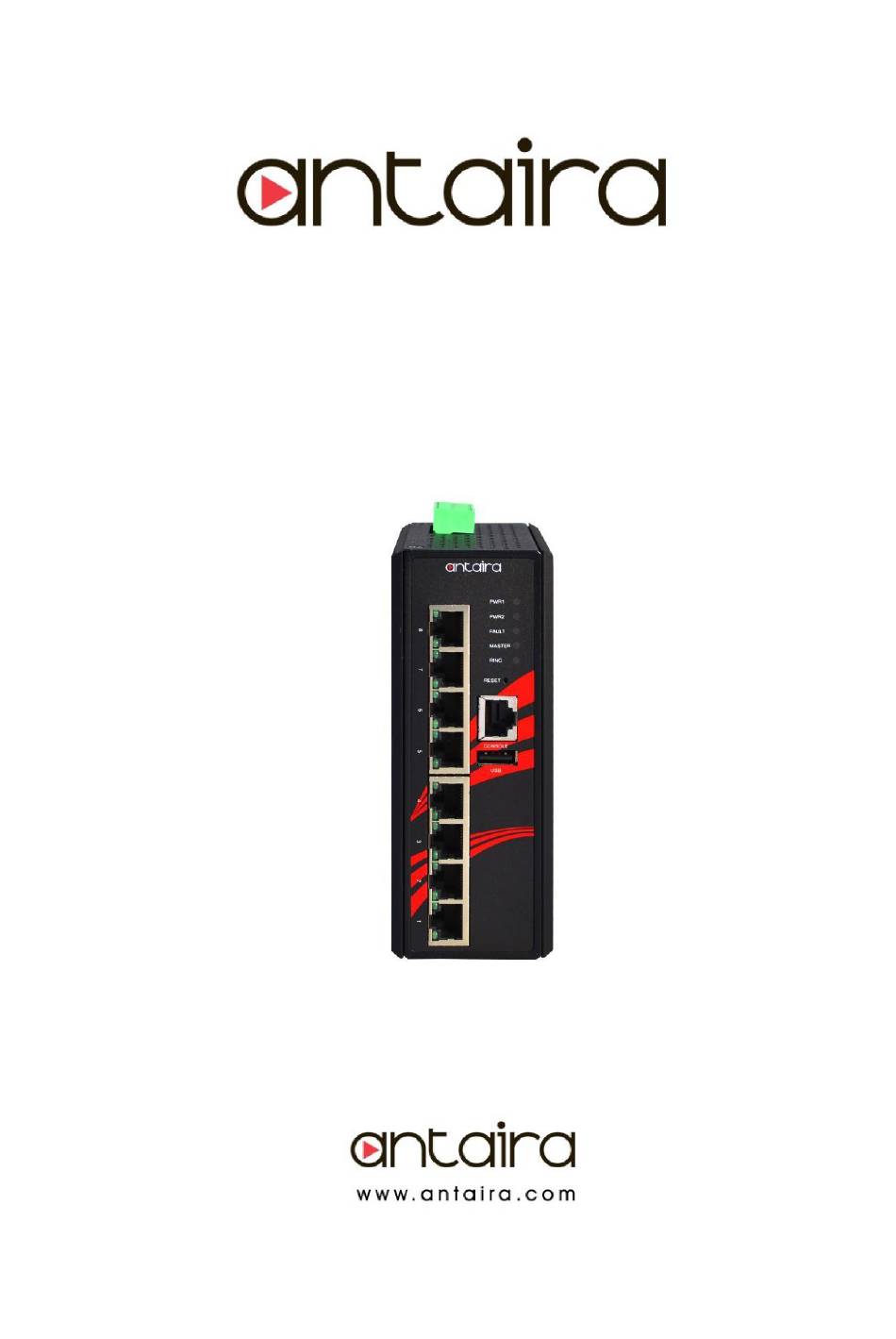

- Page 1 Antaira Technologies - Industrial Ethernet Switches LMP-0800G Series User Manual V1.0 LMP-0800G Series 8-Port Industrial PoE+ Gigabit Managed Ethernet Switches 8*10/100/1000Tx (30W/Port) Version 1.2 Hardware Manual...
- Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
- Page 3 Industrial Grade Gigabit PoE Managed Ethernet Switches Hardware Manual Version 1.2 (March 2018) This manual supports the following models: LMP-0800G LMP-0800G-T This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMP-0800G Series Hardware Manual V1.2 Table of Contents 1. Introduction ..............1 1.1 Product Overview 1.2 Product Software Features 1.3 Product Hardware Features 1.4 Package Contents 1.5 Safety Precaution 2. Hardware Description ............4 2.1 Physical Dimensions... -
Page 5: Introduction
SCADA systems or control networks. The LMP-0800G series is IP30 rated and DIN-rail mountable. There are also two wide operating temperature models for either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range (EOT: - 40°C to 75°C). -
Page 6: Product Hardware Features
Antaira Technologies - Industrial Ethernet Switches LMP-0800G Series Hardware Manual V1.2 HTTPS, SSH/SSL, TFTP MODBUS TCP for SCADA system integration Port Configuration Status, statistics, mirroring, rate limiting, event syslog Event Handling Event notification by Email: Cold/Warm Start, Power Failure, Authentication, SNMP trap and Fault Alarm Relay Output Software Upgrade via TFTP and HTTP... -
Page 7: Package Contents
Antaira Technologies - Industrial Ethernet Switches LMP-0800G Series Hardware Manual V1.2 1.4 Package Contents 1– LMP-0800G series: 8-port industrial gigabit PoE+ managed Ethernet switch, with 8*10/100/1000Tx (PSE 30W/Port). 1-Product CD 2-W all mounting brackets and screws ... -
Page 8: Hardware Description
LMP-0800G Series Hardware Manual V1.2 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMP-0800G series: 8-port industrial gigabit PoE+ managed Ethernet switches with 8*10/100/1000Tx ports. (W x D x H) is 54mm x 99mm x 142mm Figure 2.1... -
Page 9: Front Panel
Figure 2.2 The Front Panel of LMP-0800G Series 2.3 Top View Figure 2.3, below, shows the top panel of the LMP-0800G series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs 48~55VDC. Figure 2.3... -
Page 10: Led Indicators
(Right LED) No powered-device attached or power supplying fails PoE Indicators Table 2.1 - LED Indicators for LMP-0800G Series Caution: "P1" is the abbreviation for "Power ", “P2” is for “Power 2”, “LNK” is for “Link”, and "ACT" is for "Activity". -
Page 11: Ethernet Ports
Antaira Technologies - Industrial Ethernet Switches LMP-0800G Series Hardware Manual V1.2 2.6 Ethernet Ports RJ-45 Ports RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX, or 1000Base-T connections. Auto MDI means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. -
Page 12: Cabling
Antaira Technologies - Industrial Ethernet Switches LMP-0800G Series Hardware Manual V1.2 2.7 Cabling Use the four twisted-pair, category 5e, or the above cabling for the RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) in length. -
Page 13: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LMP-0800G Series Hardware Manual V1.2 Note The wire gauge for the terminal block should range between 12 ~ 24AWG If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to ... -
Page 14: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LMP-0800G Series Hardware Manual V1.2 3. After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of the DIN- Rail on to the track as shown below in Figure 3.2. - Page 15 Antaira Technologies - Industrial Ethernet Switches LMP-0800G Series Hardware Manual V1.2 Figure 3.4 Remove DIN-Rail Bracket from the Switch Below, in Figure 3.5 are the dimensions of the wall mounting bracket. Figure 3.5 Wall Mounting Bracket Dimensions...
-
Page 16: Hardware Installation
4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LMP-0800G series: 8-port industrial gigabit PoE+ managed Ethernet switches with 8*10/100/1000Tx (PSE: 30W/Port) ports. Caution: This device is intended for use indoor and at altitudes up to 2000 meters. -
Page 17: Technical Specifications
Clean the device with dry soft cloth. 5. Technical Specifications Table 5.1 has the technical specifications for Antaira’s LMP-0800G series: 8-port industrial gigabit PoE+ managed Ethernet switch with 8*10/100/1000Tx (PSE: 30W/Port) ports. IEEE 802.3 10Base-T 10Mbit/s Ethernet IEEE 802.3u... - Page 18 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
