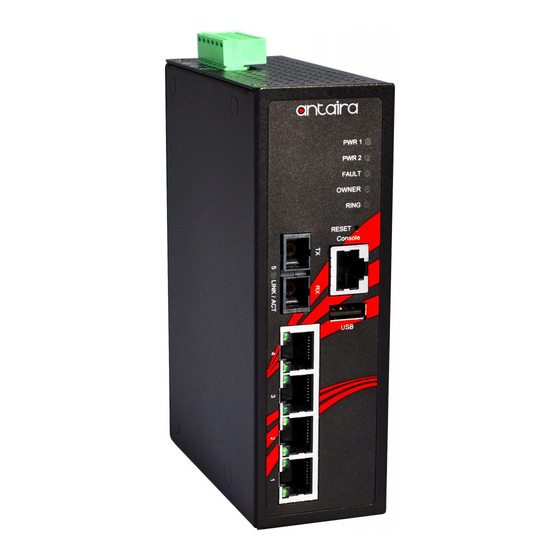

ANTAIRA LMP-0501 Series User Manual

5-port industrial poe+ managed ethernet switches 4*10/100tx (30w/port), 1*100fx, 48~55vdc power input
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

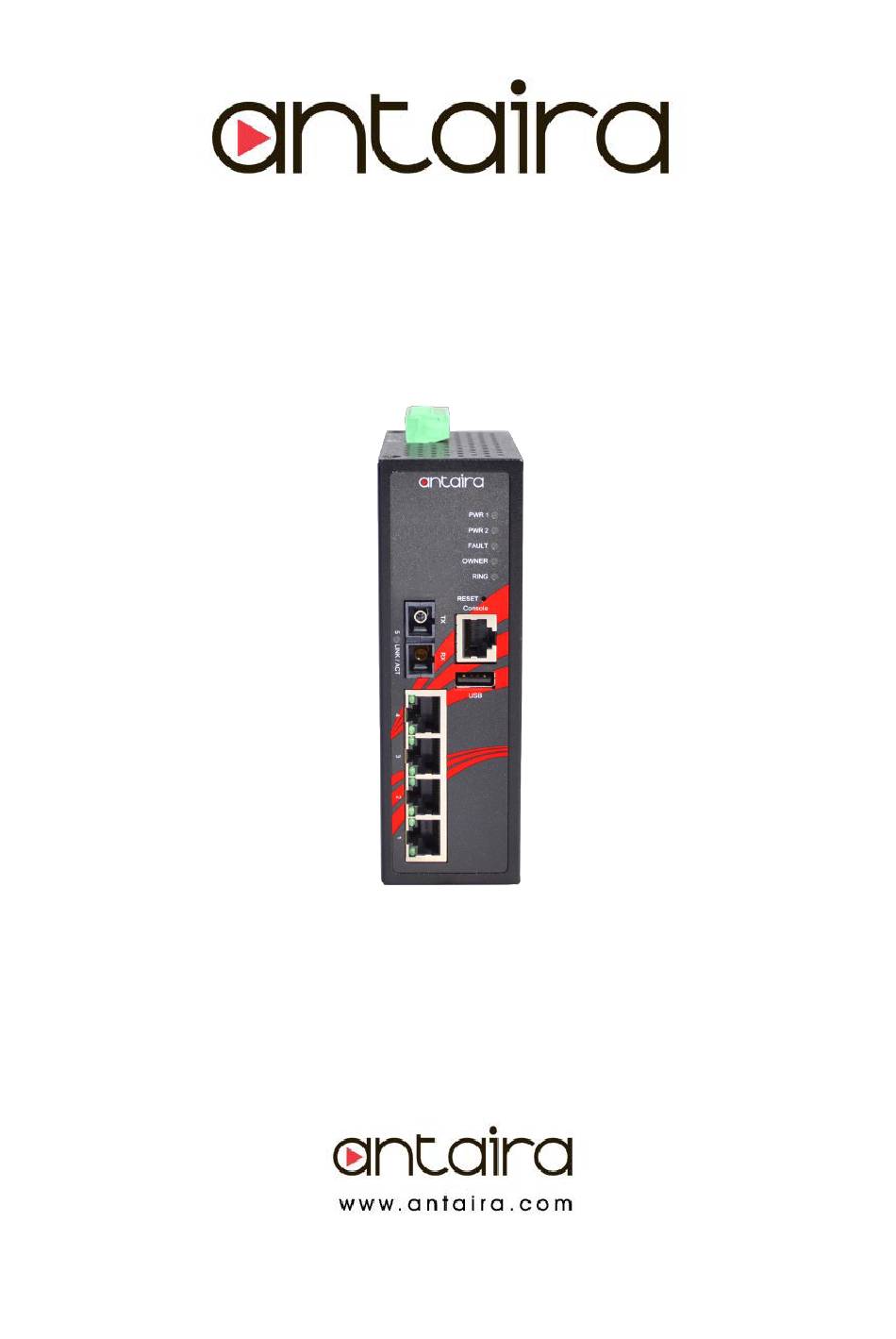

Antaira Industrial Ethernet Switches
LMP-0501 Series User Manual V1.0
LMP-0501 Series
5-Port Industrial PoE+ Managed Ethernet Switches
4*10/100Tx (30W/Port), 1*100Fx, 48~55VDC Power Input
User Manual
Version 1.0
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LMP-0501 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ANTAIRA LMP-0501 Series

Summary of Contents for ANTAIRA LMP-0501 Series

  • Page 1 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 LMP-0501 Series 5-Port Industrial PoE+ Managed Ethernet Switches 4*10/100Tx (30W/Port), 1*100Fx, 48~55VDC Power Input User Manual Version 1.0...
  • Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
  • Page 3 This manual supports the following models:   LMP-0501-M LMP-0501-S3   LMP-0501-M-T LMP-0501-S3-T   LMP-0501-ST-M LMP-0501-ST-S3   LMP-0501-ST-M-T LMP-0501-ST-S3-T This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).

  • Page 4: Table Of Contents

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 Table of Contents 1. Introduction ..............1 1.1 Product Overview ..........1 1.2 Product Software Features ........ 1 1.3 Product Hardware Features ....... 2 1.4 Package Contents ..........2 1.5 Safety Precaution ..........3 2.
  • Page 5 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 5.1 Web Console Configuration ......13 5.1.1 About Web-Based Management ....13 5.2 Basic Setting ............ 14 5.2.1 System Information ........14 5.2.2 Admin &Password ........15 5.2.3 IP Setting............. 16 5.2.4 System Time ..........
  • Page 6 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 5.6.4 MSTI Configuration ........34 5.7. 802.1Q VLAN ..........36 5.7.1 802.1Q VLAN settings ........ 36 5.7.2 802.1Q VLAN Settings ........ 37 5.8. IGMP Snooping ..........37 5.8.1 IGMP Settings ..........38 5.8.2 IGMP Snooping Status Table .....
  • Page 7 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 5.14 Maintenance ..........49 5.14.1 Upgrade ............ 49 5.14.2 Reboot ............50 5.14.3 Default ............50 5.15 Configuration ..........50 5.15.1 Save ............51 5.15.2 Backup & Store ......... 51 5.15.3 Auto Load & Backup ......... 52 5.16 Logout ............

  • Page 8: Introduction

    (SNMP). 1.1 Product Overview Antaira’s LMP-0501 series is a 5-port industrial PoE+ managed Ethernet switch that is embedded with four 10/100Tx Ethernet ports that support either IEEE802.3af or IEEE802.3at for a maximum of 30 watts per port, and one 100Fx (SC or ST type) fiber port in a multi-mode(2Km) or single-mode (30Km) option.

  • Page 9: Product Hardware Features

    Installation in pollution degree to environment  DIN-Rail and wall mount design 1.4 Package Contents  1– LMP-0501 series: 5-Port industrial PoE+ managed Ethernet switch, with 4*10/100Tx (30W/Port) RJ45 ports, and 1*100Fx (SC/ST) fiber ports.  1-Product CD  2-Wall mounting brackets and screws ...

  • Page 10: Safety Precaution

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 1.5 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. The industrial Ethernet switch’s hardware specs, ports, cabling information, and wiring installation will be...

  • Page 11: Hardware Description

    2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMP-0501 series: 5-port industrial PoE+ managed Ethernet switch with 4*10/100Tx (30W/Port), and 1*100Fx (SC/ST) fiber port. (W x D x H) is 46mm x 99mm x 142mm Figure2.1...

  • Page 12: Front Panel

    Figure2.2 The Front Panel of LMP-0501 Series 2.3 Top View Figure 2.3, below, shows the top panel of the LMP-0501 series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (48~55VDC). Figure2.3 Top Panel View of LMP-0501 Series...

  • Page 13: Led Indicators

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1.

  • Page 14: Ethernet Ports

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 2.5 Ethernet Ports  RJ-45 Ports RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling.

  • Page 15: Fiber Port

    LMP-0501 Series User Manual V1.0 2.6 Fiber Port Antaira’s LMP-0501 series provide model options to help support one major fiber optical port and models for either an SC or ST type fiber connector. The multi-mode up to 2 km, 1310 nm in 50/125 µm, 62.5/125 µm The single-mode in 30km, 1310 nm in 9/125 µm...

  • Page 16: Wiring The Power Inputs

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 2.8 Wiring the Power Inputs Please follow the steps below to insert the power wire. 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.7.

  • Page 17: Mounting Installation

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch.

  • Page 18: Wall Mounting

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. 1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws.

  • Page 19: Hardware Installation

    LMP-0501 Series User Manual V1.0 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LMP-0501 series: 5-port industrial PoE+ managed Ethernet switch with 4*10/100Tx (30W/Port) RJ45 ports and 1*100Fx (SC/ST) fiber port. Installation Steps 1. Unpack the industrial Ethernet switch from the original packing box.

  • Page 20: Web Management

    This section introduces the configuration by web browser. 5.1.1 About Web-Based Management All of Antaira’s industrial managed switches are embedded with HTML web console interfaces that have a flash memory on the CPU board. It is a “user friendly” design with advanced management features that allow users to manage the switch from anywhere on the network through any Internet browser, such as Internet Explorer (version 9.0 or above is recommended),...

  • Page 21: Basic Setting

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 Key in the default username: admin and password admin. 5. Click the “Login” button, then the main (status) page of the Web Console will appear as below Figure 5.2. The online image of the switch will display the real-time ports connection status.

  • Page 22: Admin &Password

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 Terms Value Description Factory Default: Switch *Users can assign any name label to identify this managed node. By convention, a domain name is a text string drawn from System Name the alphabet (A-Z, a-z), digits (0-9), minus sign (-). No space characters are permitted as part of a name.

  • Page 23: Ip Setting

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 Terms Value Description New Password Users can assign a new password, and the maximum string length allowed is 0 to 31 characters. Confirmation Re-type the new password. Click “Apply” to save changes.

  • Page 24: System Time

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 enabled, the user is not required to assign the Gateway. Assign the DNS IP address Click the “Apply” button to save changes. Figure 5.8 – IP Setting Information Description 5.2.4 System Time Figure 5.9 –...

  • Page 25: Port Management

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 5.3 Port Management 5.3.1 Port Status The following information provides the current port status. Figure 5.11 – Port Status Interface 5.3.2 Port Configuration Users can assign or insert a “value/label” for each port under each “Port Name” box; enable or disable each port function;...

  • Page 26: Poe (Power-Over-Ethernet)

    Figure 5.13 – Port Configuration Description 5.4PoE (Power-over-Ethernet) LMP-0501 series is one of Antaira’s industrial PoE+ managed switches that has four built-in IEEE802.3at complaint ports, and each PoE port supports PoE output power up to a maximum of 30W per port. It is also backward compatible with IEEE 802.af to support any standard PoE powered devices (PD).

  • Page 27: Ping Alarm

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 Terms Value Description Port No. PoE port number Any PoE port will automatically detect any powered device (PD) that Status is connected and it will display the situation. Users can use the dropdown box to enable or disable any PoE port Mode function.

  • Page 28: Poe Schedule

    Antaira is proud to introduce and implement the Ethernet Ring Protection Switching (ERPS) protocol as a standard ring solution for network redundancy with all new industrial managed Ethernet switches.

  • Page 29: Erps Status

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 Ethernet Ring Protection Switching (ERPS), defined in ITU-T G8032, implements a protection switching mechanism for Ethernet traffic in a ring topology. By performing the ERPS function, potential loops in a network can be avoided by blocking traffic to flow to the ring protection link (RPL) to protect the entire Ethernet ring.

  • Page 30: Erps Configuration

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 5.5.2 ERPS Configuration Below, Figure 5.19, shows the ERPS configuration interface. Figure 5.19 – ERPS Configuration Interface Terms Value Description “Enable” or “Disable” ERPS protocol Protocol ERPS ring port 0, can be mapped to port 1 – port 6.

  • Page 31: Before Configuring Erps

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 ERPS Channel ID, ranges from 1 to 4094. It’s a channel to send PDUs of Channel ERPS. Revertive Set to Revertive (yes) or Non-revertive (no). The revertive mode works only under scenario A at the RPL Owner node.
  • Page 32 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 When the RSTP/CIST Configuration page shows up, set “Mode” to “Disable” as Step 3: shown in Figure 5.22. Figure 5.22 – RSTP/CIST Configuration Interface Press the “Apply” button in the lower right corner (Figure 5.23).

  • Page 33: Scenario A - Rpl Configured Architecture26

    ITU-T G.8032 defines three roles in ERPS, which are “RPL Owner Node”, “RPL Neighbor Node”, and “Normal Node”. Below are two scenarios that describe how to configure the ERPS using Antaira’s industrial managed Ethernet switches. Users can reference it to configure the managed switch as an RPL-configured architecture shown in Figure 5.24 or as a non-configured architecture shown...
  • Page 34 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 [RPL Owner Node] There is only one RPL owner node that should be set in a ring network. In order to set up the RPL owner node, choose a switch and enable the “Protocol” under the ERPS configuration interface, and then follow the steps below using Figure 5.25 as an example.
  • Page 35 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 [RPL Neighbor Node] Users should choose a second managed switch that is adjacent to the first managed switch and set it up as the RPL neighbor node. For configuration, users should login to the second managed switch’s ERPS configuration interface and choose a specific port number under...

  • Page 36: Scenario B - Non-Configured Architecture29

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 [Normal Node] Users should setup the rest of the managed switches’ by setting the Role” for both “Ring Port 0 and 1” as “Normal Node” as shown above in Figure 5.27. Please be sure no duplicate port number has been chosen within a managed switch’s ERPS ring setting, the incorrect...

  • Page 37: Spanning Tree

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 Caution: Before enabling any ERPS protocols on any of the Ring Nodes, please DO NOT connect all the switches to form a loop (ring) network just yet. There should be at least one ring port left unplugged until all nodes in the topology are ready.

  • Page 38: Rstp Status

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 IEEE802.1s. It allows different VLANs to travel along separate instances of spanning tree. Unlike STP and RSTP, MSTP eliminates the needs for having different STP for each VLAN. Therefore, in a large networking environment that employs many VLANs, MSTP can be more useful than legacy STP.
  • Page 39 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 Terms Value Description Users can select RSTP or MSTP function to be enabled or Mode disabled before configuring the related parameters. A value used to identify the root bridge. The bridge with...

  • Page 40: Msti Status

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 the port as an edge port, set the port to “True”. The port includes the STP mathematic calculation. Admin Non STP True is not including STP mathematic calculation. False is including the STP mathematic calculation.

  • Page 41: Msti Configuration

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 5.6.4 MSTI Configuration Users can display the MSTI root status and port status by selecting the “Instance ID” number from 1 to 15 by clicking on the dropdown box from the “MSTI Status” interface.
  • Page 42 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 Click “Apply” button to save changes. Figure 5.35 – MSTI Configuration –Terms & Value Description Figure 5.36 – MSTI Port Configuration Interface Terms Value Description User can select Instance Tab #1~#15 to configure each Instance Tabs MSTI port “Cost”...

  • Page 43: 802.1Q Vlan

    PVID. All of Antaira’s industrial managed switches’ have a default VLAN setting set to “none” for each port, so the users can login to the VLAN setting interface to create a VLAN Group name and choose “Tag”...

  • Page 44: 802.1Q Vlan Settings

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 5.7.2 802.1Q VLAN Settings Figure 5.39 – 802.1Q VLAN Settings Interface Terms Value Description PVID Users can assign a Port VLAN ID for each port Users can choose any port be “Tagged” or “Untagged”.

  • Page 45: Igmp Settings

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 receive and filter all the multicast traffic generated in the network. IGMP has 3 versions, IGMP v1, v2, and v3, and support query group up to 256 groups. 5.8.1 IGMP Settings Figure 5.41 –...

  • Page 46: Qos (Traffic Prioritization)

    Traffic Prioritization includes three modes: port base, 802.1p/COS, and TOS/DSCP. By using the traffic prioritization function, users can classify the traffic into four classes for differential network applications. All of Antaira’s industrial managed switches support the four priority queues. 5.9.1 QoS Classification...

  • Page 47: Cos Mapping

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 Terms Value Description Users can set it as “Weighted” or “Strict”. Weighted Mode: An 8, 4, 2, 1 weighting is applied to each round robin priority queue. Queue Scheduling Strict Mode: It gives egress queues with higher priority to be transmitted first before lower priority queues are serviced.

  • Page 48: Tos Mapping

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 Terms Value Description Users can assign each port a CoS value from 0 to 7. According to the IEEE 802.1p, users can define each CoS Cos Value (0~7) value in 4 priority queues: from Low to Normal, Medium, and High.

  • Page 49: Port Mirroring

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 5.10 Port Mirroring Enable or disable the mirroring feature. When enabled, a copy of matched frames will be mirrored to the destination port specified in the port mirroring interface. Figure 5.50 – Port Mirroring Configuration Interface...

  • Page 50: Snmp

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 5.11 SNMP Simple Network Management Protocol (SNMP) is the protocol developed to manage nodes (servers, workstations, routers, switches and hubs etc.) on an IP network. SNMP enables network administrators to manage network performance, find and solve network problems, and plan for network growth.

  • Page 51: Snmp Trap Setting

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 5.11.2 SNMP Trap Setting Figure 5.54 – SNMP Trap Setting Terms Value Description Enable SNMP Trap Enable theSNMP Trap function by checking the box. Users could insert the Server IP address as Trap Trap Destination IP Destination IP info.

  • Page 52: Syslog Setting

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 5.12.1 Syslog Setting The SYSLOG is a protocol to transmit event notification messages across networks. Figure 5.56 – Syslog Setting Interface Terms Value Description Disable: Disable SYSLOG. Local Only: Log to local system.

  • Page 53: 2System Event Log

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 5.12.2System Event Log Users can view and display the system event log by clicking the “Apply” button on the right bottom corner of the interface. Then, the system event logs will display within the SYSLOG LIST window.

  • Page 54: Event Selection

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 Terms Value Description E-mail Alert Enable/Disable transmission system warning events by e-mail. SMTP Server Address Setting up the mail server IP address. Sender E-mail Set up the email account to send the alert.

  • Page 55: Fault Alarm

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 5.12.5 Fault Alarm When any selected fault event has occurred, the fault LED of the switch’s front panel will light up and the electric relay will signal at the same time. Users can check the checkbox of any “Fault Alarm”...

  • Page 56: Mac Table Configuration

    Antaira is continuously developing new functions and features for specific application requirements for the industrial managed switches. Users can download the latest firmware from Antaira’s website and store it within their local PC, server, or USB drive. Figure 5.66 – Firmware Upgrade Interface...

  • Page 57: Reboot

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 Terms Value Description Users can click the “Choose File” button to select the latest FIRMWARE UPGRADE firmware from the local PC, or Server; then click the “Upgrade” button to have the switch be updated.

  • Page 58: Save

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 configuration that has been saved within the USB storage device, or users can utilize this function to “Auto Load” the configuration to other switches, and those switches would require the same configuration settings.

  • Page 59: Auto Load & Backup

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 Terms Value Description CONFIGURATION MANAGEMNET By clicking the “Backup” button, it allows the user to Backup Configuration backup the switch configuration setting to their local PC or server. Users can click the “Choose File” button to select the...

  • Page 60: Logout

    6. Command Line Interface Management 6.1 About CLI Management Besides WEB-based management, LMP-0501 series also supports CLI management. Users can use the console or telnet to manage the switch by CLI. CLI Management by RS-232 Serial Console (115200, 8, none, 1, none) Before configuring with an RS-232 serial console, use an RJ45 to DB9-F cable to connect the switches’...
  • Page 61 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 Follow the steps below to access the console via RS-232 serial cable. Step 1: From the Windows desktop, click on Start -> Programs -> Accessories -> Communications -> Hyper Terminal. Step 2:...
  • Page 62 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 Step 3: Select the COM port number. Step 4: The COM port property settings are as follows: 115200 for “Bits per second”, 8 for “Data bits”, None for Parity, 1 for “Stop bits” and none for “Flow control”.
  • Page 63 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 Step 5: The Console login screen will appear. Use the keyboard to enter the Username and Password, then press “Enter”. CLI Management by Telnet Users can use “TELNET” to configure the switches.
  • Page 64 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 Step 2: The Login screen will appear. Use the keyboard to enter the Username and Password, and then press “Enter” Commander Groups Command Mode Group hostname [Switch] configure system location [none]...
  • Page 65 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 show ip default-gateway configure show ip name-server configure show ip mode configure ntp time update configure ntp client enable ntp client timeserver [ip_addr_string] configure clock set [hh:mm:ss] [day] [month] [year] configure...
  • Page 66 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 name [string] interface shutdown interface no speed interface no duplex interface no flowcontrol interface no name interface no shutdown interface show speed interface show duplex interface show flowcontrol interface show administrate...
  • Page 67 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 no switchport ethertype interface show name vlan show member vlan show vlan-mode configure show vlan-group configure show switchport pvid interface show switchport filter interface show switchport provider interface show switchport ethertype...
  • Page 68 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 power inline auto interface power inline never interface power inline delay interface power inline apply interface power inline priority [priority_value] interface power inline max [watts] interface power inline status interface power inline power-supply [watts]...
  • Page 69 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 no spanning-tree hello-time configure no spanning-tree max-age configure no spanning-tree mst [instance_ID] priority configure no spanning-tree cost interface no spanning-tree port-priority interface no spanning-tree link-type interface no spanning-tree auto-edge interface no spanning-tree admin-edge...
  • Page 70 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 show spanning-tree mst instance [instance_ID] vlan configure show spanning-tree mst [instance_ID] priority configure show spanning-tree mst [instance_ID] cost interface show spanning-tree mst [instance_ID] port-priority interface event smtp power1 enable configure event smtp power2 enable...
  • Page 71 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 no event syslog warm-start configure no event syslog authentication-failure configure no event syslog erps-change configure no event syslog interface [INTERFACE_NAME] [up | down] configure show event syslog power1 configure Event show event syslog power2...
  • Page 72 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 smtp authentication password [GMAIL_PASS] configure smtp receive [1 | 2 | 3 | 4] [e-mail_address] configure no smtp enable configure no smtp sender configure SMTP no smtp subject configure no smtp server address...
  • Page 73 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 snmp trap host [DESTINATION_IP] configure snmp trap version [1 | 2c | 3] [traps | inform] configure snmp trap community [trap_community_name] configure snmp trap inform retry [retry_time] configure snmp trap inform timeout [retry_interval]...
  • Page 74 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 MIRROR monitor source [rx | tx | both] [port_list] configure monitor destination [dest_port_number] configure no monitor enable configure no monitor source configure no monitor destination configure show monitor enable configure show monitor source...
  • Page 75 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 no igmp snooping querier configure no igmp snooping fast-leave interface show igmp snooping mdb configure show igmp snooping all configure show igmp snooping fast-leave interface Save and Load Configuration File to/from USB CLI: enable ->...
  • Page 76 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 3. CLI :enable -> configure terminal ->copy usb startup-config (path) Fill in the folder and filename behind the “copy usb startup-config” command. Ex: file1, / folder /file2. 4. CLI : enable -> configure terminal ->copy usb firmware (path) Fill in the folder and filename behind the “copy usb startup-config”...
  • Page 77 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 CLI : enable -> configure terminal -> Syslog mode (usb or all) Select USB or ALL, it can auto save the waning file to USB. And the file name is “message”.

  • Page 78: Technical Specifications

    Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 7. Technical Specifications Table 7.1 has the technical specifications for Antaira’s LMP-0501 series: 5-port industrial PoE+ managed Ethernet switch with 4*10/100Tx (30W/Port), and 1*100Fx (SC/ST). IEEE 802.3 10Base-T 10Mbit/s Ethernet IEEE 802.3u 100Base-Tx, 100Base-Fx, Fast Ethernet IEEE 802.3x...
  • Page 79 Antaira Industrial Ethernet Switches LMP-0501 Series User Manual V1.0 50/125um ~ 62.5/125um; or Single-mode in 30Km - 9/125um ~ 10/125um. Wavelength 1310nm (Multi or Single mode) RS232 Serial 1*RS232 in RJ45 connector with console cable, Console 115.2Kbps, 8,N,1 Configuration Backup 1*USB 2.0...
  • Page 80 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
