SMART Board D685ix Manual
  1. Manuals
  2. Brands
  3. SMART Manuals
  4. Whiteboard
  5. SMART Board D685ix
  6. Manual

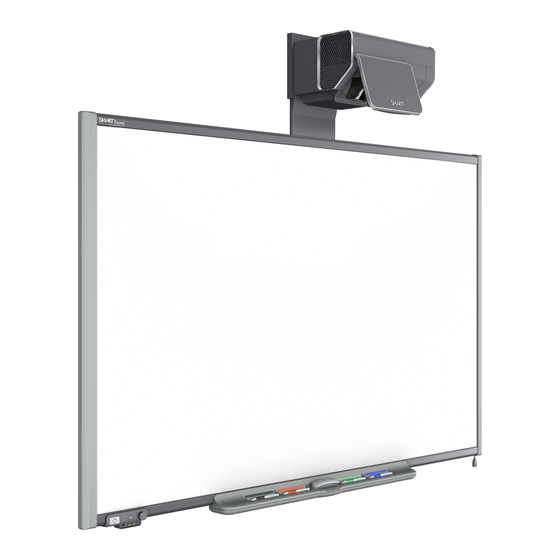

SMART Board D685ix Manual

Interactive whiteboard systems
Hide thumbs

Advertisement

Quick Links

Download this manual
SMART Board™ 685ix, D685ix and 685ix-MP
SMART Board™ 685ix, D685ix and 685ix-MP
interactive whiteboard systems
interactive whiteboard systems
For cautions, warnings and other important product information, see Important Information for SMART
Board 685ix and D685ix Interactive Whiteboard Users (smarttech.com/kb/137499).

Advertisement

loading
Need help?

Need help?

Do you have a question about the SMART Board D685ix and is the answer not in the manual?

Questions and answers

Related Manuals for SMART SMART Board D685ix

Summary of Contents for SMART SMART Board D685ix

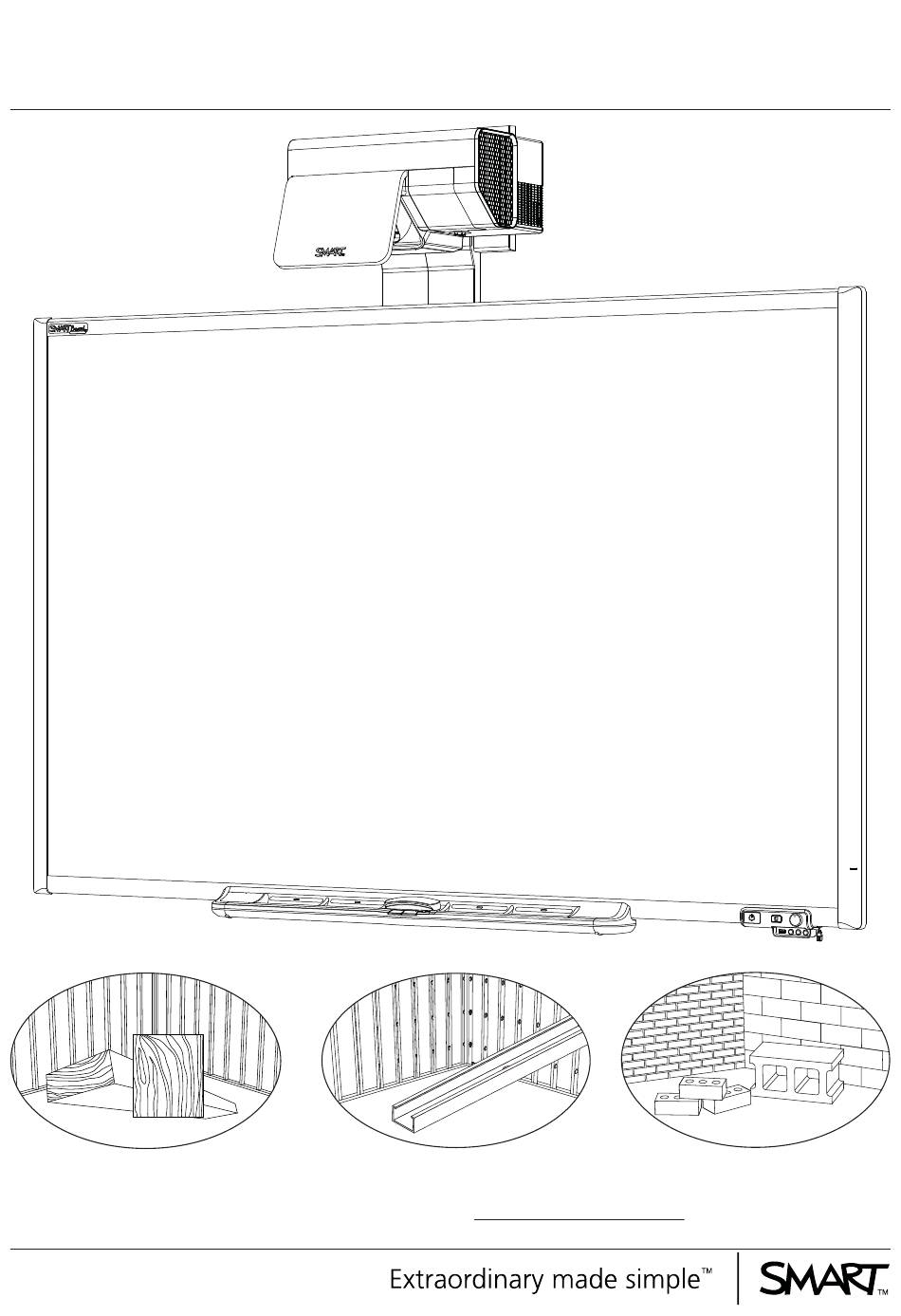

  • Page 1 SMART Board™ 685ix, D685ix and 685ix-MP SMART Board™ 685ix, D685ix and 685ix-MP interactive whiteboard systems interactive whiteboard systems For cautions, warnings and other important product information, see Important Information for SMART Board 685ix and D685ix Interactive Whiteboard Users (smarttech.com/kb/137499).
  • Page 2 99-00982-21 B0...
  • Page 3 í kami a st ny s ur itého druhu zdiva. V p ípad , že pot ebujete nainstalovat váš produkt SMART na st ny ze železobetonu, st ny ze sádrokartonu, st ny neobvyklé konstrukce a jiné druhy st n, obra te se na váš místní...
  • Page 4 Au cas où vous deviez installer votre produit SMART sur un mur en béton armé, sur un mur de lattis, sur un mur de structure inhabituelle ou un autre type de mur, consultez votre service de l'urbanisme pour qu'il vous fournisse des instructions, des recommandations et vous dise comment travailler en toute sécurité.
  • Page 5 Seu produto SMART inclui instruções e peças para instalação em paredes de metal e viga de madeira e somente em determinados tipos de parede de alvenaria.
  • Page 6 SMART Board™ 685ix or D685ix interactive whiteboard ×2 a (×12) b (×12) c (×2) d (×2) 65 5/8" (166.9 cm) 49 1/4" 77 1/2" (125.1 cm) (196.9 cm) ×7 ×7 ×2 SB685ix-MP SMART GoWire™ Auto-Launch Cable (GW-MP, GW-MPP) SMART Go-Wire™ auto launch cable...
  • Page 7 SMART UX60 projector system CR-2025 Vol. c (×7) e (×6) f (×5) g (×7) h (×3) j (×3) k (×1) m (×4) n (×1) smarttech.com/kb/137396 99-00982-21 B0...
  • Page 8 1/4" (6 mm) ×2 1/2” (13 mm) (10 mm) y (×12) z (×12) 99-00982-21 B0...
  • Page 9 All of the lines that you draw to install the SB600ix must be straight and level on a plumb wall. You must install the unit straight, level and plumb for it to operate properly. Všechny áry, které p i instalaci nakreslíte, musí být rovné a v rovnováze na svislé st n SB600ix.
  • Page 10 Alle linjene du tegner for å installere SB600ix må være rette og plane på en loddrett vegg. Du må installere enheten plant og loddrett for at det skal fungere. Alle lijnen die u trekt als hulp voor de montage van de SB600ix moeten recht, verticaal waterpas en loodrecht op muur staan.
  • Page 11 2" (5.1 cm) 7" (17.8 cm) × 4 4" (10.2 cm) 28" (71 cm) 78" Installation Template for UF55/UF55w Projector System Part of the SMART Board™ 600i3 Interactive Whiteboard System SMART Technologies www.smarttech.com/support www.smarttech.com/contactsupport 99-00914-20 REV A0 2× (198.1 cm)
  • Page 12 7" (17.8 cm) 2" (5.1 cm) 7" (17.8 cm) × 4 28" (71 cm) 4" (10.2 cm) Installation Template for UF55/UF55w Projector System Part of the SMART Board™ 600i3 Interactive Whiteboard System SMART Technologies www.smarttech.com/support www.smarttech.com/contactsupport 99-00914-20 REV A0 2×...
  • Page 13 99-00982-21 B0...
  • Page 14 1/2" (13 mm) c (×4) 99-00982-21 B0...
  • Page 15 1/2" (13 mm) 1/4" (6 mm) c (×7) If you have a metal stud wall, drill the holes twice according to these instructions. Jestliže máte kovové p í ky, vyvrtejte díry dvakrát dle tohoto návodu. Hvis du har en væg med metalstolper, skal der bores huller, som er dobbelt så store som angivet i disse instruktioner.
  • Page 16 Si tiene una pared de entramado, perfore los orificios dos veces de acuerdo con estas instrucciones. Si tiene una pared con tirantes metálicos, perfore los orificios siguiendo estas instrucciones. Jos asennat kiinnikkeen metallikoolinkiseinään, poraa reiät kahdesti näiden ohjeiden mukaan. Si vous avez un mur en colombage métallique, forez les trous deux fois conformément à ces instructions.
  • Page 17 1 3/4" (45 mm) 1/4" (6 mm) e (×5) g (×2) g (×3) f (×2) 99-00982-21 B0...
  • Page 18 1/4" (6 mm) 99-00982-21 B0...
  • Page 19 g (×2) j (×2) g (×4) f (×3) 99-00982-21 B0...
  • Page 20 7" (17.8 cm) × 4 28" (71 cm) 4" (10.2 cm) = 28" (71 cm) Installation Template for UF55/UF55w Projector System Part of the SMART Board™ 600i3 Interactive Whiteboard System SMART Technologies www.smarttech.com/support www.smarttech.com/contactsupport 99-00914-20 REV A0 2" (5.1 cm) 7"...
  • Page 21 7" (17.8 cm) 7" (17.8 cm) 7" (17.8 cm) × 4 28" (71 cm) 4" (10.2 cm) Installation Template for UF55/UF55w Projector System Part of the SMART Board™ 600i3 Interactive Whiteboard System SMART Technologies www.smarttech.com/support www.smarttech.com/contactsupport 99-00914-20 REV A0 2×...
  • Page 22 Fully insert the projector adjustment module into the wall mount bracket guide pins. You will hear a click when the adjustment module is fully inserted and the spring is locked. Refer to step 15 to safely secure the system using the three locking screws. Se izovací...
  • Page 23 Schieben Sie das Projektorjustiermodul vollständig auf die Führungsstifte der Wandhalterung. Sie hören einen Klickton, wenn das Justiermodul vollständig eingeführt und die Feder arretiert ist. Nähere Informationen zur sicheren Anbringung des Systems mit den drei Rastschrauben finden Sie in Schritt 15. Inserte el módulo de ajuste del proyector completamente en los pernos guía del soporte de montaje en la pared.
  • Page 24 Insira totalmente o módulo de ajuste do projetor nos pinos de orientação do suporte de montagem na parede. Você ouvirá um clique quando o módulo de ajuste estiver totalmente inserido e a mola estiver travada. Consulte a etapa 15 para fixar o sistema com segurança usando os três parafusos de aperto.
  • Page 25 99-00982-21 B0...
  • Page 26 www.smarttech.com/ kb/142552 p (×2) 4 1/2" (11.4 cm) 6" (15.2 cm) 99-00982-21 B0...
  • Page 27 99-00982-21 B0...
  • Page 28 99-00982-21 B0...
  • Page 29 99-00982-21 B0...
  • Page 30 99-00982-21 B0...
  • Page 31 99-00982-21 B0...
  • Page 32 99-00982-21 B0...
  • Page 33 VGA Out Audio Out DC 5V 1A VGA 1 Audio In DC 5V 2A VGA 2 Audio In Control S-Video Composite Video HDMI 100V - 240V 50 Hz - 60 Hz 99-00982-21 B0...
  • Page 34 99-00982-21 B0...
  • Page 35 99-00982-21 B0...
  • Page 36 Input Menu Hide Display Mode Mute 99-00982-21 B0...
  • Page 37 99-00982-21 B0...
  • Page 38 99-00982-21 B0...
  • Page 39 Use the adjustment knobs to carefully align the projected image, as outlined in step 41. For more detailed alignment instructions, refer to the user’s guide on the CD included with your product. Se izovacími knoflíky opatrn vyrovnejte promítaný obraz, viz krok 41. Bližší informace o vyrovnávání41 obrazu najdete v uživatelské...
  • Page 40 Use os botões de ajuste para alinhar com cuidado a imagem projetada, conforme descrito na etapa 41. Para obter instruções de alinhamento mais detalhadas, consulte o guia do usuário no CD incluso com o produto. Use os botões de ajuste para alinhar cuidadosamente a imagem projectada, conforme enunciado no passo 41.
  • Page 41 99-00982-21 B0...
  • Page 42 ½ 99-00982-21 B0...
  • Page 43 99-00982-21 B0...
  • Page 44 3" (7.62 cm) 1/4" 1 3/4" (6 mm) (45 mm) 99-00982-21 B0...
  • Page 45 ~3 1/2" (~8.9 cm) ~3 1/2" (~8.9 cm) 2× 1/4" (6 mm) 2× 2× 99-00982-21 B0...
  • Page 46 b (×2) 3 1/2" (8.9 cm) d (×2) c (×2) z (×2) 99-00982-21 B0...
  • Page 47 SB685ix/SBD685ix SB685ix-MP SMART Board™ 600i5 and D600i5 Interactive Whiteboard System Configuration and User’s Guide smarttech.com/kb/137396 SB685ix-MP SMART GoWire™ Auto-Launch Cable (GW-MP, GW-MPP) SBX800i4 smarttech.com/kb/147790 99-00982-21 B0...
  • Page 48 ©2010–2011 SMART Technologies ULC. All rights reserved. SMART Board, SMART GoWire, smarttech, the SMART logo and all SMART taglines are trademarks or registered trademarks of SMART Technologies ULC in the U.S. and/or other countries. All third-party product and company names may be trademarks of their respective owners. US5448263; US6141000; US6320597; US6326954; US6337681; US6540366; US6741267;...
