DIMENSIONS

Outside air intake
OUTLINE
DIMENSIONS
Size Unit A B C
In. 27.6 7.9 19.9
9
mm 700 200 506
In. 27.6 7.9 19.9
12
mm 700 200 506
In. 34.65 8.27 26.54
18
mm 880 210 674
In. 43.31 9.8 30.47
24
mm 1100 249 774
In. 53.54 9.8 30.47
36
mm 1360 249 774
In. 47.24 11.81 34.41
48
mm 1200 300 874
In. 55.12 17.32 33.78
58
mm 1400 440 858
32801000302
Air filter
4-install hanger
Electric control box
0.98in (25mm)
Drain pipe
Gas connection
Liquid connection
Air filter

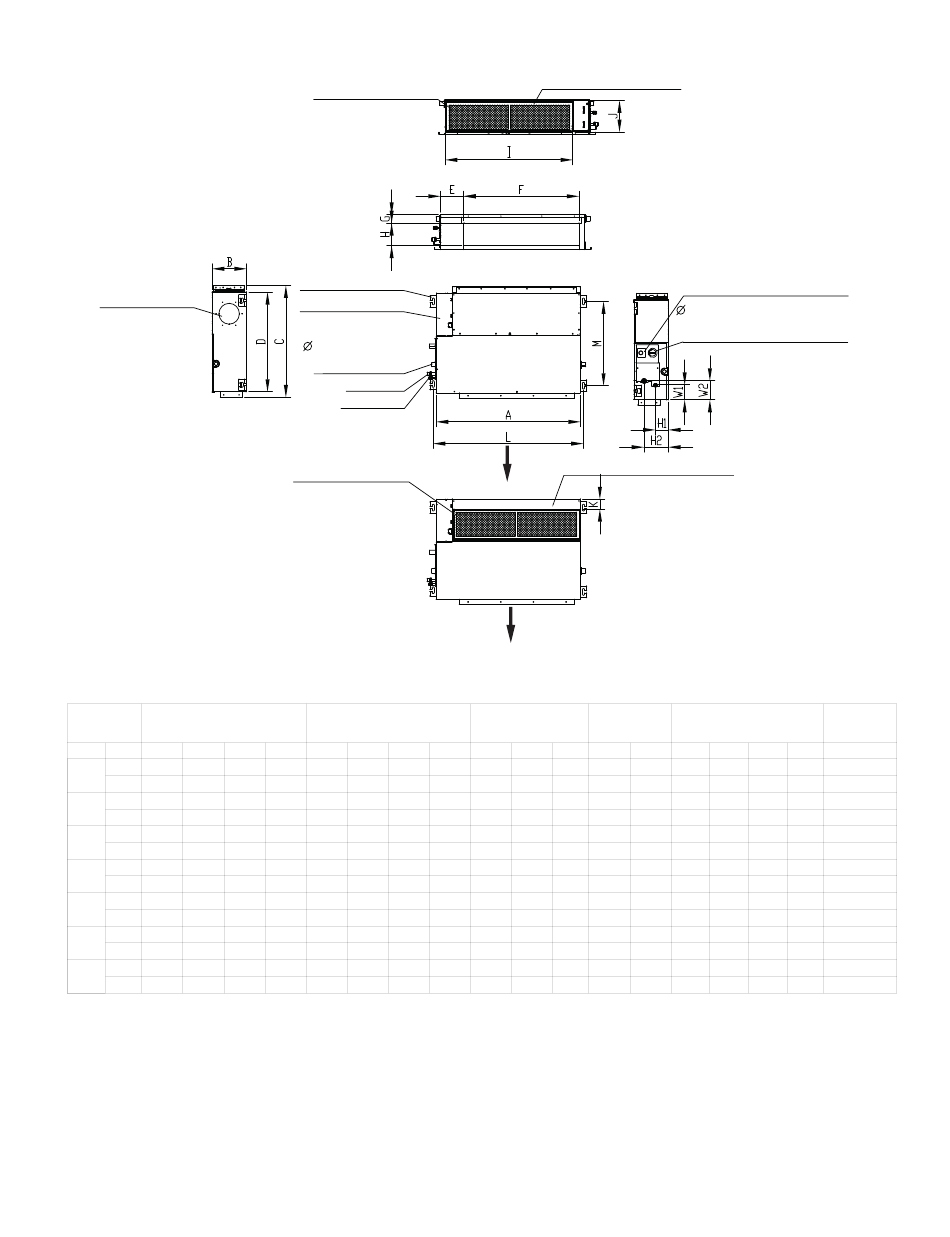

Fig. 4 - Indoor Unit Sizes 09K−48K
Table 4—Indoor Unit
AIR OUTLET
OPENING SIZE
D E F G H
17.7 5.4 21.1 1.2 6
450 137 537 30 152
17.7 5.4 21.1 1.2 6
450 137 537 30 152
23.62 5.51 27.80 1.97 5.35
600 140 706 50 136
27.56 5.51 36.46 1.97 6.89
700 140 926 50 175
27.56 5.51 46.69 1.97 6.89
700 140 1186 50 175
31.5 4.84 41.1 1.97 8.94
800 123 1044 50 227
30.31 4.17 46.81 1.1 15.16
770 106 1189 28 385
Specifications subject to change without notice.
Air inlet from rear side
Airflow
Air inlet from bottom side
Airflow
AIR RETURN HANGER
OPENING SIZE BRACKERS
I J K L M
23.6 7.3 2 29.2 14.2
599 186 50 741 360
23.6 7.3 2 29.2 14.2
599 186 50 741 360
30.79 7.48 1.57 36.22 20
782 190 40 920 508
39.41 8.98 0.2 44.88 23.54
1001 228 5 1140 598
49.65 8.98 0.2 55.12 23.54
1261 228 5 1400 598
43.35 11.02 0.2 48.82 27.44
1101 280 5 1240 697
46.54 11.02 1.57 56.57 27.56
1182 280 40 1437 700
Test mouth & Test cover
0.98in (25mm) Drain
connecting pipe (for lift pump)
OPERATING
REFRIGERANT
WEIGHT
PIPE LOCATIONS
lb (kg)
H1 H2 W1 W2
3.3 5.5 3.3 3.3 40
84 140 84 84 18.1
3.3 5.5 3.3 3.3 40
84 140 84 84 18.1
3.07 5.83 3.46 4.41 54
78 148 88 112 24.5
3.15 5.91 5.12 6.1 87
80 150 130 155 39.4
3.15 5.91 5.12 6.1 106
80 150 130 155 48.3
3.15 5.91 7.28 8.27 120
80 150 185 210 54.3
8.15 10.75 5.67 5.67 163
207 273 144 144 74
5
