D5FSHAH
High Wall Ductless System
Sizes 06 to 36
TABLE OF CONTENTS
A NOTE ABOUT SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
WIRELESS REMOTE CONTROLLER . . . . . . . . . . . . . . . . . . . . . . 3
INDOOR UNIT DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
ADDITIONAL FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
CARE AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
ERROR CODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Please read this Owner's Information Manual carefully before installing and using this appliance and keep this manual for future
reference.
For your convenience, please record the model and serial numbers of your new equipment in the spaces provided. This information, along
with the installation data and dealer contact information, will be helpful should your system require maintenance or service.
UNIT INFORMATION
Model # _______________________________
Serial # ________________________________
INSTALLATION INFORMATION
Date Installed ___________________________
Specifications subject to change without notice.
Owner's Manual
PAGE
NOTE TO EQUIPMENT OWNER:
DEALERSHIP CONTACT INFORMATION
Company Name: ______________________
Address:_____________________________
Phone Number:________________________
Technician Name:______________________

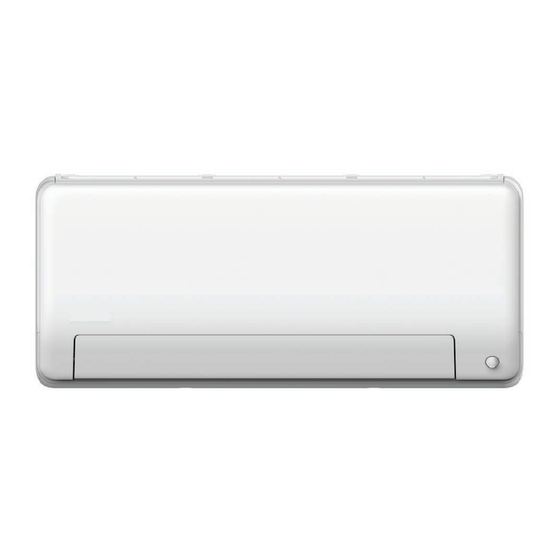

Fig. 1 — Sizes 06K - 36K

Advertisement

loading
Need help?

Need help?

Do you have a question about the D5FSHAH and is the answer not in the manual?

Questions and answers

Summary of Contents for Midea D5FSHAH

  • Page 1 D5FSHAH High Wall Ductless System Sizes 06 to 36 Owner’s Manual TABLE OF CONTENTS PAGE A NOTE ABOUT SAFETY ....... 2 GENERAL .
  • Page 2 D5FSHAH: Owner’s Manual A NOTE ABOUT SAFETY GENERAL The indoor unit provides quiet, maximum comfort. In addition to cooling Any time you see this symbol in manuals, instructions and on the unit, be and/or heating, the indoor unit matched with an outdoor condensing unit aware of the potential for personal injury.
  • Page 3 D5FSHAH: Owner’s Manual WIRELESS REMOTE CONTROLLER Before you begin using your new air conditioner, familiarize yourself with the remote control. ON/OFF MODE Turns the unit on or off. Scroll through operation modes as follows: AUTO COOL TEMP Increases temperate in...
  • Page 4 D5FSHAH: Owner’s Manual WIRELESS REMOTE CONTROL LCD SCREEN INDICATORS Information appears when the remote controller is on. Active clean feature display Not applicable for this unit Fresh feature display Breeze Away display Sleep mode display Not applicable for this unit...
  • Page 5 D5FSHAH: Owner’s Manual REMOTE CONTROLLER BASIC REMOTE CONTROL OPERATION CAUTION Before operation, ensure the unit is plugged in and power is available. COOL Mode EQUIPMENT DAMAGE HAZARD Failure to follow this caution may result in equipment damage. Handle the control with care and avoid getting the control wet.
  • Page 6 D5FSHAH: Owner’s Manual HEAT Mode DRY Mode Boost Humidity Boost Humidity Fig. 7 — DRY Mode Fig. 5 — HEAT Mode 1. Press MODE to select the DRY mode. 1. Press MODE to select the HEAT mode. 2. Set your desired temperature using the UP or DOWN arrows 2.
  • Page 7 D5FSHAH: Owner’s Manual Remote Control Operation - Quick Start NOTE: When transmitting a command from the remote control to When the outside temperature is below 32°F (0°C), we strongly the unit, be sure to point the control toward the right side of the unit.
  • Page 8 D5FSHAH: Owner’s Manual INDOOR UNIT DISPLAY NOTE: Different models have different front panel and display window. Not all the indicators described below are available for the air conditioner you purchased. Please check the indoor display window of the unit you purchased. Illustrations in this manual are for explanatory purposes.
  • Page 9 D5FSHAH: Owner’s Manual ADDITIONAL FEATURES Sleep NOTE: Every time the air conditioner is powered on, the unit emits a buzzing sound to indicate that the product has been Use SLEEP to decrease energy use while you sleep. Press SLEEP on the powered on normally.
  • Page 10 D5FSHAH: Owner’s Manual SETTING AIR FLOW Manual Operation (Without Remote) NOTE: Setting vertical angle of air flow (remote control). While the unit is on, use SWING to set the direction (vertical/ CAUTION horizontal angle) of airflow. Refer to the Remote Control Manual for details.
  • Page 11 D5FSHAH: Owner’s Manual CARE AND MAINTENANCE 3. Clean the large air filter with warm, soapy water. Be sure to use a mild detergent. Rinse the filter with fresh water, then shake off any CAUTION excess water. Dry it in a cool, dry place, and refrain from exposing it to direct sunlight.
  • Page 12 D5FSHAH: Owner’s Manual Maintenance - Long Periods of Non-Use Maintenance - Pre-Season Use If you plan not to use your air conditioner for an After long periods of non-use, or before periods of extended period of time, do the following:...
  • Page 13 D5FSHAH: Owner’s Manual TROUBLESHOOTING WARNING SAFETY PRECAUTIONS If any of the following conditions occur, turn off the unit immediately: The power cord is damaged or abnormally warm. You smell a burning odor. The unit emits loud or abnormal sounds. A power fuse blows or the circuit breaker frequently trips.
  • Page 14 D5FSHAH: Owner’s Manual TROUBLESHOOTING (CONT) When issues occur, please review the following common issues in Table 2 prior to contacting a service company. Table 2 — Troubleshooting Tips Problem Possible Causes Solution Temperature setting may be higher than the ambient...
  • Page 15 D5FSHAH: Owner’s Manual ERROR CODES Table 3 — Error Codes Display Malfunction and Protection Indication Display Malfunction and Protection Indication Other indoor unit refrigerant sensor detects a leak (multi-zone) ODL Current Protection ECC1 PC08 Outdoor DC fan motor speed out of control...
  • Page 16 D5FSHAH: Owner’s Manual © 2024 Carrier. All rights reserved. Edition Date: 03/24 Catalog No: MO-D5FSHAH-01 A Carrier Company Replaces: NEW Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
