Specifications:
Power Output: ............................. 50 watts RMS x 2 into 4 ohms
Total Harmonic Distortion: ........ 0.5% @ 50W per channel
Minimum Speaker Impedance: .. 4 ohm
Frequency Response: ................ 20-20,000 Hz, ±2 dB
Channel Separation: ................... 50 dB
Preamplifier Tube: ...................... 6U1 x2 6F2 x2
Bluetooth Version: ...................... 4.2
Input Impedance: ........................ 47k ohms (minimum)
Input Sensitivity: ......................... 250 mV
Dimensions: ................................ 6.6" H x 11.5" W x 10.6" D
Weight: ........................................ 11 lbs
Important Safety Instructions
To reduce the risk of electric shock, do not remove cover. No user
serviceable parts inside. Refer servicing to qualified personnel. To
reduce the risk of fire and shock do not expose unit to rain or moisture.
The unit should be connected to an earth grounded AC electrical
socket. The unit should be operated in a well ventilated area. Minimum
clearance is 2 inches from the ventilation openings.
FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(a)
This device may not cause harmful interference.
(b)
This device must accept any interference received, including interference that
may cause undesired operation.
2. FCC Radiation Exposure Statement: Mobile device.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC radio frequency expo-
sure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during
normal operation.
5-Year Limited Warranty
See daytonaudio.com for details
daytonaudio.com
tel + 937.743.8248
info@daytonaudio.com
Dayton Audio
®
705 Pleasant Valley Dr.
Springboro, OH 45066
USA
Last Revised: 4/20/2020

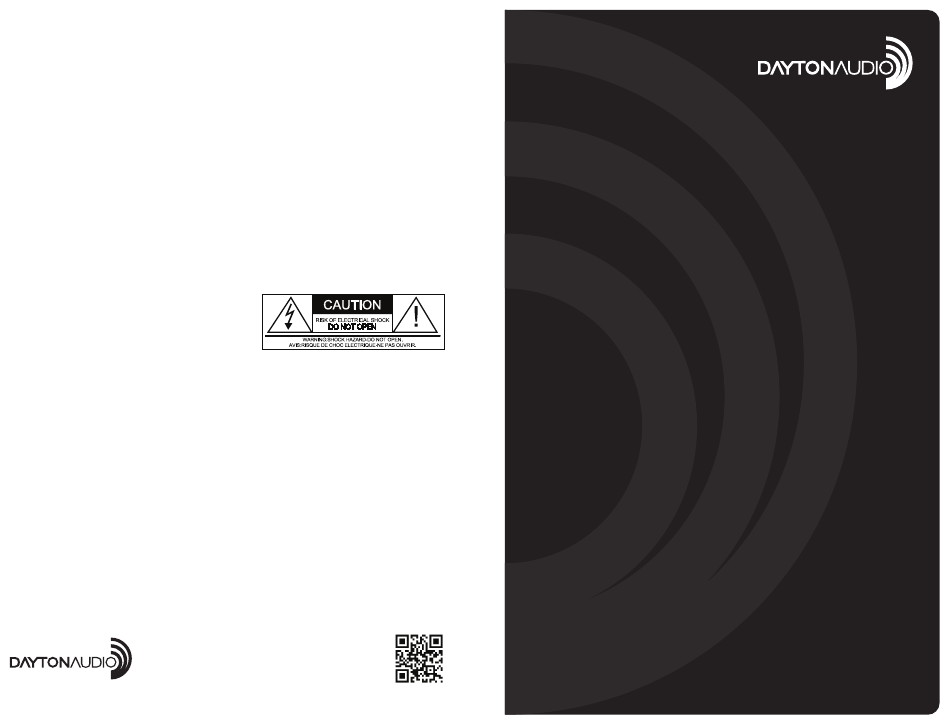

HYBRID STEREO
TUBE AMPLIFIER
Model: HTA100BT
User Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DaytonAudio HTA100BT
Summary of Contents for DaytonAudio HTA100BT
- Page 1 In order to avoid the possibility of exceeding the FCC radio frequency expo- sure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation. 5-Year Limited Warranty See daytonaudio.com for details daytonaudio.com 705 Pleasant Valley Dr. tel + 937.743.8248 Springboro, OH 45066 info@daytonaudio.com...

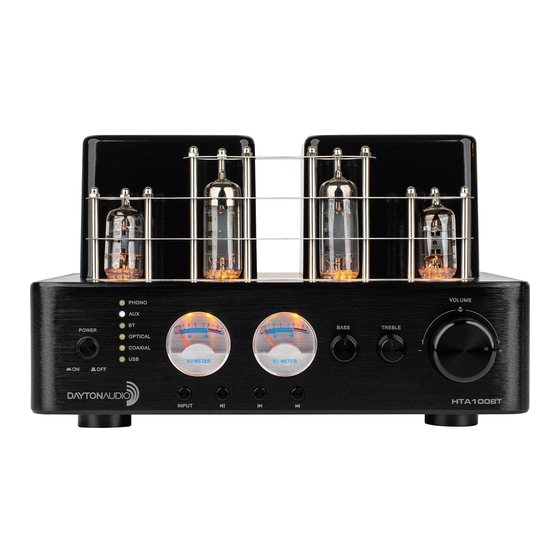

- Page 2 Front Panel Thank you for purchasing the Dayton Audio HTA100BT Hybrid Stereo Tube ency. Multiple input options including USB media playback are available, and Bluetooth 4.2 Features: • 50W per channel RMS into each channel at a 4 ohm load •...
- Page 3 FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. ...
