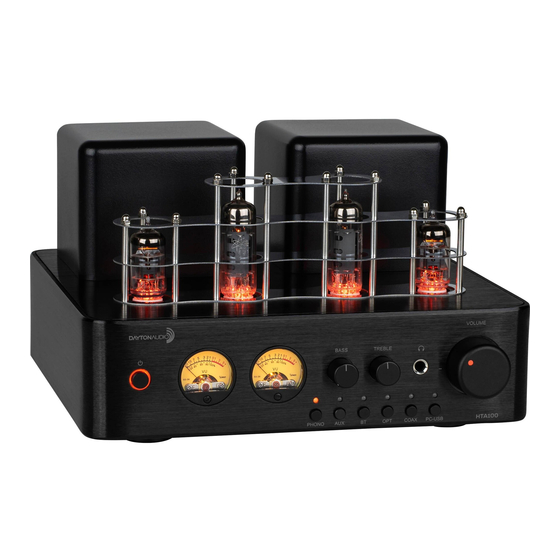

- Page 1 100W INTEGRATED STEREO HYBRID TUBE AMPLIFIER Model: HTA100 User Manual...
- Page 2 Safety Information IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified personnel. To reduce the risk of fire and shock do not expose unit to rain or moisture. The unit should be connected to an earth grounded AC electrical socket.
-
Page 3: Table Of Contents
Welcome Thank you for purchasing the Dayton Audio HTA100 Integrated Stereo Hybrid Tube Amplifier. This amplifier has been designed to make it easy for anyone to enjoy the warm, natural sound quality of vacuum tube amplification without the size, power consumption, and price of using traditional tube amplifiers. The HTA series from Dayton Audio achieves this by combining vacuum tubes in the preamp input section with a modern power efficient solid state Class A/B output power amplifier. -
Page 4: Controls And Functions Front Panel
Controls and Functions Front Panel 1. POWER SWITCH/INDICATOR 7. VOLUME CONTROL Turns the device on and off. Turn this up to begin experiencing the warm natural tone generated by the tube preamplifier. 2. POWER INDICATOR The ring surrounding the power switch will 8. -
Page 5: Rear Panel
Rear Panel 9. DIGITAL (OPTICAL) INPUT 14. PC-USB INPUT 10. SUBWOOFER OUTPUT 15. DIGITAL (COAXIAL) INPUT Use a single RCA cable to connect the SW OUT 16. LINE LEVEL (AUX) INPUT to a powered subwoofer or separate subwoofer amplifier. 17. PHONO INPUT 18. -
Page 6: Connections
Connections Connecting the Power Cable Before connecting the main power cable, make sure that the voltage selector switch is set according to your local volt- age. Incorrect setting of the voltage selector switch could cause damage to the amplifier and has a potential risk of fire. -
Page 7: Connecting Speakers
If you really want to feel the bass or just want to bother the neighbors you can add a subwoofer using the SW OUT connection on the rear of the HTA100. This signal is full range and will send a mono summed signal that is control- lable by the front volume knob. -
Page 8: Connecting Sources
2. Remove the covers from the PHONO RCA plugs and connect the turntable to the phono input. 3. Connect the ground wire of the turntable to the ground terminal on the rear of the HTA100 (if applicable). Bluetooth as a Source 1. -
Page 9: Troubleshooting
Troubleshooting... -
Page 10: Specifications
All expenses (except return shipping costs) related to replacing or repairing a defective part or product under this warranty shall be assumed by Dayton Audio. Dayton Audio reserves the right to replace defective product with a new or factory reconditioned unit. For more information and to register your new Dayton Audio device visit daytonaudio.com. - Page 11 Notes Purchased on: ____________________...
- Page 12 5-Year Limited Warranty See daytonaudio.com for details daytonaudio.com 705 Pleasant Valley Dr. tel + 937.743.8248 Springboro, OH 45066 info@daytonaudio.com Dayton Audio Last Revised: 2/23/2023 ®...
