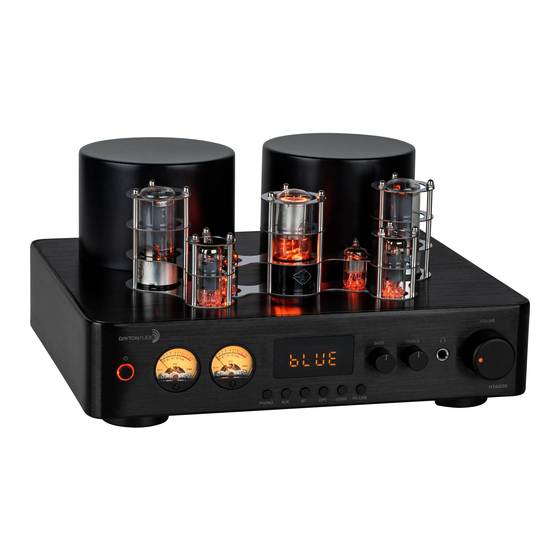

- Page 1 200W INTEGRATED STEREO HYBRID TUBE AMPLIFIER Model: HTA200 User Manual...
- Page 2 Safety Information IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified personnel. To reduce the risk of fire and shock do not expose unit to rain or moisture. The unit should be connected to an earth grounded AC electrical socket.
-
Page 3: Table Of Contents
Welcome Thank you for purchasing the Dayton Audio HTA200 Integrated Stereo Hybrid Tube Amplifier. This amplifier has been designed to make it easy for anyone to enjoy the warm, natural sound quality of vacuum tube amplification without the size, power consumption, and price of using traditional tube amplifiers. The HTA series from Dayton Audio achieves this by combining vacuum tubes in the preamp input section with a modern power efficient solid state Class A/B output power amplifier. -
Page 4: Controls And Functions Front Panel
Controls and Functions Front Panel 1. POWER SWITCH/INDICATOR 5. BASS CONTROL Turns the device on and off. Adjusts the volume level for the bass output. 2. POWER INDICATOR 6. TREBLE CONTROL The ring surrounding the power switch will Adjusts the volume level for the treble output. illuminate amber when the unit is turned on. -
Page 5: Rear Panel
Rear Panel 10. DIGITAL (OPTICAL) INPUT 15. PC-USB INPUT 11. SUBWOOFER OUTPUT 16. DIGITAL (COAXIAL) INPUT Use a single RCA cable to connect the SW OUT 17. LINE LEVEL (AUX) INPUT to a powered subwoofer or separate subwoofer 18. PHONO INPUT amplifier. -
Page 6: Remote Control
Remote Control 1. MUTE 1. When muted, the HTA200 will display ---- on it’s screen. 2. VOLUME +/- 1. Control the volume of the amplifier. The volume knob will rotate to indicate the current level of the amplifier. 3. TRACK TRANSPORT CONTROLS 1. -
Page 7: Connecting Speakers
If you really want to feel the bass or just want to bother the neighbors you can add a subwoofer using the SW OUT connection on the rear of the HTA200. This signal is full range and will send a mono summed signal that is control- lable by the front volume knob. -
Page 8: Connecting Sources
2. Using a smart phone, tablet, computer, or other device capable of transmitting Bluetooth audio, go the devices settings and scan for available Bluetooth devices. 3. Look for and select “HTA200” in the device list and begin pairing. The front display panel on the HTA200 will flash until a device is paired. -
Page 9: Troubleshooting
Troubleshooting... -
Page 10: Specifications
All expenses (except return shipping costs) related to replacing or repairing a defective part or product under this warranty shall be assumed by Dayton Audio. Dayton Audio reserves the right to replace defective product with a new or factory reconditioned unit. For more information and to register your new Dayton Audio device visit daytonaudio.com. - Page 11 Notes Purchased on: ____________________...
- Page 12 5-Year Limited Warranty See daytonaudio.com for details daytonaudio.com 705 Pleasant Valley Dr. tel + 937.743.8248 Springboro, OH 45066 info@daytonaudio.com Dayton Audio Last Revised: 2/22/2023 ®...
Need help?
Do you have a question about the HTA200 and is the answer not in the manual?
Questions and answers
HTA-200 My left channel has stopped working. No meter reading, no sound. I get both channels with headphones. Speakers and speaker connections are good.
Possible causes of the left channel not working on the DaytonAudio HTA200 could include:
1. Headphones Plugged In – If headphones are connected to the ¼" TRS jack, the speaker outputs are disabled.
2. Source Connection Issue – Ensure the input source is properly connected and functioning.
3. Speaker Wiring Problem – Check if the left speaker cable is securely connected and not damaged.
4. Amplifier Settings – Verify balance settings and ensure the left channel is not muted or turned down.
5. Tube or Internal Component Failure – A faulty tube or internal circuit issue could affect the left channel.
6. Subwoofer Output Use – If using SW OUT, ensure it's not affecting the expected output to speakers.
Check these steps to diagnose and resolve the issue.
This answer is automatically generated
None of my devices (kindle,iPhone 15) recognize my amp for Bluetooth connection
