Summary of Contents for DaytonAudio HTA20

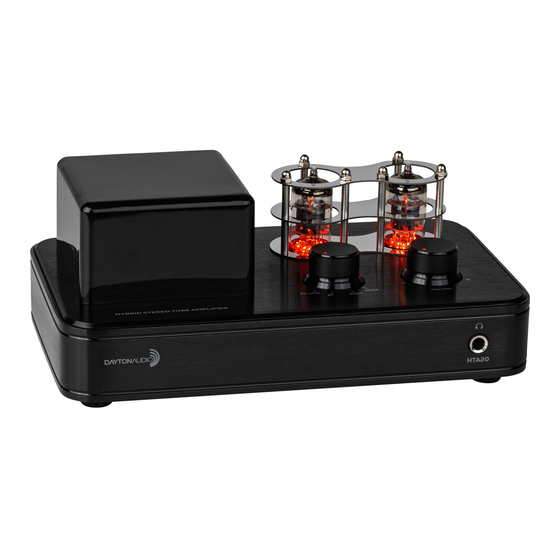

- Page 1 20W INTEGRATED STEREO HYBRID TUBE AMPLIFIER Model: HTA20 User Manual...
- Page 2 Safety Information IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified personnel. To reduce the risk of fire and shock do not expose unit to rain or moisture. The unit should be connected to an earth grounded AC electrical socket.
- Page 3 The Dayton Audio HTA20 Integrated Stereo Hybrid Tube Amplifier was designed to make it easy for anyone to enjoy the warm, natural sound quality of vacuum tube amplification without the size, power consumption, and price of using traditional tube amplifiers. The HTA series from Dayton Audio achieves this by combining vacuum tubes in the preamp input section with a modern, power efficient solid state Class A/B output power amplifier.
- Page 4 Controls and Functions Top Panel Rear Panel Front Panel...
- Page 5 1. Source Selector Turn this knob to select between different sources. 2. Volume Knob Turn this up to begin experiencing the warm natural tone generated by the tube preamplifier. 3. Bluetooth Antenna During setup, turn the Bluetooth antenna to the upright position for optimum signal reach.
- Page 6 If you really want to feel the bass or just want to bother the neighbors you can add a subwoofer using the S.W. OUT connection on the rear of the HTA20. This signal is full range and will send a mono summed signal that is controllable by the front volume knob.
- Page 7 Connecting Sources CD PLAYER WBA51 The HTA20 is capable of receiving signals directly from a wide variety of sources.Using high quality cables will ensure the best possible transmission from your connected devices. Bluetooth as a Source 1. Make sure that the input selector is set to Bluetooth 2.
- Page 8 Dayton Audio. Dayton Audio reserves the right to replace defective product with a new or factory reconditioned unit. For more information and to register your new Dayton Audio device visit daytonaudio.com. daytonaudio.com 705 Pleasant Valley Dr.
