Ubiquiti IsoStation AC IS-5AC Quick Start Manual

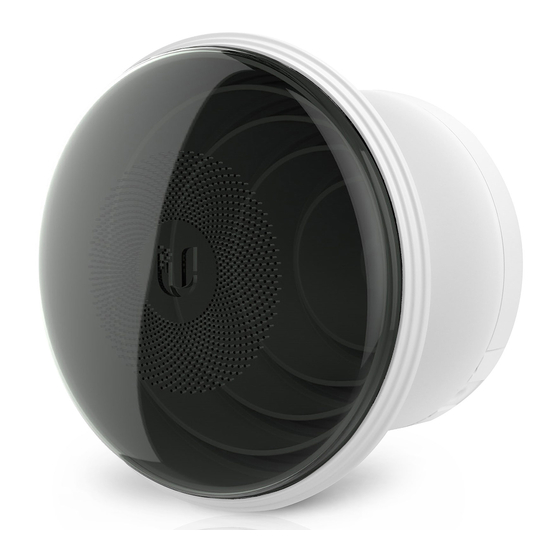

Shielded airmax ac radio with isolation antenna
Hide thumbs
Table of Contents

Advertisement

Quick Links

Shielded airMAX
ac Radio
®
with Isolation Antenna
Model: IS-5AC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IsoStation AC IS-5AC and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti IsoStation AC IS-5AC

Summary of Contents for Ubiquiti IsoStation AC IS-5AC

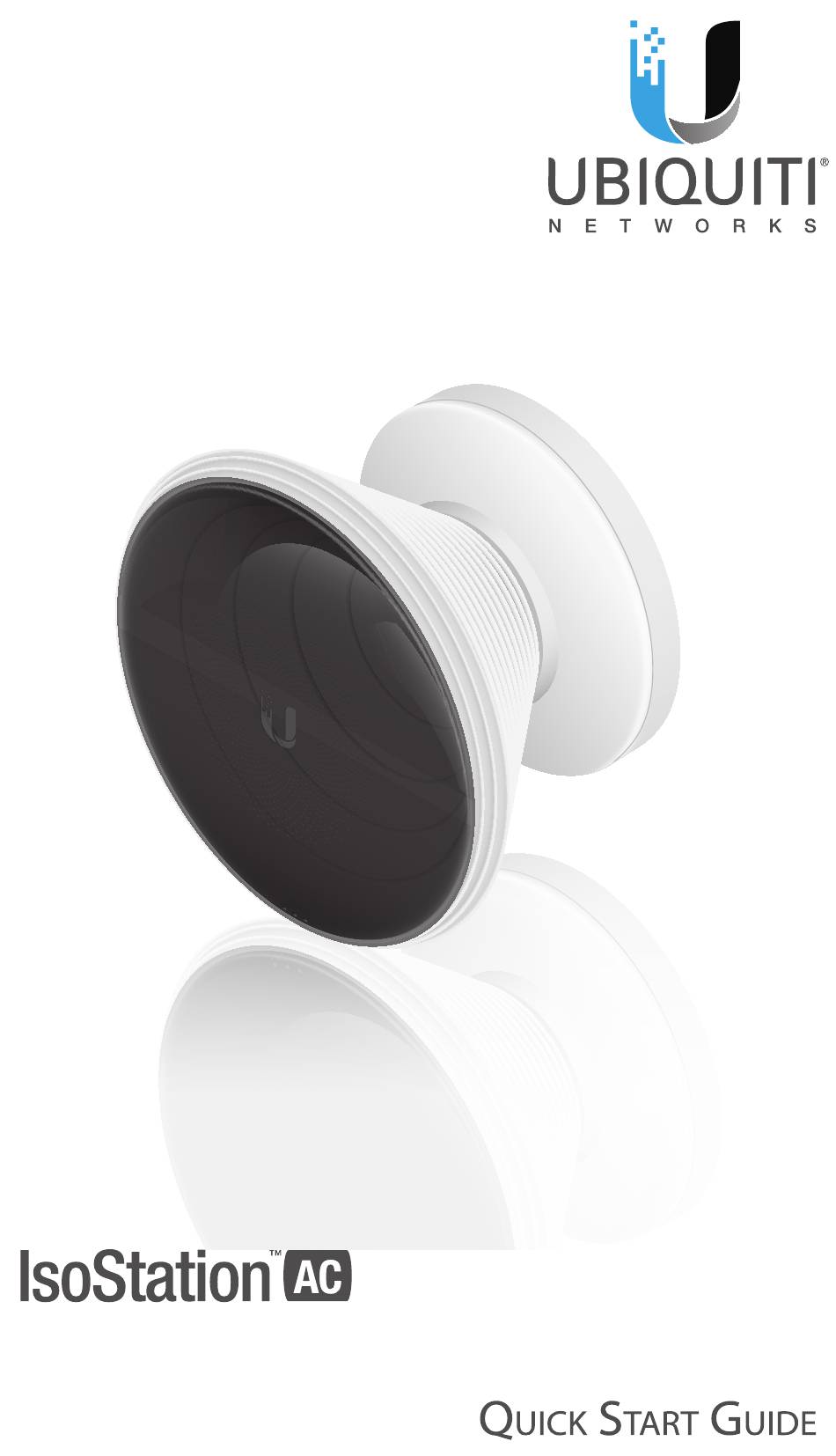

  • Page 1 Shielded airMAX ac Radio ® with Isolation Antenna Model: IS-5AC...

  • Page 2: Package Contents

    Quick Start with Mounting Bracket Guide TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™ designed for outdoor installations. It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements.

  • Page 3: Installation Requirements

    Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial‑grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable Hardware Overview Power...

  • Page 4: Release Button

    Release Button Release Button Release Button The default horn (beamwidth: 45°) can be swapped out for an optional horn with a different beamwidth. To remove the attached horn, rotate the horn counterclockwise while depressing the Release Button. To reinstall the horn, align the arrow on the horn with the Release Button.

  • Page 5: Hardware Installation

    Hardware Installation The IsoStation was designed for quick mounting on a pole. 1. Open the Metal Strap and feed it through the base of the IsoStation. 2. Wrap the Metal Strap around the pole. Use a 7 mm socket wrench to turn the screw clockwise and securely fasten the clamp to the pole.

  • Page 6: Connecting Power

    Connecting Power 1. Remove the port cover by pressing down the center of the cover and sliding the cover out. 2. Remove the rubber gasket from the port cover. *640-00267-05* 640-00267-05...
  • Page 7 3. Connect an Ethernet cable to the Ethernet port. 4. Replace the port cover.
  • Page 8 5. Fit the rubber gasket over the Ethernet cable, and then slide the gasket into the port cover. 6. Connect the power using one of the following options: • Using the included Gigabit PoE Adapter: Go to “Connecting to the PoE Adapter” . •...
  • Page 9 Connecting to the PoE Adapter 1. Connect the Ethernet cable from the IsoStation to the POE port on the PoE Adapter. 2. Connect an Ethernet cable from your LAN to the LAN port on the PoE Adapter. 3. Connect the Power Cord to the PoE Adapter, and then plug the Power Cord into a power outlet.
  • Page 10 Accessing airOS via Wi‑Fi Verify connectivity in the airOS® Configuration Interface. There are two methods, the U Mobile App and Web Portal. Both are available for 15 minutes immediately after you power on the IsoStation. If necessary, you can power cycle the IsoStation to re‑enable its Wi‑Fi.
  • Page 11 5. Tap Connect on the Login screen. 6. Select your Country and tap Done. 7. Customize your settings as needed.

  • Page 12: Web Portal

    Web Portal 1. Connect your device’s Wi‑Fi to the IsoStation SSID named: IS-5AC:<MAC Address> Note: Ensure that your Wi‑Fi connection has DHCP enabled. 2. Launch your web browser and go to: http://setup.ubnt.com 3. Enter ubnt in the Username and Password fields. Select your Country and Language.

  • Page 13: Installer Compliance Responsibility

    Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer's responsibility to make sure the device is operated within local country regulatory requirements. The Output Power field is provided to the professional installer to assist in meeting regulatory requirements.

  • Page 14: Specifications

    Specifications IS‑5AC Dimensions 174 x 174 x 150 mm (6.85 x 6.85 x 5.91") Without Horn 131 x 131 x 65 mm (5.16 x 5.16 x 2.56") Weight 725.7 g (1.60 lb) Without Horn 408.2 g (0.90 lb) Gain 14 dBi Beamwidth 45°...

  • Page 15: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.

  • Page 16: Limited Warranty

    (VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA.

  • Page 17: Limitation Of Liability

    SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING.
  • Page 18 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.

  • Page 19: Industry Canada

    Industry Canada CAN ICES‑3(A)/NMB‑3(A) This Class A digital apparatus complies with Canadian CAN ICES‑003. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.

  • Page 20: Australia And New Zealand

    RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter. Les antennes utilisées pour ce transmetteur doivent être installé...
  • Page 21 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
  • Page 22 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.

  • Page 23: Declaration Of Conformity

    [German] Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. Ελληνική Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις [Greek] βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1995/5/ΕΚ.

  • Page 24: Online Resources

    . u b n t . c o m ©2016‑2017 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airMAX, airOS, IsoStation, and TOUGHCable are trademarks or registered trademarks of Ubiquiti Networks, Inc.
