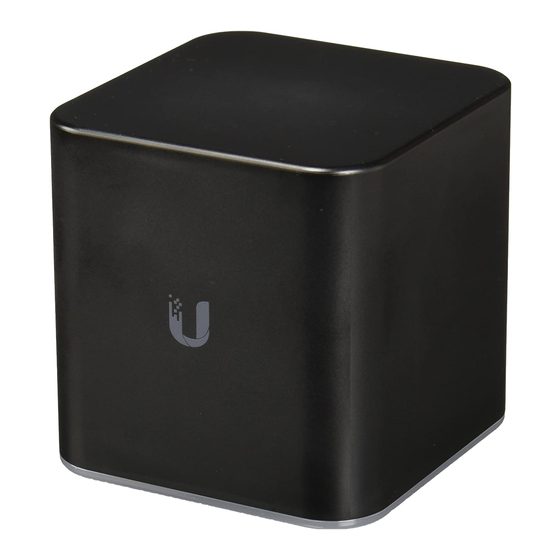

Ubiquiti AirCube ACB-AC Quick Start Manual

Dual-band 802.11ac wi-fi access point with poe in/out
Hide thumbs Also See for AirCube ACB-AC:
Table of Contents

Advertisement

Quick Links

Dual-Band 802.11ac Wi-Fi
Access Point with PoE In/Out
Model: ACB-AC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AirCube ACB-AC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ubiquiti AirCube ACB-AC

Summary of Contents for Ubiquiti AirCube ACB-AC

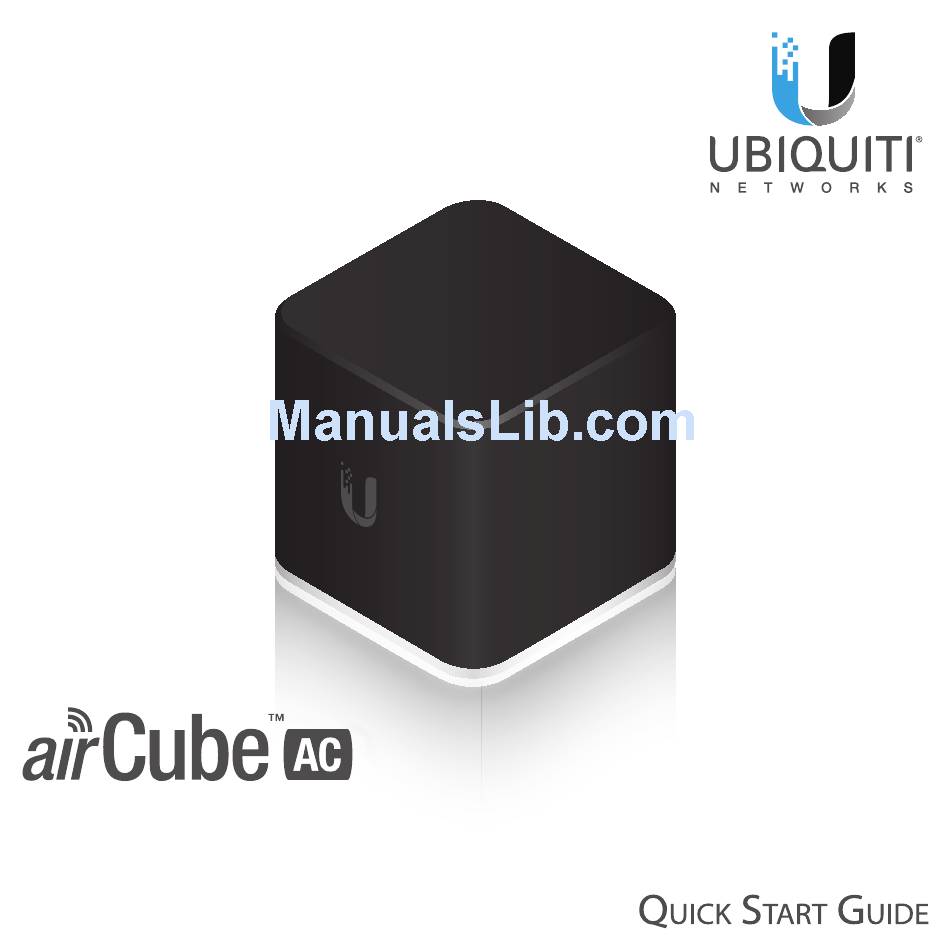

  • Page 1 Dual-Band 802.11ac Wi-Fi Access Point with PoE In/Out Model: ACB-AC...

  • Page 2: Package Contents

    Introduction Thank you for purchasing the airMAX® airCube AC Access Point. This ™ Quick Start Guide is designed to guide you through installation and also includes warranty terms. Package Contents Dual-Band 802.11ac Wi-Fi Access Point with PoE In/Out Model: ACB-AC airCube AC Access Point Quick Start Guide Power Adapter...

  • Page 3: Hardware Overview

    Hardware Overview Access Point Front The LED lights up when the airCube is powered on.
  • Page 4 Access Point Back WAN Port LAN Ports Power Port Three Gigabit Ethernet ports available to connect 10/100/1000 Mbps devices to the Internet. Port 1 also allows 24V PoE In and can be used to power the airCube. Connects to and powers a 24V PoE airMAX device. 24V PoE OUT The Power Adapter connects to this port.

  • Page 5: Hardware Installation

    Hardware Installation 1. Connect one end of an Ethernet cable to the WAN Port on the back of the airCube. Connect the other end of the Ethernet cable to your airMAX CPE radio.
  • Page 6 2. Connect the Power Adapter to the Power Port on the back of the airCube.
  • Page 7 3. Plug the other end of the Power Adapter into a power outlet.
  • Page 8 4. The LED in the base of the airCube will light up when the device is powered on.
  • Page 9 U Mobile App The airCube can be installed and configured using the U Mobile app on your mobile phone or tablet. Follow these steps to ensure proper installation: 1. Download and install the U Mobile app from the App Store (iOS) or Google Play (Android).

  • Page 10: Android Users

    Android Users 1. Tap the icon to add a new device to U Mobile. 2. Select Discover to scan for devices on the active Wi-Fi networks in range. 3. Tap the airCube device from the list. U Mobile will activate a QR scanner using the camera function on your mobile device.
  • Page 11 iOS Users 1. Tap the icon to add a new device to U Mobile. Installer 2. From the two options provided, select airCube. U Mobile will activate a QR scanner using the camera function on your mobile device. 3. Scan the QR code located on the bottom of the airCube. Once the QR code is scanned, U Mobile will return to the main app screen.
  • Page 12 Verify Connection to airCube 1. Tap Status to verify connectivity to the airCube.
  • Page 13 2. Tap Configuration to customize settings on the airCube.
  • Page 14 3. Tap More to see additional actions for the airCube. 4. Tap Disconnect to disconnect the app from the airCube.

  • Page 15: Specifications

    Specifications airCube-AC Dimensions 87.80 x 89.50 x 89.25 mm (3.46 x 3.52 x 3.51") Weight 280 g (9.88 oz) Management Interface Wi-Fi / Ethernet Networking Interface (4) Gigabit Ethernet Ports Status Antenna Gain 4 dBi @ 2.4 GHz 5 dBi @ 5 GHz Max.

  • Page 16: Electrical Safety Information

    Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.

  • Page 17: Limited Warranty

    (the “Product(s)”) shall be free from defects in material and workmanship for a period of one (1) year from the date of shipment by UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS’ sole and exclusive obligation and...

  • Page 18: Warranty Conditions

    (VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;...
  • Page 19 INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. In addition, UBIQUITI NETWORKS does not warrant that the operation of the Products will be error-free or that operation will be uninterrupted.

  • Page 20: Limitation Of Liability

    Limitation of Liability EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING OUT OF THE USE, INABILITY TO USE,...
  • Page 21 Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
  • Page 22 ISED Canada CAN ICES-3(B)/NMB-3(B) This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This device must accept any interference, including interference that may cause undesired operation of the device. The airCube has been approved by ISED Canada under IC: 6545A-ACBAC.
  • Page 23 RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter. Les antennes utilisées pour ce transmetteur doivent être installé...
  • Page 24 Deutsch Die Europäische Richtlinie 2012/19/EU verlangt, dass technische Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt von regulärem Haushaltmüll getrennt entsorgt werden sollte. Es liegt in Ihrer Verantwortung, dieses Gerät und andere elektrische und elektronische Geräte über die dafür zuständigen und von der Regierung oder örtlichen Behörden dazu bestimmten Sammelstellen zu entsorgen.
  • Page 25 Français La directive européenne 2012/19/UE exige que l’équipement sur lequel est apposé ce symbole sur le produit et/ou son emballage ne soit pas jeté avec les autres ordures ménagères. Ce symbole indique que le produit doit être éliminé dans un circuit distinct de celui pour les déchets des ménages.

  • Page 26: Declaration Of Conformity

    декларацията за съответствие може да се намери на следния интернет адрес: www.ubnt.com/compliance Hrvatski [Croatian] UBIQUITI NETWORKS ovime izjavljuje da je radijska oprema tipa ACB-AC u skladu s Direktivom 2014/53/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi: www.ubnt.com/compliance Čeština [Czech]...
  • Page 27 Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen: www.ubnt.com/compliance Íslenska [Icelandic] Hér með lýsir UBIQUITI NETWORKS yfir því að ACB-AC er í samræmi við tilskipun 2014/53/ESB. Fullur texti ESB samræmisyfirlýsing er að finna á eftirfarandi netfangi: www.ubnt.com/compliance...
  • Page 28 Italiano [Italian] Il fabbricante, UBIQUITI NETWORKS, dichiara che il tipo di apparecchiatura radio ACB-AC è conforme alla direttiva 2014/53/UE. Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet: www.ubnt.com/compliance Latvių kalba [Latvian] Ar šo UBIQUITI NETWORKS deklarē, ka radioiekārta ACB-AC atbilst Direktīvai 2014/53/ES.
  • Page 29 Internet: www.ubnt.com/compliance Română [Romanian] Prin prezenta, UBIQUITI NETWORKS declară că tipul de echipamente radio ACB-AC este în conformitate cu Directiva 2014/53/UE. Textul integral al declarației UE de conformitate este disponibil la următoarea adresă internet: www.ubnt.com/compliance Slovenčina [Slovak]...
  • Page 30 Ubiquiti beam logo, airMAX, and airCube are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. Apple, the Apple logo, and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
