airCube ISP Access Point

Advertisement

loading
Need help?

Need help?

Do you have a question about the airCube ISP and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti airCube ISP

Summary of Contents for Ubiquiti airCube ISP

  • Page 1 ISP Access Point...

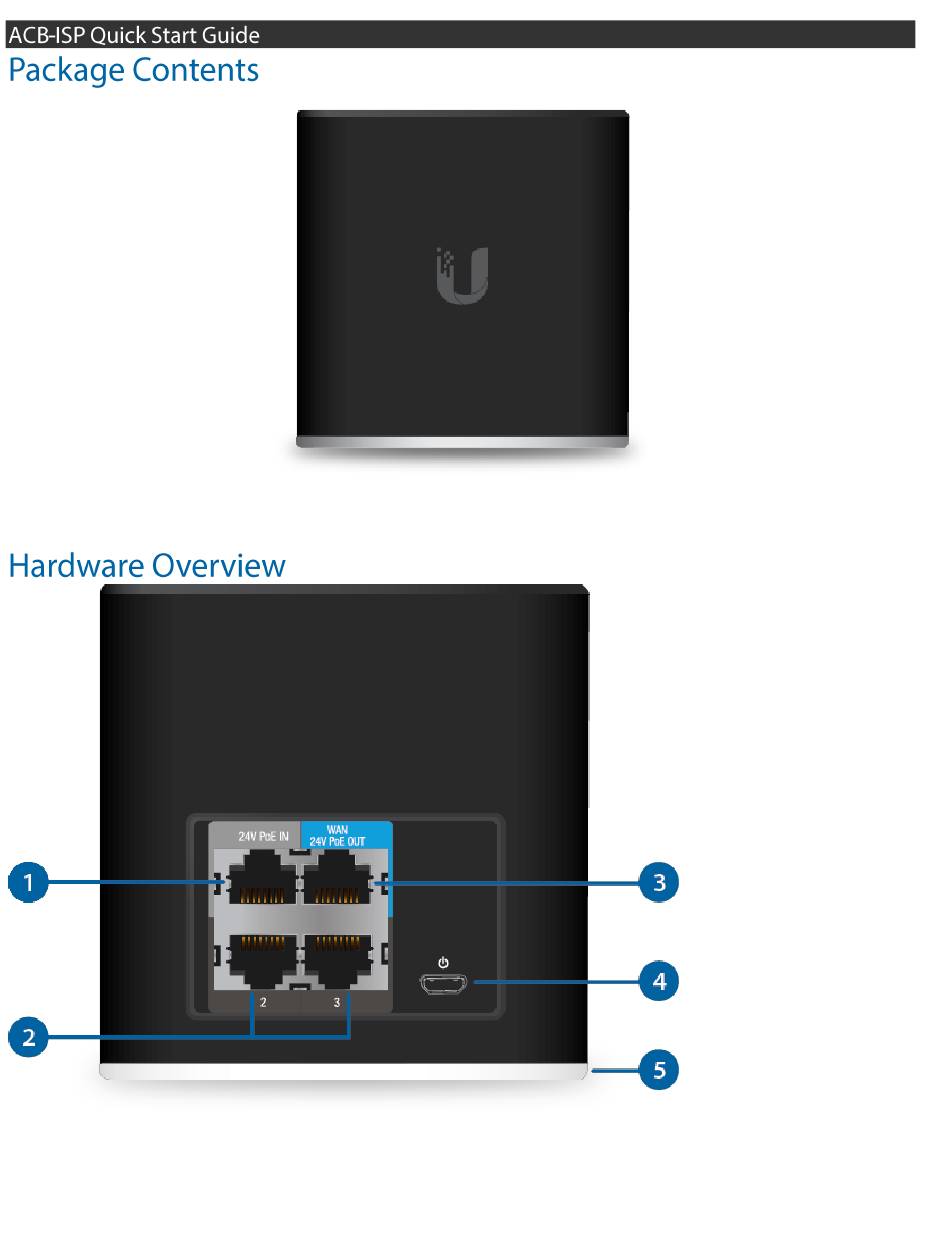

  • Page 2 24V PoE In Port This Gigabit Ethernet port is available to connect a 10/100/1000 Mbps device to the internet. It also accepts 24V PoE input and can be used to power the airCube. Ports 2-3 These Gigabit Ethernet ports are available to connect 10/100/1000 Mbps devices to the internet.
  • Page 3 The LED lights up when the airCube is powered on. Reset Button Resets to factory defaults. The device should be running after bootup is complete. Press and hold the Reset button for about 10 seconds until the LED starts flashing and then becomes solidly lit.
  • Page 5 NOTE: The device used to configure the airCube must be on the same network as the airCube itself. NOTE: The QR code password can be found on the bottom of the airCube. It is labeled PSWD. ACB-ISP Dimensions 87.80 x 89.50 x 89.25 mm (3.46 x 3.52 x 3.51") Weight 280 g (9.88 oz)
  • Page 6 ACB-ISP Management Interface Wi-Fi / Ethernet Networking Interface 10/100 Fast Ethernet Ports Status Operating Frequency 2.4 GHz Antenna Gain 4 dBi Max. Speeds 300 Mbps Max. Power Consumption Max. TX Power 20 dBm Power Supply Power Method Micro-USB Adapter (Not Included) or PoE 24V In on LAN Port 1 PoE Out Controllable 24V PoE Out (4, 5+, 7, 8-) on WAN Port...
  • Page 7 • • • •...
  • Page 8 • • • • • • Nota: Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados. Country List BFWA (Broadband Fixed Wireless Access) members noted in blue...
  • Page 9 Note: This device meets Max. TX power limit per ETSI regulations. Note: This device is restricted to indoor use only when operating in the 5150 - 5350 MHz frequency range within all member states. Note: All countries listed may operate at 30 dBm. BFWA member states may operate at 36 dBm.
