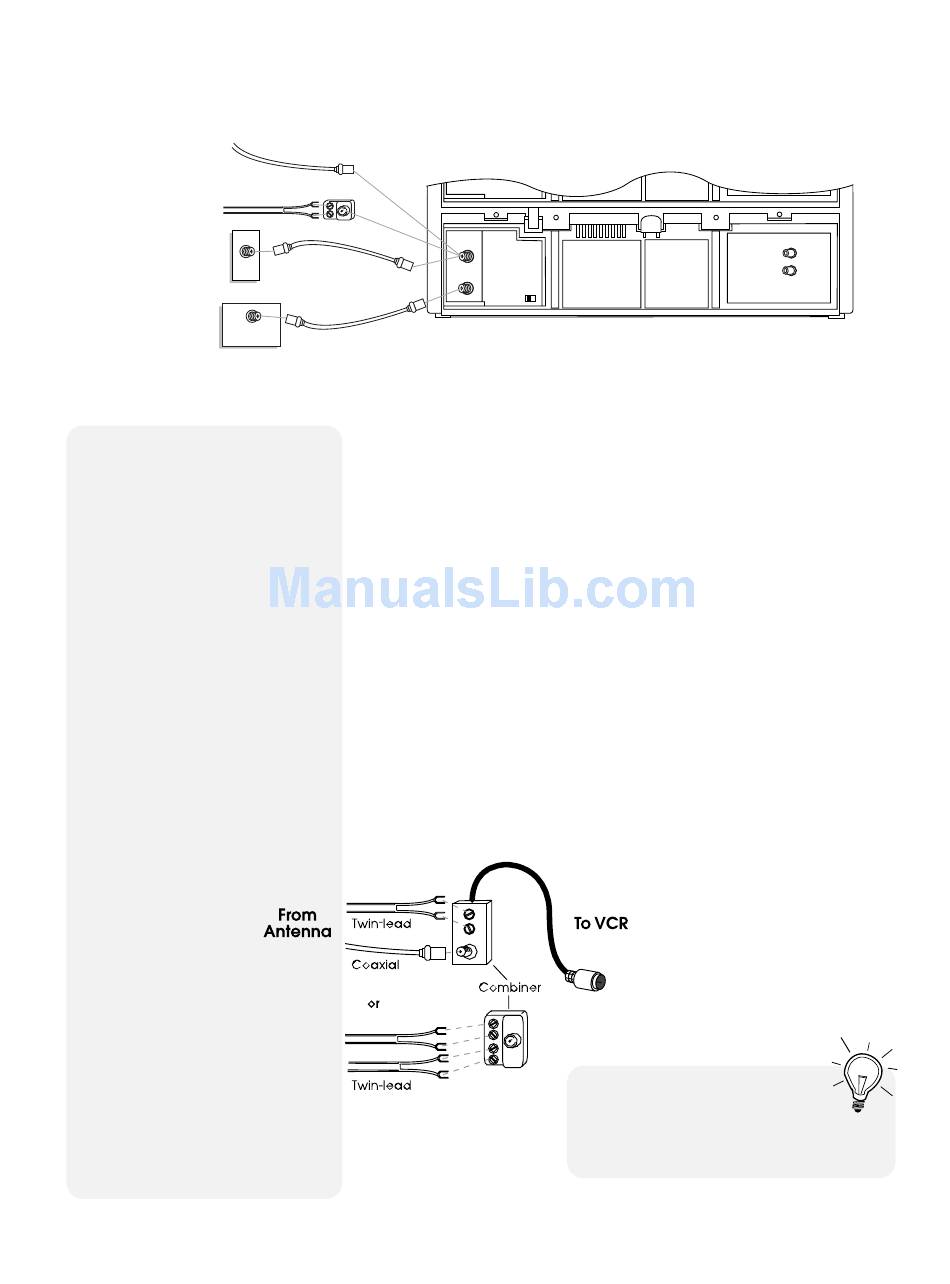

ANTENNA CABLES
(not supplied)
CABLE
OUTLET
TV BACK
PANEL
If you have separate VHF and
UHF antennas you will need to
purchase a combiner,
available at your local
electronics store.
8
DUAL-DECK VCR USER'S GUIDE
Basic Antenna/Cable Hookup
Coaxial
or
Twin Lead
Coaxial Cable
(not supplied)
VHF/UHF
Dual-Deck
VCR Cable
(supplied)
1
Connect the Antenna/Cable to the VCR - Disconnect
the antenna or cable from your TV and connect it to the
ANT. IN jack on the back of your VCR. If your antenna
cable is twin-lead, you will need to purchase an adapter,
available at your local electronics store.
2
Connect the VCR to Your TV - Attach the supplied RF
Coaxial Cable from the TV OUT connection on the back
of the VCR to the VHF IN or CABLE IN connection on
the back of your TV.
3
Set the channel on the back of your VCR to 3 or 4
(whichever is not being used by a local TV broadcast).
4
Turn on the power for your VCR and your TV.
5
Tune your TV to channel 3 or 4 (whichever you set as
the output channel in step 3).
6
Connection is complete! Turn to Chapter 2 to famil-
iarize yourself with the location of your Dual-Deck
controls, or turn to Chapter 3 for Initial Settings.
ANT. IN
TV OUT
CH 3 CH 4
DUAL-DECK VCR BACK PANEL
I
f your TV has separate video
and audio input connections, you
will achieve best results by using the
Monitor Connections hookup on page 43.
OUT
VIDEO
AUDIO
