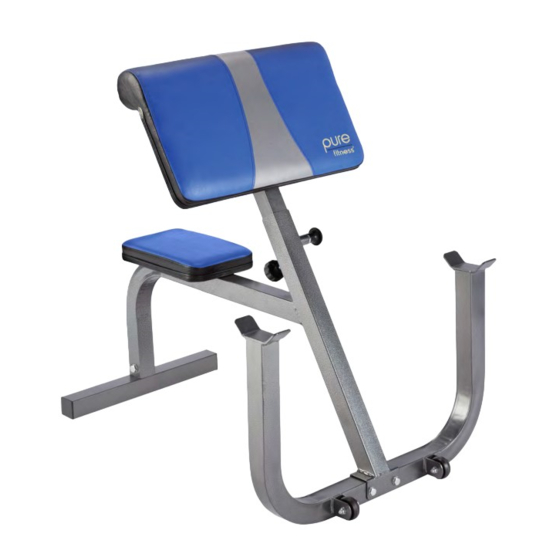

- Page 1 PREACHER CURL BENCH MODEL# 840PC PRODUCT MANUAL - VERSION 5.20.01 FOR AGES: WEIGHT LIMIT: TO BUILD: TOOLS NEEDED: 158 Kgs CUSTOMER SERVICE GQBrands.com • CustomerService@GQBrands.com • 1-866-498-5269 • 4401 Samuell Blvd, Ste 150, Mesquite, TX 75149...
-
Page 2: Customer Service Information
CUSTOMER SERVICE INFORMATION Thank you for purchasing: To register you product please visit: www.globalqualitybrands.com/product-registration PREACHER CURL BENCH or Scan code: MODEL# 8640PC If you have an issue with your item, do not return. Please report items that are damaged or missing parts to the manufacturer GQ Brands within three days of delivery. - Page 3 WARNINGS ADULT ASSEMBLY REQUIRED CHOKING HAZARD - Small Parts NOT for children under 3 years of age. Please read these warnings and the information in this manual in its entirety. Failure to comply with the following instructions may increase the risk of serious injury and/or death: •...
-
Page 4: Parts List
PARTS LIST Frame Leg Main Frame Weight Support Preacher Frame Wheel Seat Cushion Preacher Cushion M10x70mm Bolt 2” Square End Cap 10 - 11 - 12 - 13 - M8x40mm Bolt M10x75mm Bolt Lock Knob M8 Washer 17- M10 Nut 14 - M8 Nut M10x25mm Bolt... - Page 5 PARTS LIST Part # Description Part# Description Frame Leg M8 x 40 Bolt Main Frame M10 x 75 Bolt Weight Support Lock Knob Preacher Frame M8 Washer Wheel M8 Nut Seat Cushion M10 x 25 Bolt Preacher Cushion M10 Washer 2”...
- Page 6 ASSEMBLY INSTRUCTIONS STEP 1: Locate: 1x Frame Leg (1) 1x Main Frame (2) 1x Weight Support (3) 2x Wheels (5) 2x 2” Square End Caps (8) 1x M10*70 Bolt (9) 2x M8*40 Bolts (10) 2x M10*75 Bolts (11) 4x M8 Washers (13) 2x M8 Nuts (14) 6x M10 Washers (16) 3x M10 Nuts (17)
- Page 7 ASSEMBLY INSTRUCTIONS B. Position the Weight Support (3) so that the Wheel Brackets on the base are facing out. Place the bracket on the front of the Main Frame (1) onto the center of the Weight Support so that the holes in both parts are lined up.
- Page 8 ASSEMBLY INSTRUCTIONS STEP 2: Locate: 1x Preacher Cushion (7) 1x Preacher Frame (4) 1x Seat Cushion (6) 1x Lock Knob (12) 2x M10*70 Bolts (9) 2x M10*25 Bolts (15) 4x M10 Washers (16) A. Place the Seat Cushion (6) on the Main Frame (1) lining the cushion to the two holes near the rear of the frame.
- Page 9 ASSEMBLY INSTRUCTIONS B. Place the Preacher Cushion (7) on the Preacher Frame (4) so the holes in the frame are lined up to the pre-drilled holes in the cushion. Thread 2x M10 Washers (16) onto the 2x M10*25 Bolts, and secure the Cushion to the Frame. Once assembled, slide the Preacher Frame down into the opening in the front of the Main Frame (1).
-
Page 10: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS • Question: "Is there any maintenance I • Question: "Something was missing from • Question: “How should I clean my Bench?” need to do for my Bench?" the packaging," "I need to purchase a replacement part" or "I discovered a Answer: you should clean this equipment a solution of warm water and non- Answer: Before each use, you should...
