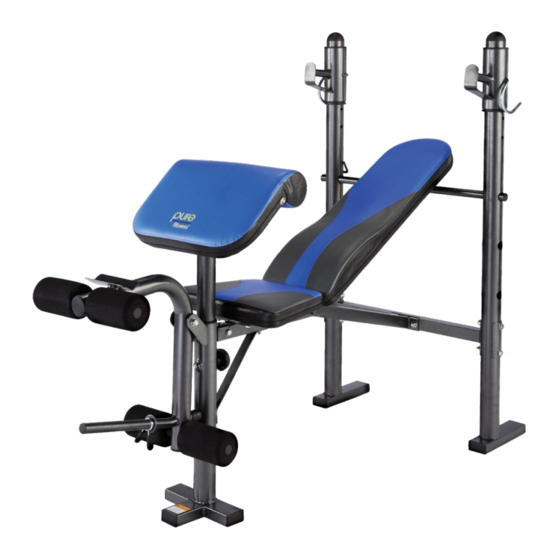

Multi purpose mid width weight bench
Hide thumbs Also See for 8638MB:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
FOR AGES:
WEIGHT LIMIT:
13+
CUSTOMER SERVICE
GQBrands.com • CustomerService@GQBrands.com • 1-866-498-5269 • 4401 Samuell Blvd, Ste 150, Mesquite, TX 75149
MULTI PURPOSE MID WIDTH
WEIGHT BENCH
MODEL# 8638MB / PRODUCT MANUAL - VERSION 07.18.04
TO BUILD:
400
Lbs
181 Kgs
TOOLS NEEDED:
1
X

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8638MB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pure Fitness 8638MB

Summary of Contents for Pure Fitness 8638MB

  • Page 1 MULTI PURPOSE MID WIDTH WEIGHT BENCH MODEL# 8638MB / PRODUCT MANUAL - VERSION 07.18.04 FOR AGES: WEIGHT LIMIT: TO BUILD: TOOLS NEEDED: 181 Kgs CUSTOMER SERVICE GQBrands.com • CustomerService@GQBrands.com • 1-866-498-5269 • 4401 Samuell Blvd, Ste 150, Mesquite, TX 75149...

  • Page 2: Customer Service Information

    CUSTOMER SERVICE INFORMATION Thank you for purchasing: MULTI PURPOSE BENCH MODEL# 8638MB At GQBrands®, we want all of our customers to be completely To order these parts, or if you have any other questions or concerns satisfied with their purchase. Take time to review the contents of the...
  • Page 3 • ALWAYS use a spotter when working out the machine to reduce the possibility of with total weights of over 50 LBS. slipping during use. • NEVER allow more than one person at a • Warm up at least 5-10 minutes before time on this product. 8638MB...

  • Page 4: Parts List

    PARTS LIST Upright Frame Posts Front Leg Weight Support Collar Backrest Support Tube Support Tube Preacher Frame Leg Lift Tube Control Brace Preacher Cushion Back Cushion Seat Cushion Flat Plate Round Plate Anti-Tip Hook-Right Backrest Tube Anti-Tip Hook-Left Frame Leg Tube Support Plate GQBrands.com CustomerService@GQBrands.com...
  • Page 5 Large Round Plug Post Cap Preacher Curl Sleeve Collar Sleeve Bolt M10 80mm Flat Washer M10 Bolt M10 60mm Flat Washer M8 Bolt M10 85mm Bolt M8 55mm Nut M10 Bolt M8 16mm Nut M8 Bolt M8 40mm 8638MB...

  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTIONS STEP 1 31- Bolt M10 80mm 37- Flat Washer M10 39- Nut M10 GQBrands.com CustomerService@GQBrands.com 1-866-498-5269...
  • Page 7 ASSEMBLY INSTRUCTIONS STEP 2 STEP 3 STEP 4 8638MB...
  • Page 8 ASSEMBLY INSTRUCTIONS STEP 5 Bolt M8 16mm Flat Washer M8 STEP 6 24- Rectangular End Cap 25- 1" Square End Cap GQBrands.com CustomerService@GQBrands.com 1-866-498-5269...
  • Page 9 ASSEMBLY INSTRUCTIONS STEP 7 34- Bolt M8 55mm 35- Bolt M8 16mm 38- Flat Washer M8 40- Nut M8 8638MB...
  • Page 10 ASSEMBLY INSTRUCTIONS STEP 8 32- Bolt M10 60mm 37- Flat Washer M10 39- Nut M10 GQBrands.com CustomerService@GQBrands.com 1-866-498-5269...
  • Page 11 ASSEMBLY INSTRUCTIONS STEP 9 36- Bolt M8 40mm 38- Flat Washer M8 8638MB...
  • Page 12 ASSEMBLY INSTRUCTIONS STEP 10 25- 1" Square End Cap GQBrands.com CustomerService@GQBrands.com 1-866-498-5269...
  • Page 13 ASSEMBLY INSTRUCTIONS STEP 11 36- Bolt M8 40mm 38- Flat Washer M8 8638MB...
  • Page 14 ASSEMBLY INSTRUCTIONS STEP 12 STEP 13 STEP 14 ft (7), 4x Foam Rollers Butterfly Weight Lock sher (37) onto the M10 Washer and a se bars centered and the Front Leg. Place e Cross Bars. Insert 2x es of the 2x Backrest krest Tubes against the ar, use 4x M8 Wash- e and lower the back...
  • Page 15 ASSEMBLY INSTRUCTIONS STEP 15 STEP 16 STEP 17 8638MB...
  • Page 16 ASSEMBLY INSTRUCTIONS STEP 18 STEP 19 35- Bolt M8 16mm 38- Flat Washer M8 STEP 20 GQBrands.com CustomerService@GQBrands.com 1-866-498-5269...
  • Page 17 ADJUSTABLE POSITION OPTIONS STEP 21 Option A Option B STEP 22 Option A Option B Option C 8638MB...

  • Page 18: Customer Service

    ADJUSTABLE POSITION OPTIONS STEP 23 Option A Option B Option C Option D NOTES CUSTOMER SERVICE GQBrands® 1-866-498-5269 CustomerService@GQBrands.com 4401 Samuell Blvd, Ste 150 Mesquite, TX 75149 GQBrands.com CustomerService@GQBrands.com 1-866-498-5269...
