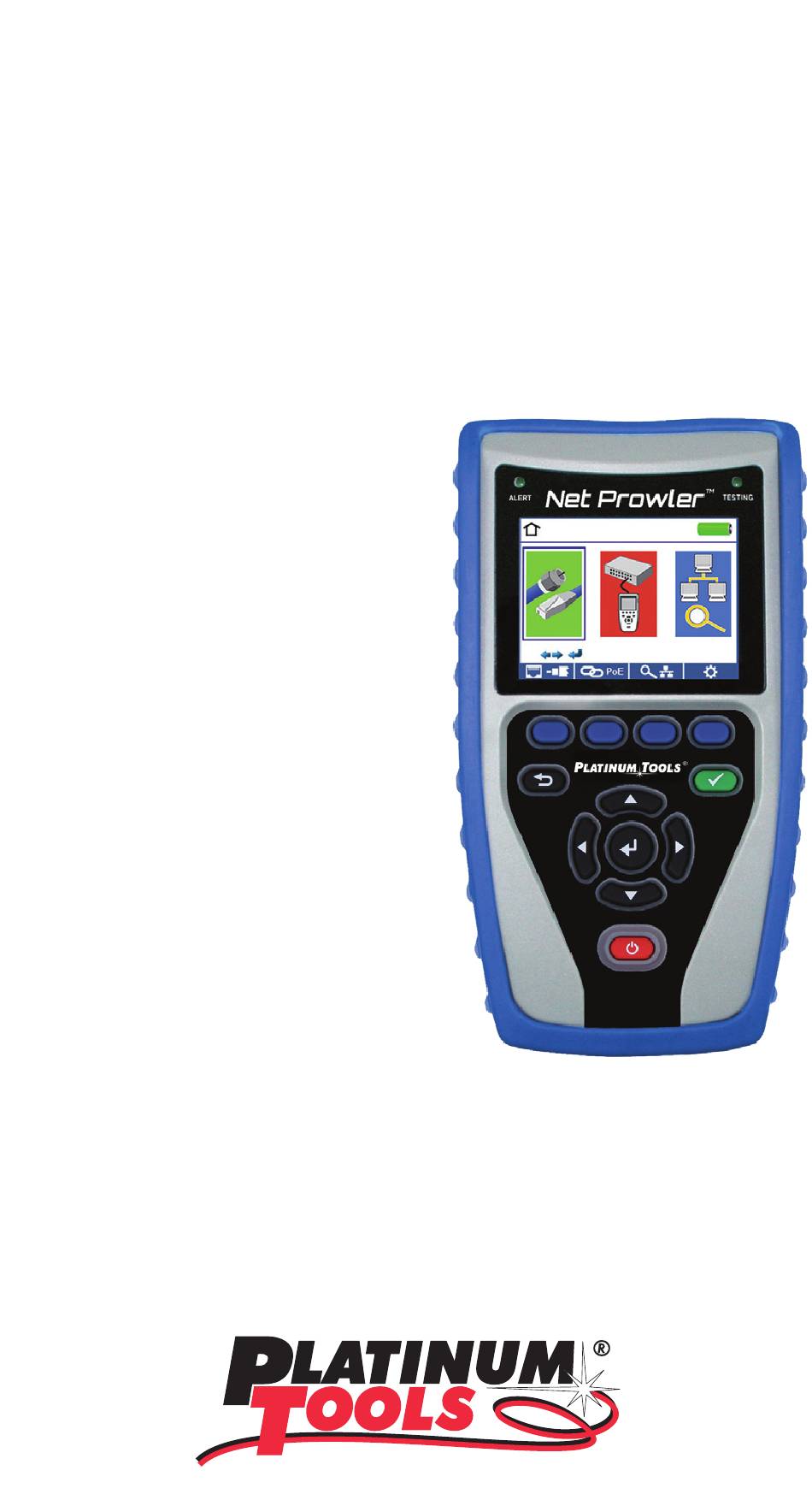

Platinum Tools Net Prowler TNP800 User Manual

Net Prowler
Identify, Monitor & Test LAN Issues
y Displays a map of IPV4/IPV6 devices on a sub-network
and protocols detected
y Pings IP addresses or URL's
y Tests TCP/UDP
y Displays length measurement for each pair in
feet or meters using TDR technology
y Detects presence of PoE and class of PoE per
IEEE 802.3af/at with load test for voltage drop
y Detects and reports current link speed and
link capabilities for active Ethernet drops, up
to 1 Gbps
y Link light to identify location on a hub/switch/
router port
y Tests Ethernet cable configuration and verifies
connectivity while conducting tests for opens,
shorts, miswires, split pairs, and reverses
y Generates selectable tones on selected pins for
use with tone tracers
y Supports up to 8 testing & ID remotes for
network & telephone cables
y Supports up to 20 network & coax ID-only
mapping remotes
y View saved cable tests
y Full color graphical wire-mapping
y Ability to define cable name, save cable tests,
and print all results (cable testing & network testing)
y Multilingual (English, French, Spanish, Italian, and
German)
User Manual
TM
TNP700
