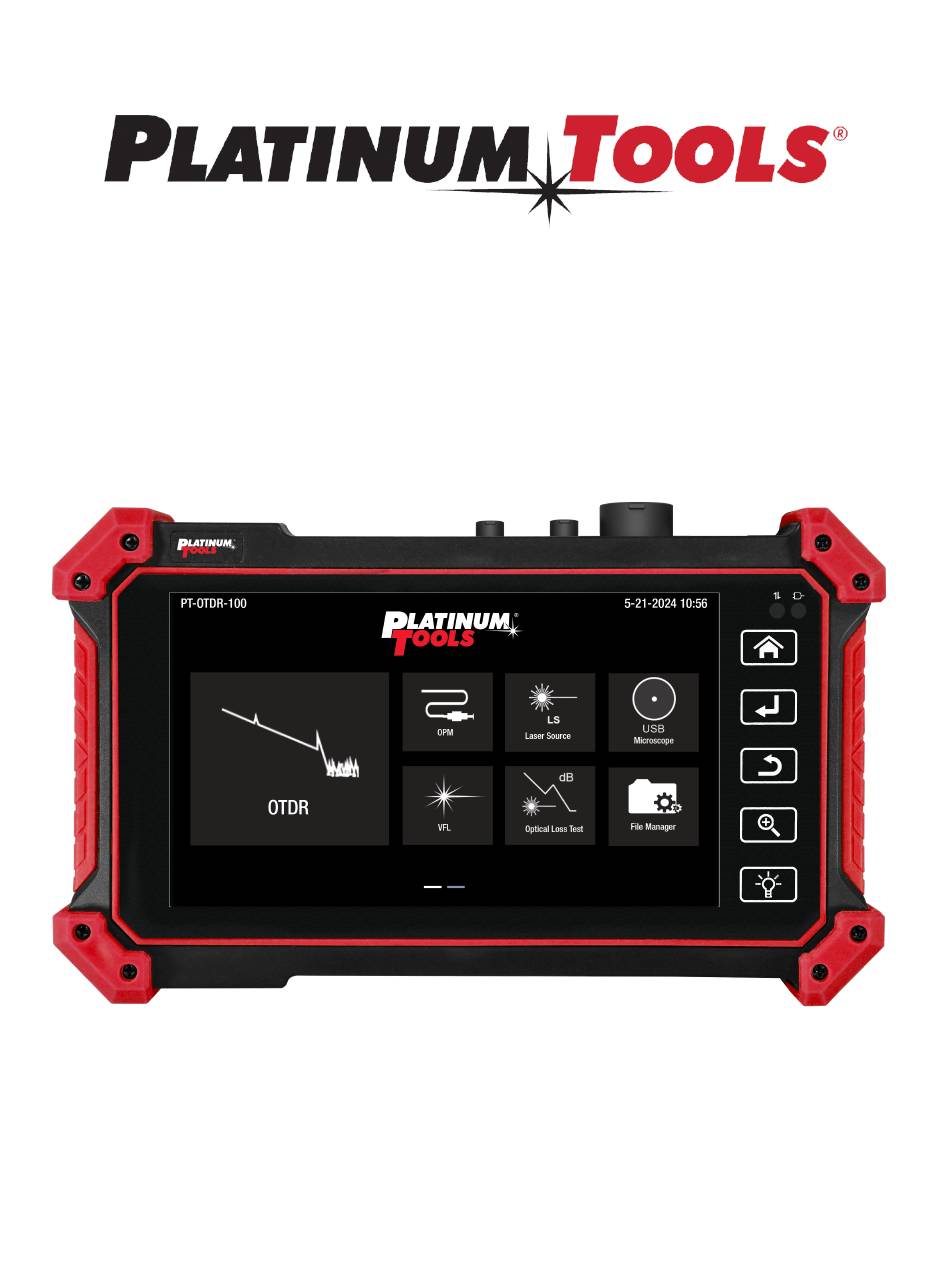

  • Page 1 PT-OTDR-100 Manual...
  • Page 2 Thank you for purchasing the Platinum Tools mini OTDR tester. Before using it, please read the manual thoroughly to ensure proper usage. For safe operation of the OTDR tester, carefully review the "Safety Information" section in the manual. Keep the manual in a secure place for future reference.

  • Page 3: Battery Installation

    1. Battery Installation Note: The tester includes a built-in lithium-ion rechargeable battery. For safety during transportation, the battery cable inside the battery compartment should be disconnected. Before using the instrument, ensure that the battery cables inside the battery compartment are properly connected. To power on or off the tester, press the power key continuously.

  • Page 4: Operation Sequence

    2.3 Operation Sequence Fiber Connection → Parameter Setup → Testing → Tracer Viewing • 2.31 Fiber Connection Connect the fiber to the top optical interface of the OTDR using an SC-UPC optical connector. Note: When using the OTDR to measure optical fiber, ensure no active light exists in the measured optical fiber to prevent damage to the instrument.

  • Page 5: Parameter Settings

    2.33 Expert OTDR Test Manually select parameters such as range and pulse width for more precise test results. Zoom in on the curve tracer and view detailed event maps. Quick tests can configure parameters like laser wavelength, distance range, pulse width, and measurement duration.
  • Page 6 2. Parameter Setting Laser Wavelength: User-selectable options include 1310nm, 1550nm, and • 1610nm for single mode fiber. Up to two wavelengths can be simultaneously selected for measurement and analysis, but only under average measurement mode. Distance Range: Options include "auto, 500m, 1Km, 2Km, 5Km, 10Km, 25Km, •...
  • Page 7 3. Threshold Setting In the Event Map, set thresholds for evaluating fusion and connector points: • Total Loss: Fiber link loss, range 0-60dB. Reflection Loss (Connector): Loss at connectors, range 0-60dB. Non-reflection Loss (Fusion Point): Loss at fusion or bend points, range 0- 60dB.
  • Page 8 2.35 Trace Tool To initiate testing after configuring and saving parameters, click "Start." The • interface will display the selected wavelength, distance range, pulse width, measurement duration, and refractivity. Upon completion of testing, a trace will be generated. Click "Stop" to conclude the testing process. Trace Definition: Following the initial measurement, the trace presents the •...
  • Page 9 Initial Event: The "initial event" on the OTDR trace marks the starting point of the • optical fiber. By default, it appears at the first event, typically the initial connector of the OTDR, in the tested optical fiber. This event is classified as a reflection event. End Event: The "end event"...
  • Page 10 indicates the nth event currently displayed on the trace graph. "Category" specifies the event type. "Position" denotes the distance from the optical fiber's initial point to the event point. "Plug-in loss" quantifies the event's insertion loss. "Attenuation coefficient" details the fiber's attenuation properties from the last event to the current one.
  • Page 11 Scale Plate Information • The scale plate information comprises details such as the position of points A or B, • plug-in loss at points A or B, backscattering coefficient at points A or B, accumulated loss at points A or B, distance of the A-B section, loss between the two points of the A-B section, attenuation coefficient between the two points of the A-B section, and LSA (local specific attenuation) coefficient of the A-B section.
  • Page 12 2.38 Trace Zoom Touch Screen Zoom Instructions Use two fingers to zoom, with the center point between them as the zoom center. • When the angle between your fingers is less than 45 degrees horizontally, zoom • horizontally. When the angle is more than 45 degrees horizontally, zoom vertically. •...

  • Page 13: Data Saving

    Track Switching: This button is effective only when multiple curve tracks are open. After tapping the button on the touch screen, you can switch between different curves. 2.39 Data Saving Click “Quick Save” to automatically name and save the file according to the naming •...
  • Page 14 2.42 Analysis of “Multi-traces Setting” Click on trace 1/2/3/4 in “Multi-traces Setting” to display up to four traces simultaneously. Different colors are used to distinguish the opened traces. 2.43 Instruction for “Trace 1/2/3/4” Button Button icons in the trace operation area apply to all opened traces simultaneously. You can switch the current trace using the trace switching button or by directly clicking “C 1”...

  • Page 15: Test Report

    2.44 Event Map Displays the quantity of events, link loss, link length, and link attenuation coefficient. Click again to switch to trace view. Initial Event: The starting point of the link. Reflection Event: Connector, shown as a peak signal. Non-reflection Event: Fusion point or optical fiber bending, shown as a drop in optical power.
  • Page 16 After setting the reference value, connect the optical device to the OTDR and LS interfaces on the instrument to test the insertion loss of optical passive devices. Click "Loss Test" under optical fiber tests to enter the interface. Calibration: 1. Connect the standard jumper to the meter’s OTDR and LS ports. 2.

  • Page 17: Laser Source

    After setting the reference, connect the tested optical device to the meter’s OTDR and LS ports and click “Start.” The relative power displayed on the interface will be the insertion loss value of the tested device. For accurate results, calibrate before each test. 4.

  • Page 18: Optical Power Meter

    5. Optical Power Meter Click the icon to enter the optical power meter interface, which supports five wavelengths: 1625nm, 1550nm, 1490nm, 1310nm, 1300nm, and 850nm. It displays linear or nonlinear optical power and is used for optical power testing and relative measurement of fiber link loss.
  • Page 19 Evasive 1Hz / Evasive 2Hz: Click these buttons to enter the corresponding pulse • modes. Time Off: Click this button to turn off the VFL. You can set a timed turn-off (5 mins, • 10 mins, 30 mins, 60 mins, or 120 mins). 7.
  • Page 20 8. RJ45 Cable TDR Test 1. Connect the cable to the LAN port of the tester. 2. Connect or disconnect the other end from any device. 3. Enter the “RJ45 Cable TDR Test” app to test the cable’s length. Ensure no device is connected for accurate measurement.
  • Page 21 9. Specifications OTDR Technical Specifications Wavelength (nm) Optional * 1550 1310/1550 1550 1310/1550 1610 Dynamic range(dB) Optional* 28/26 28/26 Pulse width (ns) 5,10,20,30,50,80,160,300,500,800,1000,2000,4000,6000,10000,20000 Testing range ≤150 Km Event blind zone (m) ≤1.6m Attenuation blind zone (m) ≤8m Linearity (dB/dB) ±0.05 dB/ dB Loss threshold (dB) 0.05 Loss resolution ratio (dB)
  • Page 22 Specification Size & Display 5.55 inch OLED screen display, 1280*720 resolution Network Port 10/100/1000M auto adapt (optional) RJ45 cable TDR test Test cable’s length, Max testing up to 600 meter(optional) Power output 5V 1A power output Test UTP cable connection status and display on the screen. Read the number on the screen. UTP cable test detect the near-end, mid-end and far-end fault point of RJ45 cable connector, also can test shield cable...
