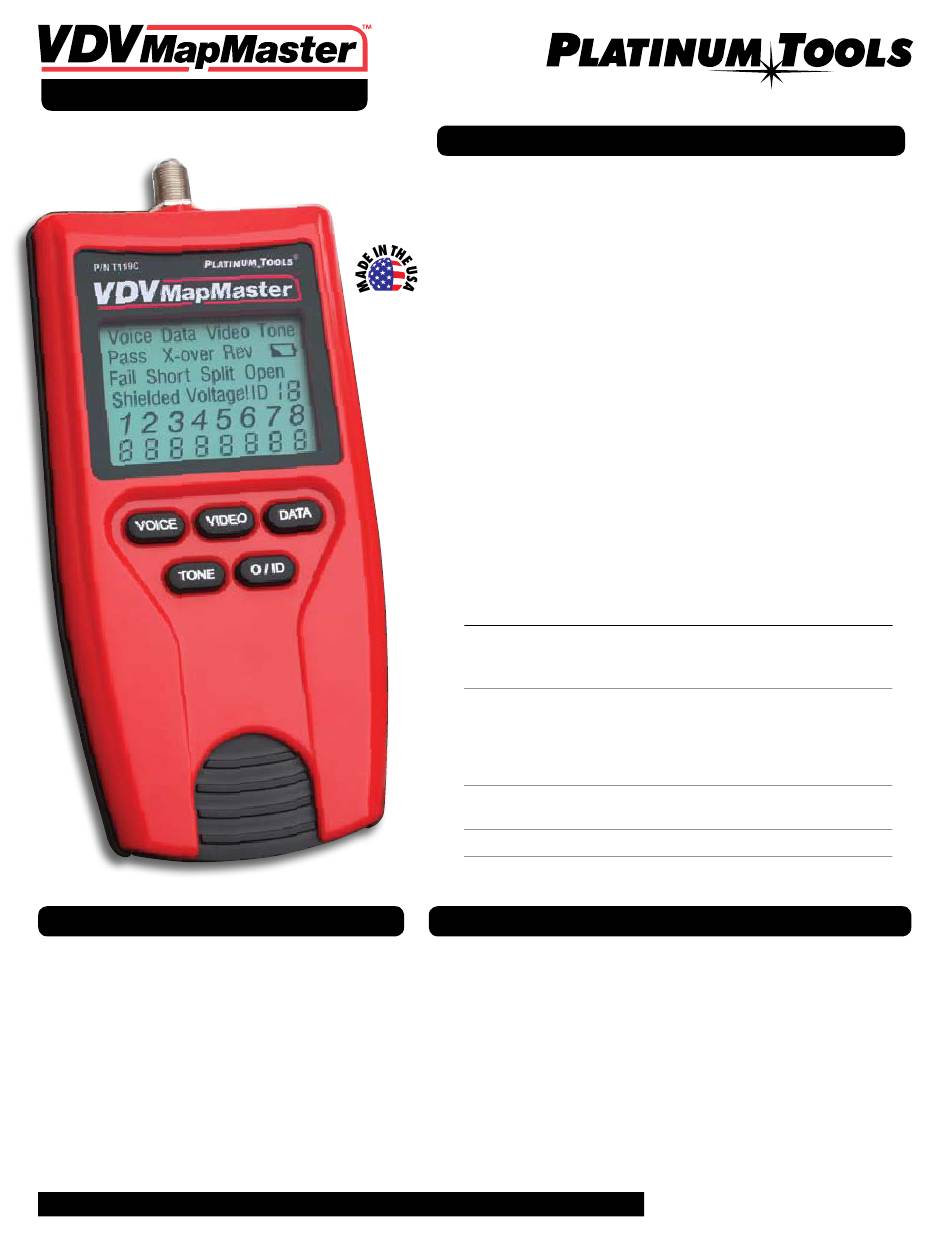

Platinum Tools VDV MapMaster Quick Start Manual

outlined
Voice, Data and Video Tester
Instruction Sheet: P/N T119
BATTERY REPLACEMENT
1) Remove single screw in the middle of the back
of the VDV MapMaster™ with a #1 Phillips head
screwdriver. Remove the battery door.
2) Remove the old battery and disconnect
battery cable.
3) Replace with an ANSI 1604A, 9 volt alkaline
battery (Energizer 522, Duracell Mn1604). Reattach
cable and insert into battery compartment.
4) Replace battery door and screw.
DO NOT OVERTIGHTEN!
1
GENERAL SPECIFICATIONS

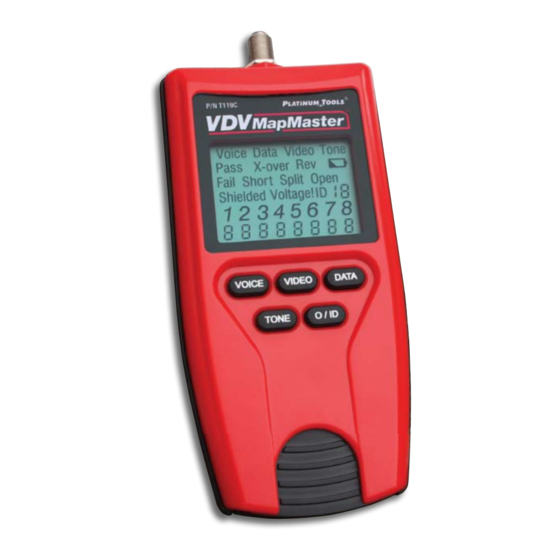

The Platinum Tools, VDV MapMaster™ is a portable voice-data-video
cable tester. It tests and troubleshoots RJ11, RJ12, RJ45 and F-conector
terminated cables and provides built-in tone generation for cable tracing.
• Dimensions: 6.4˝ x 2.8˝ x 1.4˝ (16.3 x 7.1 x 3.6 cm)
• Weight: 9.0 oz. (256 grams) with battery and remote
• Operating Temperature: 0˚C/32˚F to 50˚C/122˚F
• Humidity: 10% to 90%, non-condensing
• Maximum Voltage between any two connector pins without damage:
RJ Jack: 66V DC or 55V AC
F-Connector: 50V DC or AC
• Battery Life: 9V alkaline battery typical
Standby: 4 years
Active: 425 hours
• Cable Types: Shielded or Unshielded; Cat7, Cat6x, Cat5e,
Cat5, Cat4, Cat3, Coax
• Maximum RJ Cable Length: 0 to 1,000 feet (305 meters)
• Minimum Cable Length for Split Pair Detection:
1.5 feet (0.5 meters)
• Maximum Coax Cable Length:
Coax Type Belden P/N
RG-58A/U 8259
9311
7806A
RG-59/U 9310
9259
8241A
9275
9659
RG-6/U 1694A
1152A
Mini Coax 9221
RG-11/U 1523A
WARNINGS
To ensure safe operation and service of the tester, follow these instructions.
Failure to observe these warnings can result in severe injury or death.
• The VDV MapMaster™ is designed for use on unenergized cabling
systems. Connecting the VDV MapMaster to live AC power may
damage it and pose a safety hazard for the user.
• Poorly terminated RJ plugs have the potential to damage the jacks on the
VDV MapMaster™. Visually inspect an RJ plug before inserting it into the
tester. The contacts should always be recessed into the plastic housing
of the plug. Plugging 6-position plugs into the 8-position jack on the
tester has the potential to damage the outermost contacts of the jack
unless the plug is specifically designed for that purpose.
Center + Shield Maximum Length
14.9Ω / 1,000 ft 6,710ft (2,045m)
25.8Ω / 1,000ft 3,876ft (1,182m)
11.8Ω / 1,000ft 8,475ft (2,583m)
24.1Ω / 1,000ft 4,150ft (1,265m)
23.5Ω / 1,000ft 4,255ft (1,297m)
49.7Ω / 1,000ft 2,010ft (613m)
78.5Ω / 1,000 1,275ft (389m)
17.6Ω / 1,000ft 5,682ft (1,732m)
7.2Ω / 1,000ft 13,889ft (4,234m)
29.8Ω / 1,000ft 3,360ft (1,025m)
111Ω / 1,000ft 900ft (275m)
15.1Ω / 1,000ft 6,623ft (2,019m)
www.platinumtools.com
©2011 Platinum Tools Inc. All rights reserved. 1/11
®
