Platinum Tools VDV MapMaster 2.0 Instruction Sheet

Voice, Data, Video
Instruction Sheet: P/N T129
BATTERY REPLACEMENT
1) Remove single screw in the middle of the back
of the VDV MapMaster2.0™ with a #1 Phillips head
screwdriver. Remove the battery door.
2) Remove the old battery and disconnect
battery cable.
3) Replace with an ANSI 1604A, 9 volt alkaline
battery (Energizer 522, Duracell Mn1604). Reattach
cable and insert into battery compartment.
4) Replace battery door and screw.
DO NOT OVERTIGHTEN!
1
+
Length
GENERAL SPECIFICATIONS

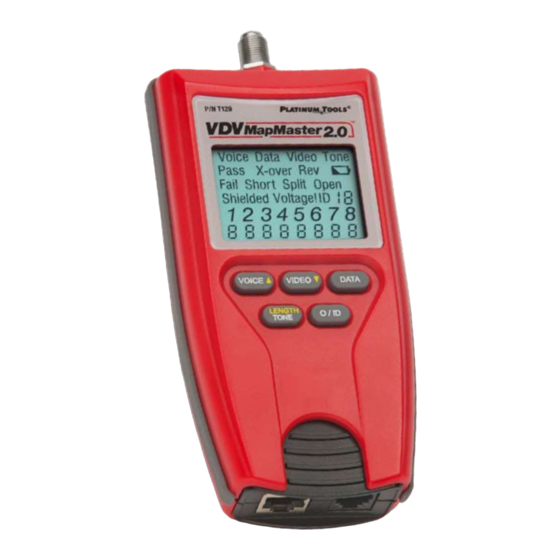

The Platinum Tools, VDV MapMaster2.0™ is a portable voice-data-video cable
tester with length measurement. It tests and troubleshoots RJ11, RJ12, RJ45 and
F-conector terminated cables and provides built-in tone generation for cable tracing.
• Dimensions:
• Weight: 9.0 oz. (256 grams)
• Operating Temperature:
• Storage Temperature:
• Humidity: 10% to 90%,
• Maximum Voltage between
• Battery Life: 9V alkaline
• Cable Types: Shielded or
• Maximum Coax Cable Length:
WARNINGS
To ensure safe operation and service of the tester, follow these instructions.
Failure to observe these warnings can result in severe injury or death.
• The VDV MapMaster2.0™ is designed for use on unenergized cabling
systems. Connecting the VDV MapMaster2.0 to live AC power may
damage it and pose a safety hazard for the user.
• Poorly terminated RJ plugs have the potential to damage the jacks on the
VDV MapMaster2.0™. Visually inspect an RJ plug before inserting it into
the tester. The contacts should always be recessed into the plastic housing
of the plug. Plugging 6-position plugs into the 8-position jack on the
tester has the potential to damage the outermost contacts of the jack
unless the plug is specifically designed for that purpose.
6.4˝ x 2.8˝ x 1.4˝ (16.3 x 7.1 x 3.6 cm)
with battery and remote
0˚C/32˚F to 50˚C/122˚F
-20˚/-4˚F to 60˚C/140˚F
non-condensing
any two connector pins without
damage:
RJ Jack: 66V DC or 55V AC
F-Connector: 50V DC or AC
battery typical
Standby: 4 years
Active: 425 hours
Unshielded; Cat7, Cat6x, Cat5e,
Cat5, Cat4, Cat3, Coax
Coax Type Belden P/N
RG-58A/U 8259
9311
7806A
RG-59/U 9310
9259
8241A
9275
9659
RG-6/U 1694A
1152A
Mini Coax 9221
RG-11/U 1523A
99 Washington Street
Melrose, MA 02176
TestEquipmentDepot.com
• Maximum RJ Cable Length:
0 to 1,000 feet (305 meters)
• Minimum Cable Length for Split
Pair Detection: 1.5 feet (0.5 meters)
• Low Battery: Icon flashes when
battery voltage falls below 6V
• Measurement Technology:
Capacitance testing
• Length Accuracy Without
Length Constant Accuracy:
± 3% plus ± 1 foot
• Cable Length Measurement:
1 to 2,000 ft CAT5E cable with
15 pF/ft length constant
• Default Length Constant:
Restored with power on reset
• Voice: 17.4 pF/ft
• Video: 16.5 pF/ft
• Data: 15 pF/ft
Complies with Conformité
Européenne directives.
Center + Shield Maximum Length
14.9Ω / 1,000 ft 6,710ft (2,045m)
25.8Ω / 1,000ft 3,876ft (1,182m)
11.8Ω / 1,000ft 8,475ft (2,583m)
24.1Ω / 1,000ft 4,150ft (1,265m)
23.5Ω / 1,000ft 4,255ft (1,297m)
49.7Ω / 1,000ft 2,010ft (613m)
78.5Ω / 1,000 1,275ft (389m)
17.6Ω / 1,000ft 5,682ft (1,732m)
7.2Ω / 1,000ft 13,889ft (4,234m)
29.8Ω / 1,000ft 3,360ft (1,025m)
111Ω / 1,000ft 900ft (275m)
15.1Ω / 1,000ft 6,623ft (2,019m)
©2012 Platinum Tools Inc. All rights reserved. 5/12
