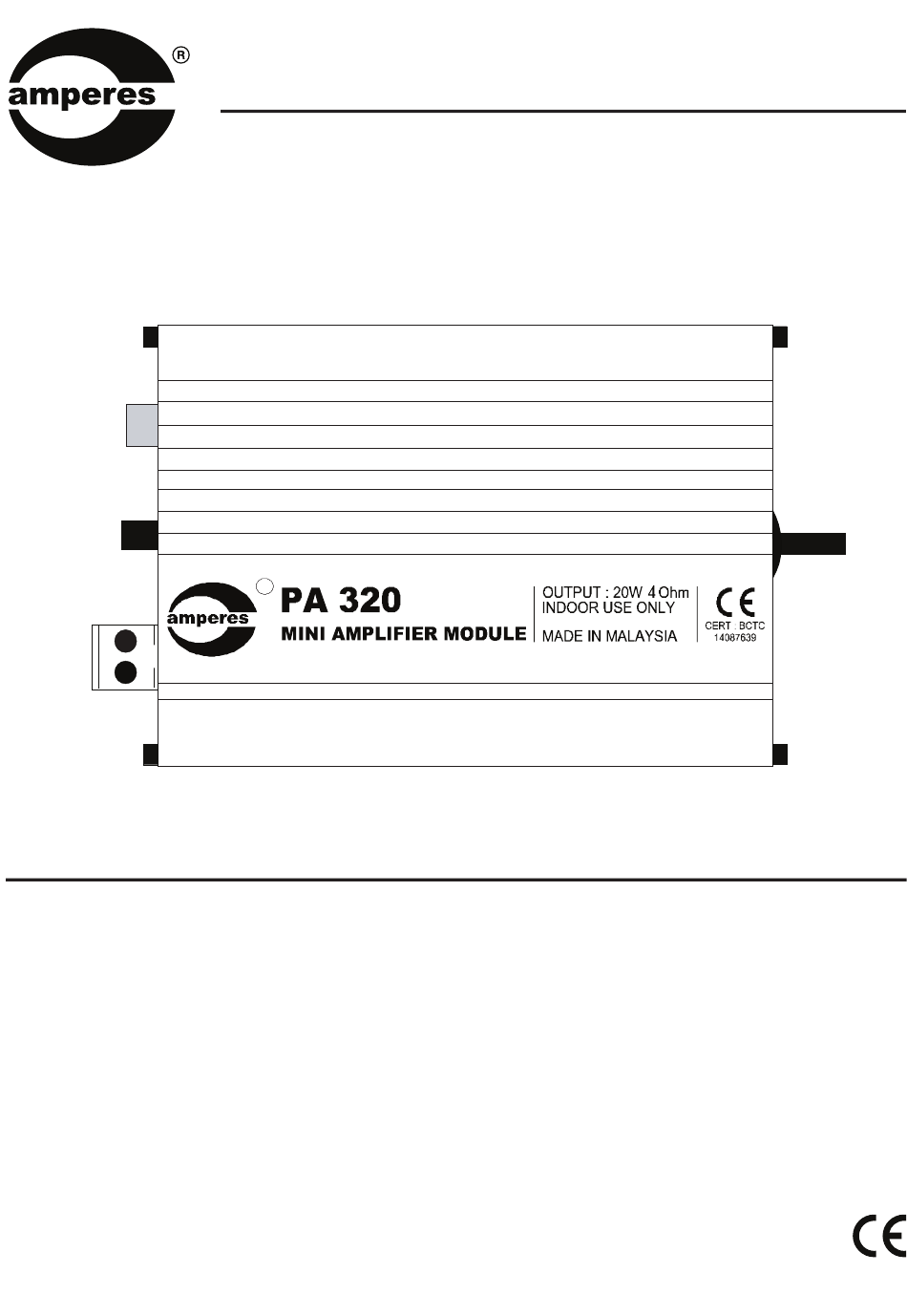

INSTRUCTION MANUAL
PA320
20W Mini Amplifier
R
Thank you
for choosing another quality product from Amperes Electronics.

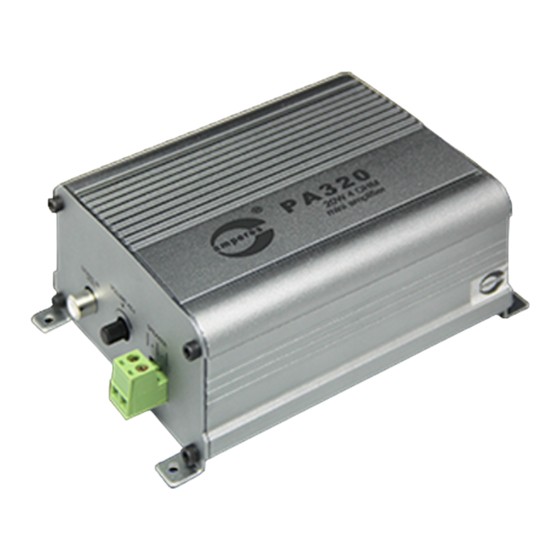

Amperes PA320 is a mini amplifier used to amplify BGM signal to a speaker of 4 or 8 Ohm, such as from TV output to a bathroom
speaker in a hotel room. Amperes VC7805 volume controller and VP7810 BGM-Speaker patch panel can be installed if required to
allow emergency paging to be announced at the speaker.
Other applications include simple mic calling system at counters or as an amplifier module to some other system which need to
broadcast audio output to a speaker, ie. queue management system or telephone intercom.
VER 1 / 2017

Advertisement

loading
Need help?

Need help?

Do you have a question about the PA320 and is the answer not in the manual?

Questions and answers

Summary of Contents for Amperes PA320

  • Page 1 Amperes Electronics. Amperes PA320 is a mini amplifier used to amplify BGM signal to a speaker of 4 or 8 Ohm, such as from TV output to a bathroom speaker in a hotel room. Amperes VC7805 volume controller and VP7810 BGM-Speaker patch panel can be installed if required to allow emergency paging to be announced at the speaker.
  • Page 2 Source from CD or MP3 Player line output using mono mode, either L or R. 3. VOLUME ADJUSTMENT Volume adjustment knob for control the volume from min to max. 4. OUTPUT TO SPEAKER Outgoing are available to 4 / 8 Ohm speaker. PAGE 2 PA320 | 20W Mini Amplifier...
  • Page 3 Input volume preset Dimensions (WxHxD) 130 x 55 x 95 mm Weight 790 g Note: The above specifications are correct at time of printing but subjected to changes without prior notice due to product improvements. PA320 | 20W Mini Amplifier PAGE 3...
  • Page 4 Only Amperes Electronics Service Centres are allowed to make warranty repairs : a list of Amperes Electronics Service Centres may be asked for by the purchaser or send directly to Amperes Electronics Sdn Bhd at 70 Jalan Industri PBP 3, Tmn Perindustrian Pusat Bandar Puchong, 47100, Puchong, Selangor, Malaysia or its authorized dealers.
