Globalsat BT-368i User Manual

Bluetooth gps receiver
Hide thumbs Also See for BT-368i:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Setup Manual
Globalsat Technology Corporation
16F., No. 186, Jian-Yi Road, Chung-Ho City, Taipei Hsien 235, Taiwan
Tel: 886.2.8226.3799/ Fax: 886.2.8226.3899
service@globalsat.com.tw
globalsat.com.tw

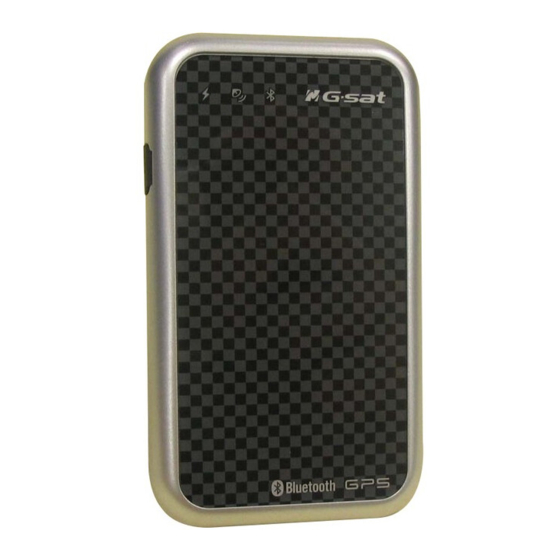

BT-368i Bluetooth GPS Receiver
USER'S GUIDE
BT-386i
USGlobalSat Incorporated
14740 Yorba Court, Chino, CA 91710
Tel:909.597.8525 / Fax:909.597.8532
sales@usglobalsat.com
usglobalsat.com
Page 1 of 15
Version 1.1
UG_BT368i_022108

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT-368i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Globalsat BT-368i

Summary of Contents for Globalsat BT-368i

  • Page 1 BT-368i Bluetooth GPS Receiver Globalsat Technology Corporation 16F., No. 186, Jian-Yi Road, Chung-Ho City, Taipei Hsien 235, Taiwan Tel: 886.2.8226.3799/ Fax: 886.2.8226.3899 service@globalsat.com.tw globalsat.com.tw BT-386i USER’S GUIDE USGlobalSat Incorporated 14740 Yorba Court, Chino, CA 91710 Tel:909.597.8525 / Fax:909.597.8532 sales@usglobalsat.com usglobalsat.com Page 1 of 15 Version 1.1...

  • Page 2: Table Of Contents

    Step 5: Interface with Your Navigation Software ... 9 5. Troubleshooting ... 10 5.1 Connecting BT-368I to a Pocket PC Device... 10 5.2 Unable to Connect to Bluetooth ... 13 5.3 Unable to Get a GPS Fix Signal ... 13 6.

  • Page 3: Product Information

    1. Product Information 1.1 Product Description BT-368i is a high performance Bluetooth GPS receiver., which uses the SiRF Star III chipset to track up to 20-satellites simultaneously. With a built-in high-performance antenna, the BT-368i ensures excellent signal reception in most all conditions.

  • Page 4: Product Specifications

    42 second 0.1 second WAAS, EGNOS, MSAS Horizontal 10 meters, 2D RMS / 1-5 meters 2D RMS, WAAS corrected 0.1 meters/second 1 micro-second synchronized to GPS time 60,000 feet (18,000 meters) 1,000 knots (515 meters/second) 20m / sec3 1 Hz...

  • Page 5: Hardware Description

    The high-polished, metallic style finish with added accessories in the retail box (AC charger + Euro plug adapter) sets the BT-368i apart from our standard BT-368 receiver, which has a silver painted trim and only the 12V car charger. All internal specification for both models are otherwise identical.

  • Page 6: Led Status Indicators

    The mini-USB port offers provides two functions: A.) As a power input to recharge the BT-368i Li-ion battery. It will require 3~4 hours to complete a full charge to the battery. Connect the included USB charging cable to either an active USB port on a PC, or the included 12VDC car charger or 110VAC wall charger.

  • Page 7: Package Contents

    3. Package Contents  BT-368i GPS Receiver Unit  12VDC Car Charger  110VAC Wall Charger  USB Charging Cable  User Guide and Software Utility on CD-ROM Optional Accessories Sold Separately  USB Data Cable 12VDC Car Charger #11-BT359-005A...

  • Page 8: Getting Start

    Step 3: Getting a GPS Fix Signal Place your BT-368i in a place where it can have a clear view to the sky and monitor the green GPS LED until it begins to flash indicating is has fixed to satellite positions. This may take up to 3-minutes for the first time your BT-386i is used.

  • Page 9: Step 4: Connecting To A Bluetooth Enabled Device

    Bluetooth devices. Select the BT-386i device from the displayed list (it will appear as BT-GPS-xxxxxx) to connect or “pair” it with your BT-368I GPS Receiver. Once the Bluetooth LED begins to flash at about once per second, the link is established successfully.

  • Page 10: Troubleshooting

    5. Troubleshooting 5.1 Connecting BT-368i to a Pocket PC Device 1. Tap on [Start]. 3. Tap on Bluetooth button. BT-386i 2. Tap on [Settings]. 4. Turn on Bluetooth function. Page 10 of 15 Version 1.1...
  • Page 11 5. Tap on [New] button. 7. Tap on the [BT-GPS-xxxxxx] icon. BT-386i 6. Select [Explore a Bluetooth device] item. 8. Select BT-GPS COM Port, and then tap [Next] button. Page 11 of 15 Version 1.1...
  • Page 12 9. Tap on [Finish] button. 11. Select [Connect]. BT-386i 10. Tap and hold on BT-GPS button. 12. The connection between BT-368I and your Pocket PC is established. Page 12 of 15 Version 1.1...

  • Page 13: Unable To Connect To Bluetooth

    (2) Check that there is adequate battery power. If not, please recharge. (3) If GPS cannot obtain a fix after 10-min, use the included (or downloadable) GPSinfo utility software to create a “Cold Start” function. The GPS should be in an open view to the sky surrounding when performing this task.

  • Page 14: Safety Notice

    You acknowledge that this limitation applies to all content information or other services available from Globalsat/USGlobalsat, and whether or not Globalsat/USGlobalsat has notice of the possibility of such damages, and whether or not to circumstances giving rise to such damages may have been within the control of Globalsat/USGlobalsat.

  • Page 15: Fcc Notice

    Refund the purchase price. All replaced parts and products, and products on which a refund is made, become the property of Globalsat/USGlobalsat. New or reconditioned parts may be used in the performance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period.
