  • Page 1: User Manual

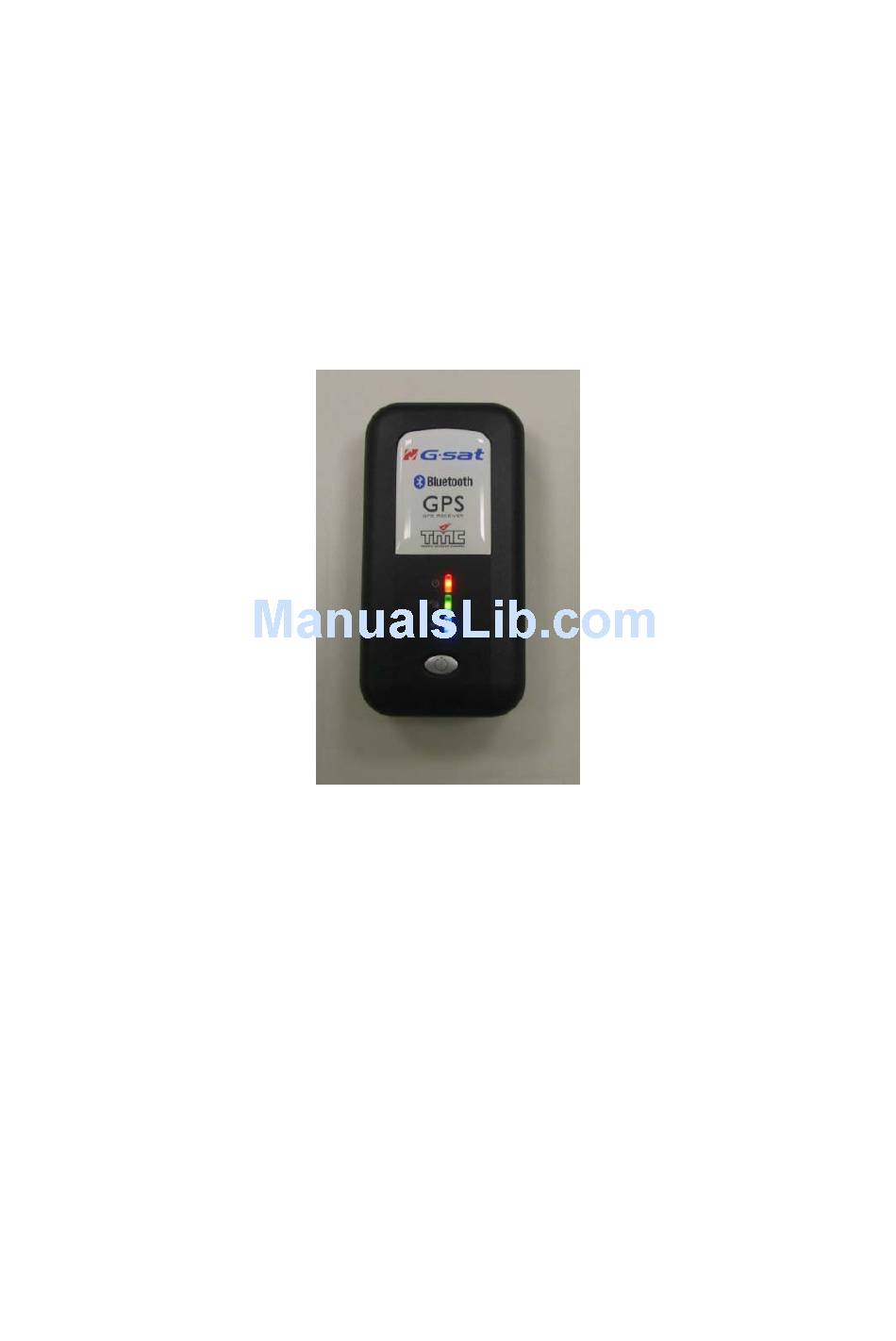

    BTT-100 / Globalsat BTT-100 User Manual Version 0.9.02...

  • Page 2: Table Of Contents

    ► Power-saving Function ............7 ► Power jack ................. 8 ► Usage ................8 ► Connect BTT-100 to a "Windows Mobile Version 5 Pocket PC"..9 Software Application ............12 ► Connect BTT-100 with your Pocket PC ........12 ► Test the RDS function ............14 Troubleshooting ..............

  • Page 3: Overview

    Overview Power status LED GPS status LED Bluetooth status LED Power button Power jack TMC antenna jack...

  • Page 4: Features And Specification

    -20 ° to 60 ° C temperature Humidity: 5% to 95% Non-condensing Output message: NMEA-0183 output protocol (Output format：GGA, GSA, GSV, RMC) + Globalsat TMC protocol 1.0 GPS Parameters General GPS Chipset: SiRF Star III Frequency: L1, 1575.42 MHz C/A code:...
  • Page 5 Channels: 20 channel all-in-view tracking Antenna Type: Built-in patch antenna Position: 10 meters, 2D RMS 5 meters, 2D RMS, WAAS enabled Velocity: 0.1 m/s Time: 1 us synchronized to GPS time Default datum: WGS-84 Reacquisition: 0.1 sec., average Hot start: 1 sec., average Warm start: 38 sec., average...

  • Page 6: Accessories

    Accessories Before you start up, make sure that your package includes the following items. If any item is missing or damaged, please contact your dealer immediately. BTT-100 Bluetooth GPS Receiver TMC antenna Car charger CD-ROM BTT-100 TMC antenna CD-ROM Car charger...

  • Page 7: Getting Started

    Blinking (Quickly): It has already connected to some Bluetooth device. ► Power-saving Function After you turned on the power of the Bluetooth GPS Receiver BTT-100, if the Bluetooth is not connected to any devices within 10 minutes, BTT-100 will turn off the power automatically for saving...

  • Page 8: Power Jack

    ► Power jack You can use either the DC car power charger (included) or the AC adapter (optional) to connect to the power jack of BTT-100 to recharge the internal battery. Please note that the adapter rating 5V, 1.2 A, positive pole center.

  • Page 9: Connect Btt-100 To A "Windows Mobile Version 5 Pocket Pc

    ► Connect BTT-100 to a "Windows Mobile Version 5 Pocket PC" 1. Tap on the Bluetooth button on 3. Check “Turn on Bluetooth”. right lower corner. 2. Turn on your Bluetooth GPS receiver. 5. It will search for all the Bluetooth 4.
  • Page 10 “BT-GPS-328EB2”) and tap Next. 7. Enter Passkey “0000” and tap 8. Check “Serial Port” and tap Next. Finish. 9. The device will be shown on the 10. Tap the “COM Ports” tab, and list. select “New Outgoing Port”.
  • Page 11 11. Select the device and tap Next. 12. Uncheck “Secure Connection” and from the drop down box select a COM port number (for example, COM8), and then tap Finish. 13. The device with it’s COM port 14. Now you can go to GPSinfo number will be shown on the list.

  • Page 12: Software Application

    Software Application ► Connect BTT-100 with your Pocket PC Tap on the Bluetooth button to enable the Bluetooth of Pocket PC and tap on the “Manager” button. 2. Turn on the power of the Tap on “Explore a Bluetooth BTT-100.
  • Page 13 Tap on “BTT-100” icon. Tap on “Next”. 7. Tap on “Finish”. Tap and hold the BTT-100 icon to display its pop-up menu and tap on “Connect”...

  • Page 14: Test The Rds Function

    The Pocket PC will connect to the BTT-100. ► Test the RDS function Copy the RDS Test program “RDS.EXE” from CD-ROM to your Pocket PC’s internal memory or storage card. Locate the “RDS.EXE” and tap on it to start the program.
  • Page 15 3. Set the COM Port to “COM7:” and Baud Rate to “38400”. 4. Set your RDS frequency number and tap on “Set Frequency” button to take effect. 5. Tap on “Connect” button and check the “RDS2 Message ON”. 6. Tap the “Save” button, you can save the RDS message to a Text file.
  • Page 16 9. In the “Information” tab, it shows the RDS information. 10. Signal Quality is ranged from 0 to 15; larger value represents the better quality.

  • Page 17: Troubleshooting

    Troubleshooting ► Change battery 1. Press and slide the battery cover to the direction as shown in the figure. 2. Lift to remove the battery cover. 3. Pull the plastic tag to remove the battery.

  • Page 18: Bluetooth Is Unable To Be Connected

    ► Bluetooth is unable to be connected (1) Check if the Bluetooth status LED is flashing normally. (2) Check if the battery power is enough. If not, please recharge it. (3) Check if the other Bluetooth device is enabled or not. ►...
  • Page 19 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
