Globalsat BT-359 Specifications

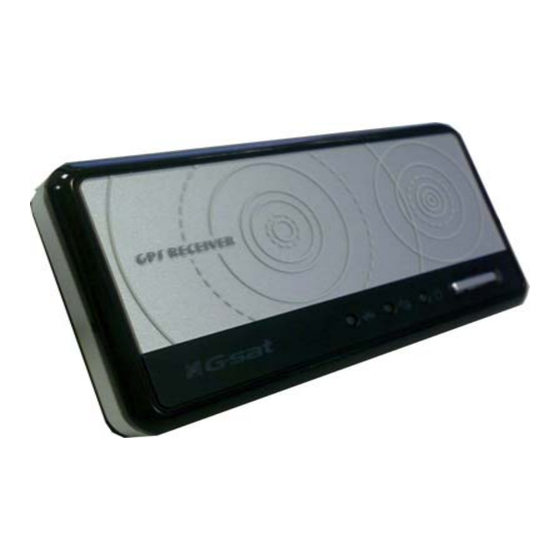

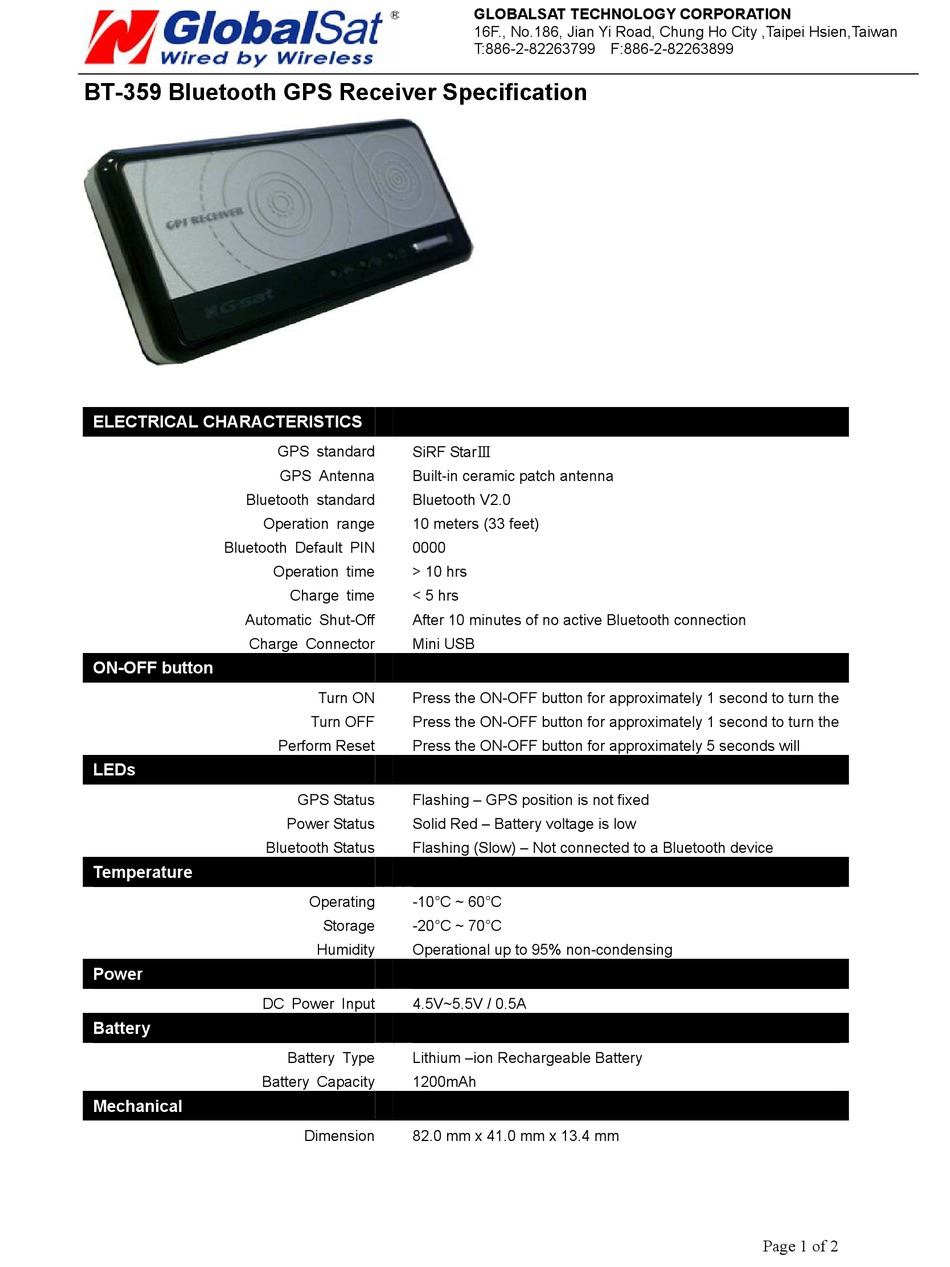

BT-359 Bluetooth GPS Receiver Specification
ELECTRICAL CHARACTERISTICS
Bluetooth standard
Operation range
Bluetooth Default PIN
Automatic Shut-Off
Charge Connector
ON-OFF button
LEDs
Temperature
Power
DC Power Input
Battery
Battery Capacity
Mechanical
GPS standard SiRF StarⅢ
GPS Antenna Built-in ceramic patch antenna
Bluetooth V2.0
10 meters (33 feet)
0000
Operation time > 10 hrs
Charge time < 5 hrs
After 10 minutes of no active Bluetooth connection
Mini USB
Turn ON Press the ON-OFF button for approximately 1 second to turn the
Turn OFF Press the ON-OFF button for approximately 1 second to turn the
Perform Reset Press the ON-OFF button for approximately 5 seconds will
GPS Status Flashing – GPS position is not fixed
Power Status Solid Red – Battery voltage is low
Bluetooth Status Flashing (Slow) – Not connected to a Bluetooth device
Operating -10°C ~ 60°C
Storage -20°C ~ 70°C
Humidity Operational up to 95% non-condensing
4.5V~5.5V / 0.5A
Battery Type Lithium –ion Rechargeable Battery
1200mAh
Dimension 82.0 mm x 41.0 mm x 13.4 mm
GLOBALSAT TECHNOLOGY CORPORATION
16F., No.186, Jian Yi Road, Chung Ho City ,Taipei Hsien,Taiwan
T:886-2-82263799 F:886-2-82263899
