Globalsat Technology Corporation
16F., No. 186, Jian-Yi Road, Chung-Ho City, Taipei Hsien 235, Taiwan
Tel: 886.2.8226.3799/ Fax: 886.2.8226.3899
service@globalsat.com.tw
globalsat.com.tw

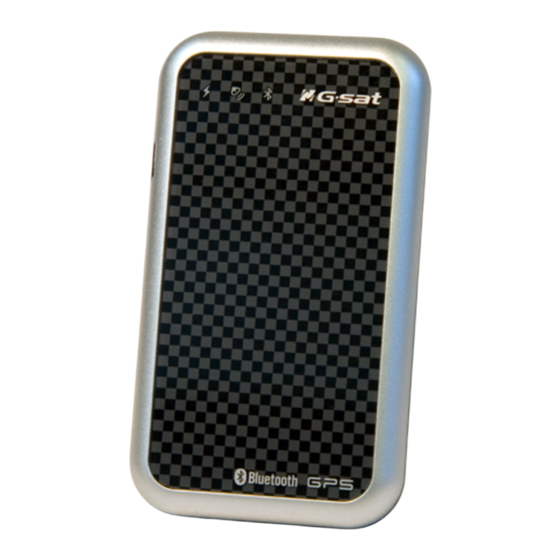

BT-368i Bluetooth GPS Receiver
USER'S GUIDE
BT-386i
USGlobalSat Incorporated
14740 Yorba Court, Chino, CA 91710
Tel:909.597.8525 / Fax:909.597.8532
sales@usglobalsat.com
usglobalsat.com
Page 1 of 15
Version 1.1
UG_BT368i_022108

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT-386i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Globalsat BT-386i

Summary of Contents for Globalsat BT-386i

  • Page 1 BT-386i Version 1.1 BT-368i Bluetooth GPS Receiver USER’S GUIDE Globalsat Technology Corporation USGlobalSat Incorporated 16F., No. 186, Jian-Yi Road, Chung-Ho City, Taipei Hsien 235, Taiwan 14740 Yorba Court, Chino, CA 91710 Tel: 886.2.8226.3799/ Fax: 886.2.8226.3899 Tel:909.597.8525 / Fax:909.597.8532 service@globalsat.com.tw sales@usglobalsat.com globalsat.com.tw...

  • Page 2: Table Of Contents

    BT-386i Version 1.1 Table of Contents 1. Product Information..............................3 1.1 Product Description ..........................3 1.2 Product Features ............................3 1.3 Product Specifications ..........................4 2. Hardware Description ............................5 2.1 Overview..............................5 2.2 LED Status Indicators ..........................6 2.3 Power Button ............................6 2.4 Mini-USB Port ............................

  • Page 3: Product Information

    BT-386i Version 1.1 1. Product Information 1.1 Product Description BT-368i is a high performance Bluetooth GPS receiver., which uses the SiRF Star III chipset to track up to 20-satellites simultaneously. With a built-in high-performance antenna, the BT-368i ensures excellent signal reception in most all conditions.

  • Page 4: Product Specifications

    BT-386i Version 1.1 1.3 Product Specifications GPS Receiver Chipset SiRF StarIII Frequency L1, 1575.42 MHz C/A Code 1.023 MHz chip rate NMEA 0183 v3.01 Protocol (Default: GGA, GSA, GSV, RMC and can support: VTG, GLL, ZDA with factory modified firmware) SiRF binary mode accessable.

  • Page 5: Hardware Description

    BT-386i Version 1.1 2. Hardware Description 2.1 Overview Power LED Mini-USB Charging Port GPS LED Bluetooth LED Power Button The high-polished, metallic style finish with added accessories in the retail box (AC charger + Euro plug adapter) sets the BT-368i apart from our standard BT-368 receiver, which has a silver painted trim and only the 12V car charger.

  • Page 6: Led Status Indicators

    BT-386i Version 1.1 2.2 LED Status Indicators Bluetooth LED (Blue) Status Description Flash once per three seconds Not Connected Flash once per second Connected GPS LED (Green) Status Description Flash once per second Position is Fixed Steady on Position Not Fixed...

  • Page 7: Package Contents

    BT-386i Version 1.1 3. Package Contents  BT-368i GPS Receiver Unit  12VDC Car Charger  110VAC Wall Charger  USB Charging Cable  User Guide and Software Utility on CD-ROM Optional Accessories Sold Separately  USB Data Cable 12VDC Car Charger...

  • Page 8: Getting Start

    Place your BT-368i in a place where it can have a clear view to the sky and monitor the green GPS LED until it begins to flash indicating is has fixed to satellite positions. This may take up to 3-minutes for the first time your BT-386i is used. Thereafter a shorter fix time should be experienced. Page 8 of 15...

  • Page 9: Step 4: Connecting To A Bluetooth Enabled Device

    Run the Bluetooth manager from your Bluetooth enabled device (Smartphone, PDA or Laptop), to search for transmitting Bluetooth devices. Select the BT-386i device from the displayed list (it will appear as BT-GPS-xxxxxx) to connect or “pair” it with your BT-368I GPS Receiver.

  • Page 10: Troubleshooting

    BT-386i Version 1.1 5. Troubleshooting 5.1 Connecting BT-368i to a Pocket PC Device 1. Tap on [Start]. 2. Tap on [Settings]. 3. Tap on Bluetooth button. 4. Turn on Bluetooth function. Page 10 of 15...
  • Page 11 BT-386i Version 1.1 5. Tap on [New] button. 6. Select [Explore a Bluetooth device] item. 7. Tap on the [BT-GPS-xxxxxx] icon. 8. Select BT-GPS COM Port, and then tap [Next] button. Page 11 of 15...
  • Page 12 BT-386i Version 1.1 9. Tap on [Finish] button. 10. Tap and hold on BT-GPS button. 11. Select [Connect]. 12. The connection between BT-368I and your Pocket PC is established. Page 12 of 15...

  • Page 13: Unable To Connect To Bluetooth

    BT-386i Version 1.1 13. You can start the navigation software or GPSinfo program to check the GPS positioning status. 5.2 Unable to Connect to Bluetooth ) Check if the Bluetooth status LED is flashing normally. (2) Check that there is adequate battery power. If not, please recharge.

  • Page 14: Safety Notice

    You acknowledge that this limitation applies to all content information or other services available from Globalsat/USGlobalsat, and whether or not Globalsat/USGlobalsat has notice of the possibility of such damages, and whether or not to circumstances giving rise to such damages may have been within the control of Globalsat/USGlobalsat.

  • Page 15: Fcc Notice

    Refund the purchase price. All replaced parts and products, and products on which a refund is made, become the property of Globalsat/USGlobalsat. New or reconditioned parts may be used in the performance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period.
