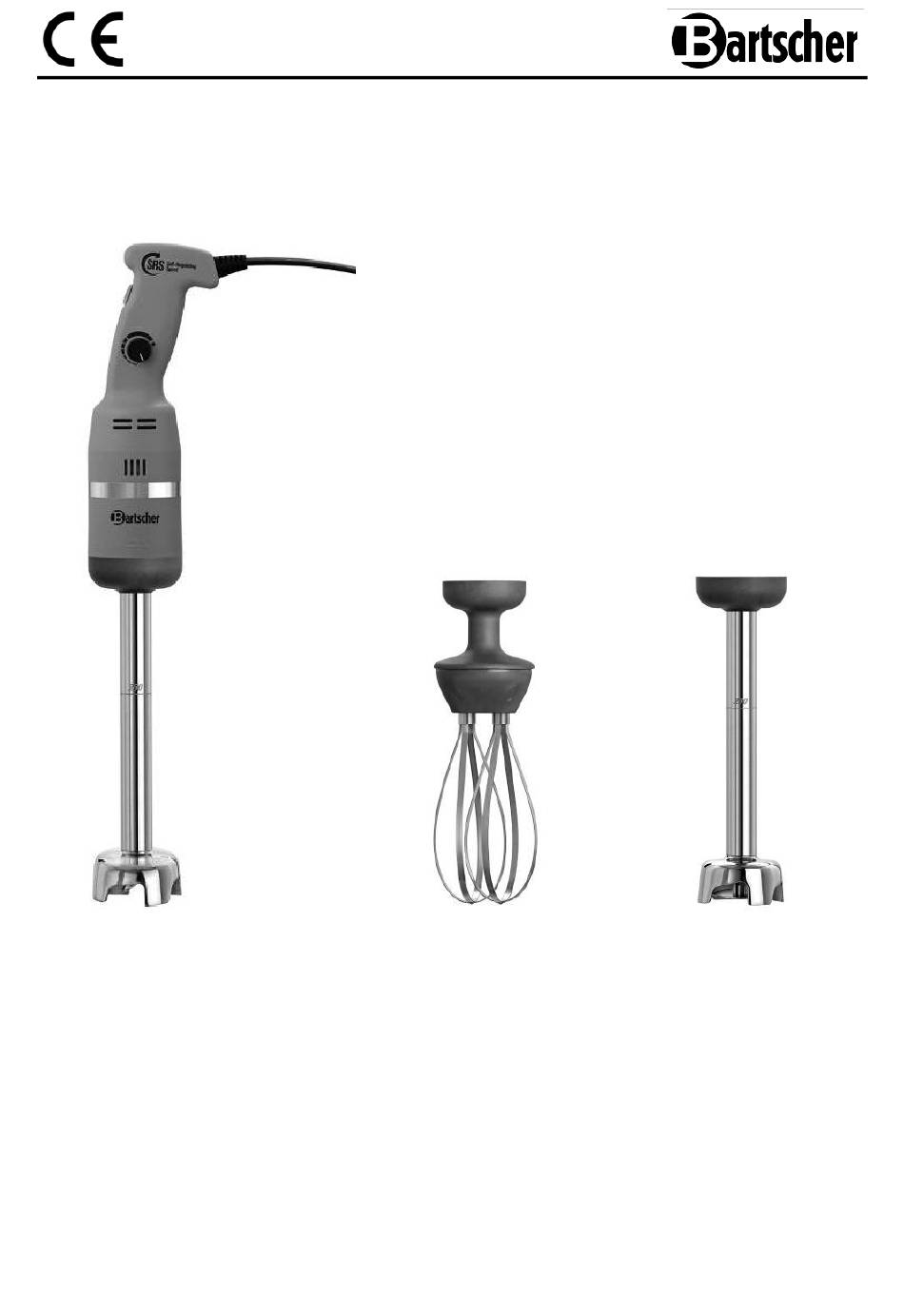

- Page 1 MX 235 Plus MX 235 Plus MX 235 Plus SB170 EM235 130116 130117 130118 Original-Gebrauchsanleitung V1/1016...
-
Page 2: Table Of Contents
5.1 Start-up ......................... 38 5.2 Connection ......................40 5.3 Operation ......................41 6. Cleaning und maintenance ..................44 7. Possible Malfunctions .................... 47 8. Waste disposal ......................48 Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... -
Page 3: Safety
Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Safety Instructions
WARNING! Risk of incised wounds! This symbol highlights dangerous situation which may lead to incised wounds. WARNING! Risk of hand injuries This symbol highlights dangerous situation which may lead to hand injuries. CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. - Page 5 Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself. Do not use any accessory or spare parts that have not been recommended by the manufacturer.
- Page 6 The supply cable must be disconnected from the socket only by pulling the plug. Never carry or lift the device by the supply cable. In any case do not open the device housing. In case of electrical or mechanical modifications the electric shock hazard will occur.
- Page 7 During the operation of the device do not put hands or other body parts in the pot. Never immerse the device in the pot with the processed food products deeper than the immersion mark. Never remove the device from the pot before its complete stop and never earlier than 10 seconds from turning the device off.
- Page 8 WARNING The residual risk results from removing permanent covers and tampering with damaged / used parts! The operator absolutely must not attempt to open or remove the permanent covers or protective elements. During completion, maintenance and cleaning and other similar manual activities, connected with placing hands or other body parts in the hazardous areas of the device, there is the residual risk which may result in:...
-
Page 9: Proper Use
1.3 Proper use CAUTION! The device has been designed and constructed for the industrial use and may be operated only by the qualified personnel under catering operations and in big kitchens. The operational safety of the device is assured only in case of proper use, according to the operation manual. -
Page 10: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 11: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 12: Technical Data

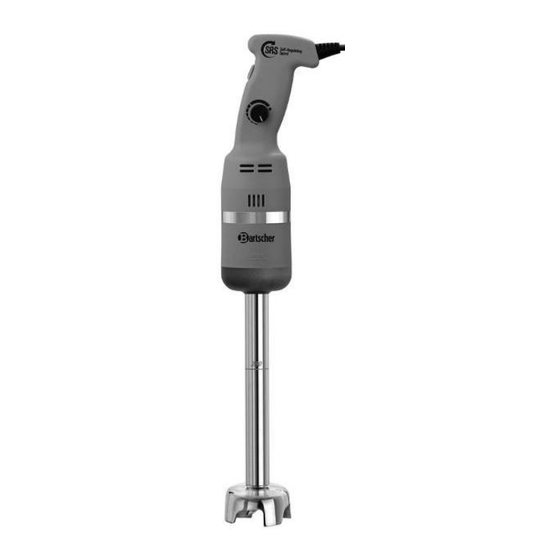

4. Technical data 4.1 Overview of parts Body with the motor ON button Power cable Speed regulator Ventilation holes Quick coupling Retaining flange Mixing stick Immersion mark Knife guard - 35 -... - Page 13 Application and components The device consists of the electric motor, placed in plastic casting (independent device body). The mixing stick is placed on the quick coupling with the use of the retaining flange and fixed to the motor shaft in the rotary way. Place the desired food products in the container and holding the device in both hands in appropriate places (see fig.
-
Page 14: Technical Specification
1.4 kg We reserve right to make the technical modifications! Accessories (not included in the delivery of Code-No. 300116!) Whisk MX 235 Plus SB170 Material: CNS 18/10, plastic Whisk length: 170 mm Dimensions: W 90 x D 90 x W 290 mm Code-No.: 130117... -
Page 15: Installation And Operation
5. Installation and operation 5.1 Start-up CAUTION! The device may be operated only by the authorized and properly trained personnel, having sufficient technical experience. Before switching the device on: thoroughly read the technical manual; become familiarized with the safety and protective devices, as well as their locations and mode of operation. - Page 16 The disassembly shall be performed according to the above mentioned description, but in the reverse order. Assembly / disassembly of the remaining equipment (optional) Whip 1. Place the retaining flange (10) of the whip (11) on the quick coupling (6) of the device body (1).
-
Page 17: Connection
5.2 Connection DANGER! Electric shock hazard! The device can cause injuries due to improper installation! Before installation and connecting the local power grid specification should be compared with that of the device (see rating plate). Connect the device only in case of compliance! Connect the device only to properly installed single socket with protective terminal. -
Page 18: Operation
5.3 Operation Control and inspections before start-up Control / Inspection Procedure Make sure that: Visual inspection in order to make sure that there are no foreign objects in the pot, like tools, towels, etc., - there are no foreign or any non-food products. Remove such objects if objects in the pot found. - Page 19 Operation of the device The device must be switched on while observing the following instructions: 1. Inspect the power supply at the place of work; 2. Inspect the correct assembly; 3. Carry out the controls / inspections before switching the device on (see table, p. 41); 4.
- Page 20 WARNING! Risk of hand injuries! Never put hand or kitchen utensils into the container with food products during the device operation, as they may become entangled in moving parts (whisk) and lead to hand injuries. 10. Remove the processed product from the pot: pour it into appropriate containers while holding the pot with both hands.
-
Page 21: Cleaning Und Maintenance
6. Cleaning und maintenance WARNING! Before cleaning, disconnect the device from the power supply (pull the plug!). Never use pressurized water for cleaning the device! Make sure that no water gets into the device. CAUTION The following products may not be used for cleaning the device: ... - Page 22 WARNING Dismount all the equipment from the device body before cleaning. o When dismounting the equipment follow the instructions presented in Chapter 5.1 „Start-up “ (Assembly/Disassembly). o All surfaces and parts of the device having contact with food, or areas of contact with food (external and internal surfaces of tools) and and the spray areas (upper surface of equipment fixed to the device and external surface of the device) must be cleaned regularly as desribed below and then disinfected.
- Page 23 Storage of the device o In case of longer breaks in use of the device, thoroughly clean the device, as described above. Apply to all steel surfaces (in particular those made of stainless steel) a sufficient amount of Vaseline oil to protect them with additional layer. Parts of the device should be stored wrapped in a soft, lint-free cloth.
-
Page 24: Possible Malfunctions
7. Possible Malfunctions In case of malfunction, disconnect the device from its power source. Before contacting the service or sales agent, verify - based on the table below - whether it is possible to eliminate disruption in operation. Problem Cause Solution ... -
Page 25: Waste Disposal
CAUTION! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany...
