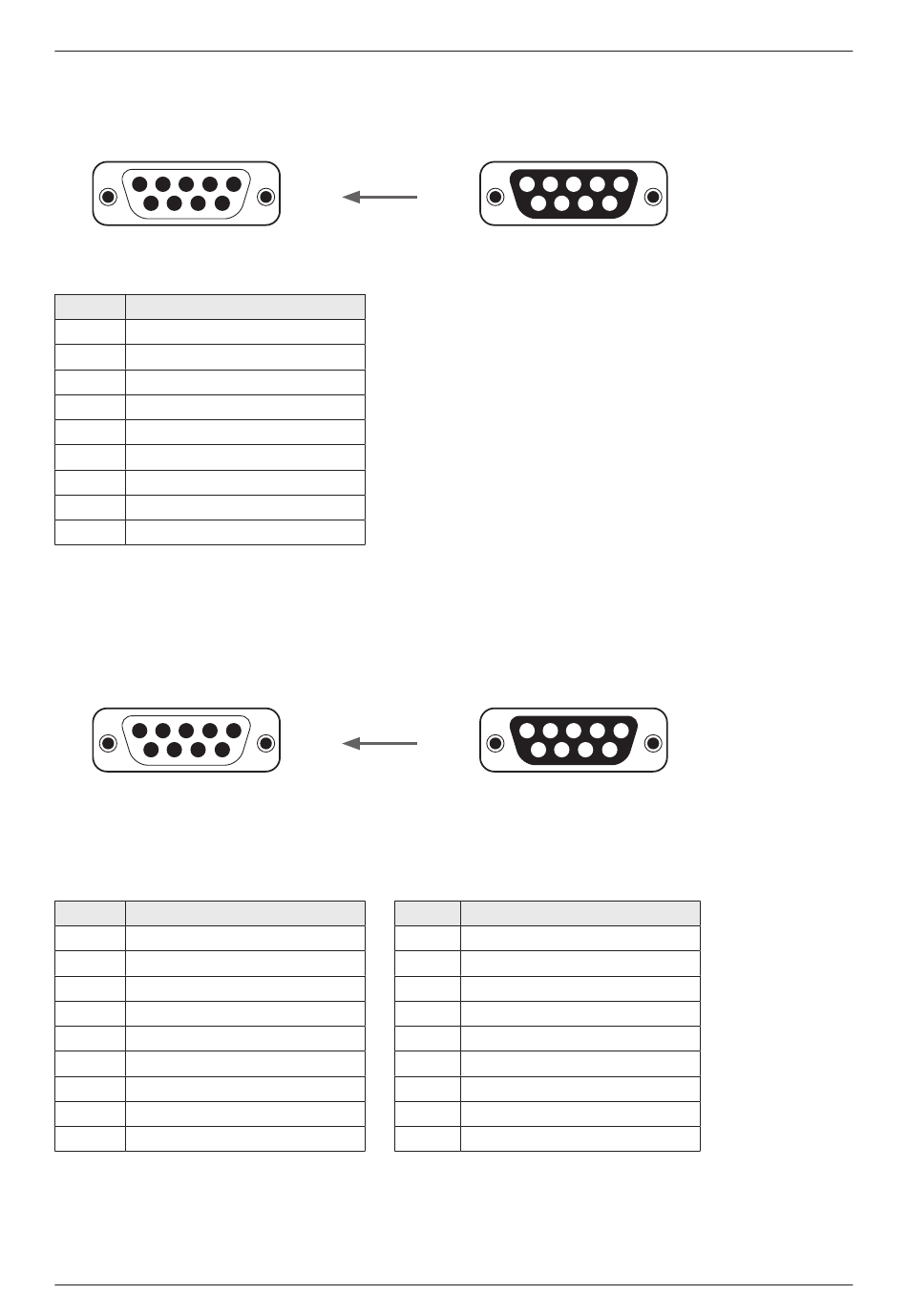

RS232 Connector (PC Interface)

Antenna Control Unit (ACU):
1 2 3 4
6 7 8 9
D-Sub 9 Pin: PC I/F
(Male Connector Type)
Pin Signal
1 NC
2 PC RX
3 PC TX
4 NC
5 GND
6 NC
7 IARM TO PC_ DBG_ TX
8 PC TO IARM_ DBG_ RX
9 NC

RS232/RS422 Connector (BUC Interface)

Antenna Control Unit (ACU):
1 2 3 4
6 7 8 9
D-Sub 9 Pin: BUC I/F
(Male Connector Type)
• For Ku-band Model
Pin Signal
1 NC
2 BUC RS232 RX
3 BUC RS232 TX
4 GND
5 GND
6 NC
7 NC
8 NC
9 NC
5
5
Cable Connector
:
5 4 3
9 8
D-Sub 9 Pin
(Female Connector Type)
Cable Connector
:
5 4 3
9 8
D-Sub 9 Pin
(Female Connector Type)
• For Ka-band Model (Optional)
Pin Signal
1 BUC RS422 RX+
2 BUC RS422 RX-
3 BUC RS422 TX+
4 GND
5 GND
6 BUC RS422 TX-
7 BUC KEYLINE RX+
8 BUC KEYLINE RX-
9 NC
43
2 1
7 6
2 1
7 6
Installing ACU
1 2 3 4
6 7 8 9
1 2 3 4
6 7 8 9
