Planning Installation

Option 2. When Placing Cable Outside Mast

BOW
247.5 mm (9.74")
4- ø13 mm (0.51")
ø254 mm (10")
Min. 10 mm (0.39")
Max. 20 mm (0.78")

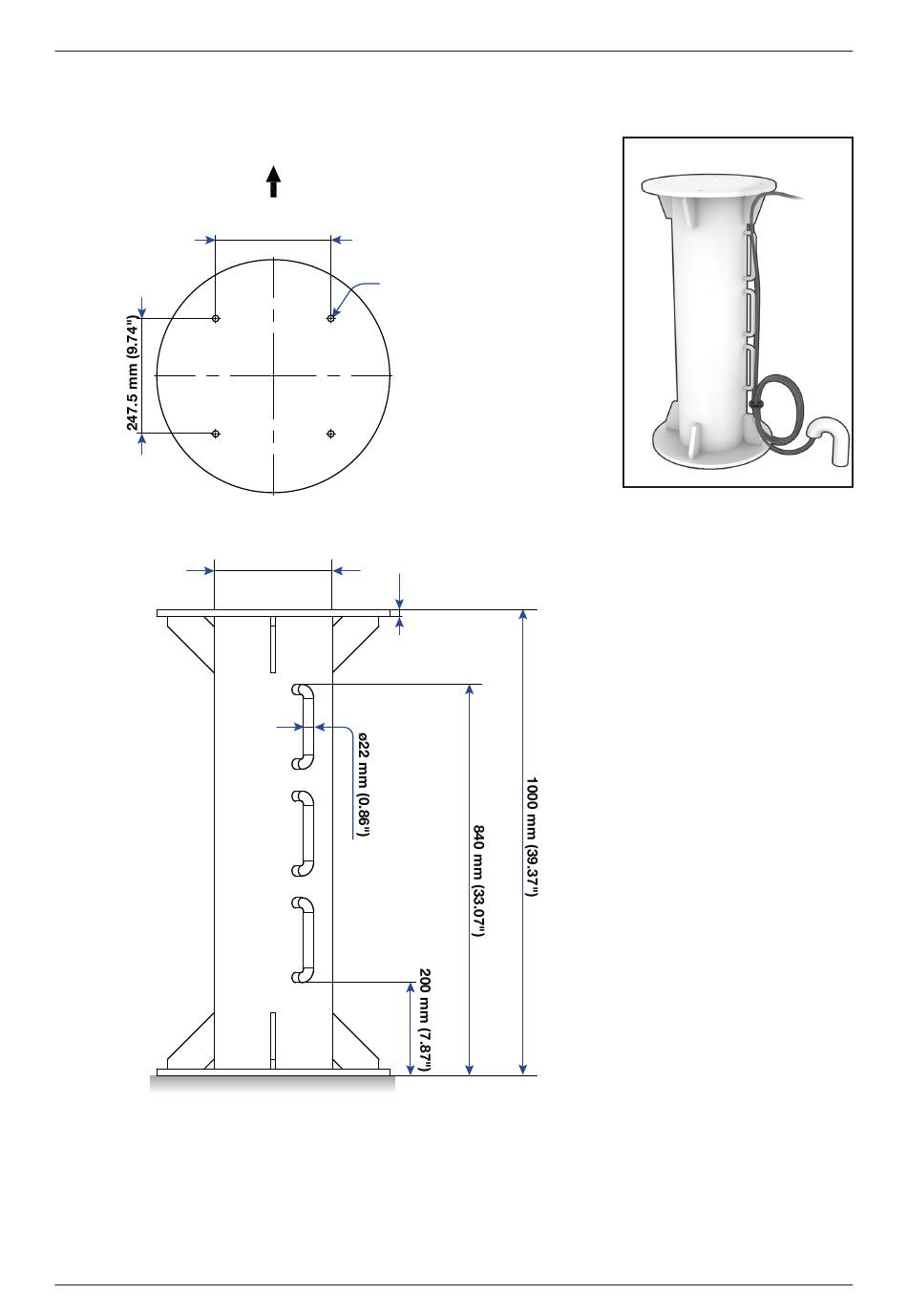

Figure: Recommended Size of Mast (Option 2)
