SPECIFICATIONS:
Model ......................................... 11M5DX
Frequency Range ....................... 26.8 To 27.6 MHz
*Gain .......................................... 10.44 dBi
Front to back .............................. 24 dB Typical
Beamwidth ............................... E=34° H=39°
Feed type ................................... Direct feed
Feed Impedance. ....................... 50 Ohms Unbalanced
Maximum VSWR ........................ 1:1 Typical
Input Connector .......................... SO-239
FEATURES:

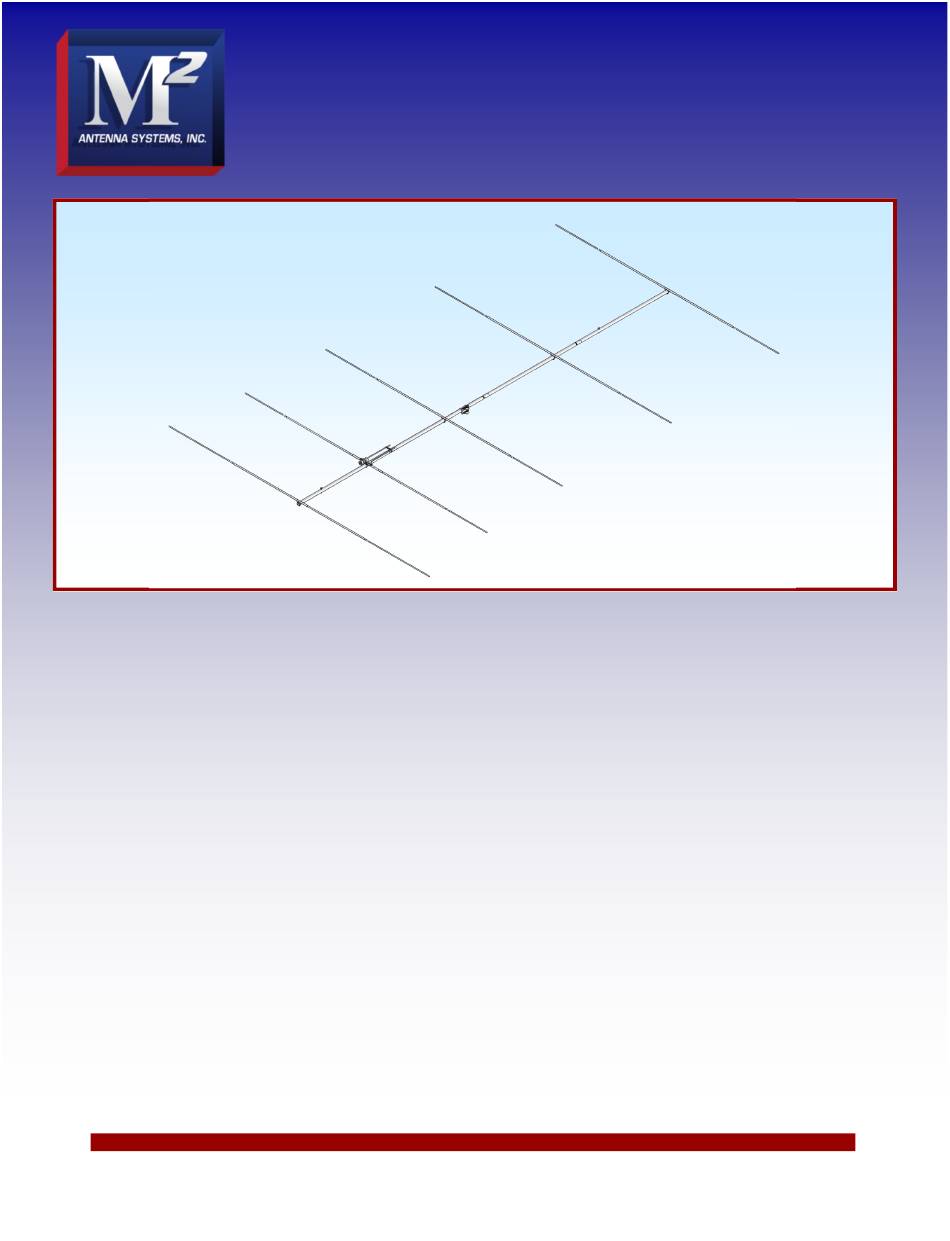

The 11M5DX is a great performer for its size. IT'S UPSABLE! Like all our "DX" series. The computer optimized design allows
full band coverage with good gain and front to back. Mechanically, CNC machined aluminum (6061-T6) rings clamps ground the ele-
ments to the boom and make assembly a snap. An overhead guy system is supplied. A hairpin type match couples the 3 kW 1:1 bal-
un to the feed line. The antenna is completely DC grounded.
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No: 11M5DX
*Subtract 2.14 from dBi for dBd
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2015 M2 Antenna Systems Incorporated
Power Handling .......................... 3 kW, Higher avl.
Boom Length / Dia ...................... 26.7' / 2"
Maximum Element Length .......... 18.75'
Turning Radius: .......................... 14.8'
Stacking Distance ....................... Call Factory
Mast Size .................................... 2" Nom.
Wind area / Survival ................... 5.13 Sq. Ft. / 100 MPH
Weight / Ship Wt. ........................ 30 Lbs. / 36 Lbs.
02/16/15
Rev.02
