M2 Antenna Systems 1700-26-2 Assembly Instructions

SPECIFICATIONS:

Model ......................................... 1700-26-2

Frequency Range ....................... 1625-1725 MHz Cont.

*Gain ..........................................

Front to back .............................. 27 dB Typical Average

Beamwidth /26 ele ..................... E=21°/H=22°

Beamwidth /35 ele ...................... E=17°/H=18°

Feed Impedance. ....................... 50 Ohms Unbalanced

Maximum VSWR ........................ >1.5:1 AVG.

Mounting Polarity ....................... Horizontal or Vertical

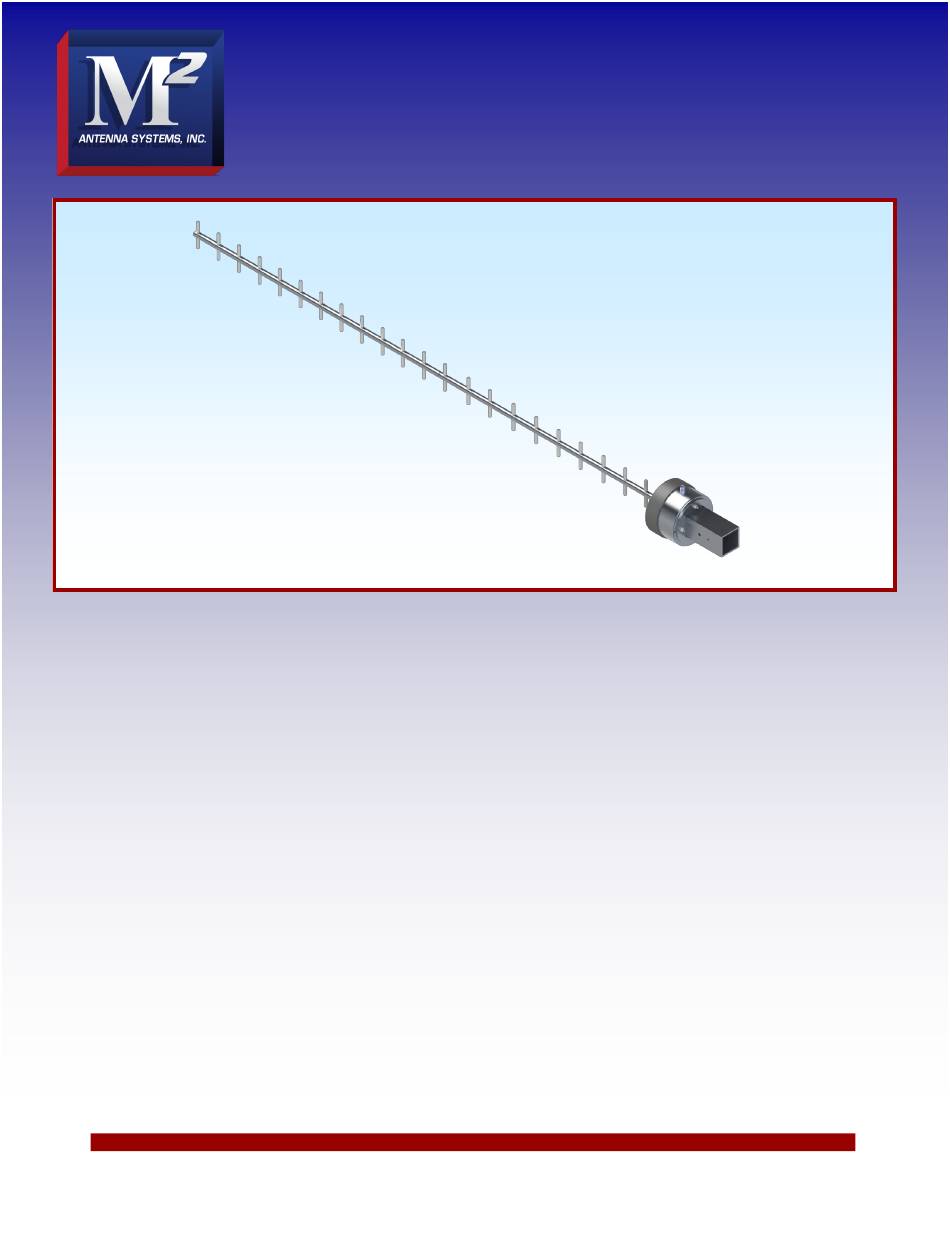

The 1700-26-2 is a rugged man packable high gain yagi type, horn fed antenna that can provide high perfor-

mance between the frequencies of 1625 MHz and 1725 MHz. The elements are made from aluminum 1/4" hex and are

large enough not to be damaged by man packing or the outside elements. The antenna is broken apart in near equal sec-

tions using a unique no tools bayonet type connection that allows quick assembly or disassembly. The antenna can be

used with just 2 element sections in place, that keeps the package down to a manageable 57 inches long. But if extra

gain is needed, just add the last element section for a little extra gain for the fringe situations. The 1700-26-2 uses a

unique horn to excite the elements and achieve amazing gain. The horn comes with a face cover to protect the horn

probe inside and gives a clean storage cup after disassembly.

M2 Antenna Systems, Inc.

Model No: 1700-26-2

18.3 dBi Typical Average

*Subtract 2.14 from dBi for dBd

M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722

Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com

Input Connector .......................... TNC Female

Power Handling .......................... 250 Watts

Boom Length / Dia. ..................... 57" / 1/2"

Wind area / Survival ................... 0.3 Sq. Ft. / 80 MPH

Weight / Ship Wt. ........................ 2 lbs. / 10 lbs.

6/7/2018

REV A

Table of Contents

Do you have a question about the 1700-26-2 and is the answer not in the manual?

Page 1 2 element sections in place, that keeps the package down to a manageable 57 inches long. But if extra gain is needed, just add the last element section for a little extra gain for the fringe situations. The 1700-26-2 uses a unique horn to excite the elements and achieve amazing gain.
Page 2 1700-26-2 ASSEMBLY INSTRUCTIONS STEP 1: BOOM SECTION 2 Insert BOOM SECTION 2 ASSY into BOOM SECTION 1 ASSY. Turn BOOM ASSEMBLY SECTION 2 ASSY clockwise to lock the an- tenna into place. Reverse steps for dissem- ble. Use Velcro strap to hold antenna togeth- er for ease of transportation.
