M2 Antenna Systems 146CP8 Manual

SPECIFICATIONS:

Model ......................................... 146CP8
Frequency Range ....................... 144 To 150 mHz
*Gain .......................................... 8.5 dBic
Front to back .............................. 17 dB Typical
Beamwidth ............................... E=70° H=70°
Feed type ................................... "T" Match
Feed Impedance. ....................... 50 Ohms Unbalanced
Maximum VSWR ........................ 1.5:1 Typical
Input Connector .......................... "N" Female

FEATURES:

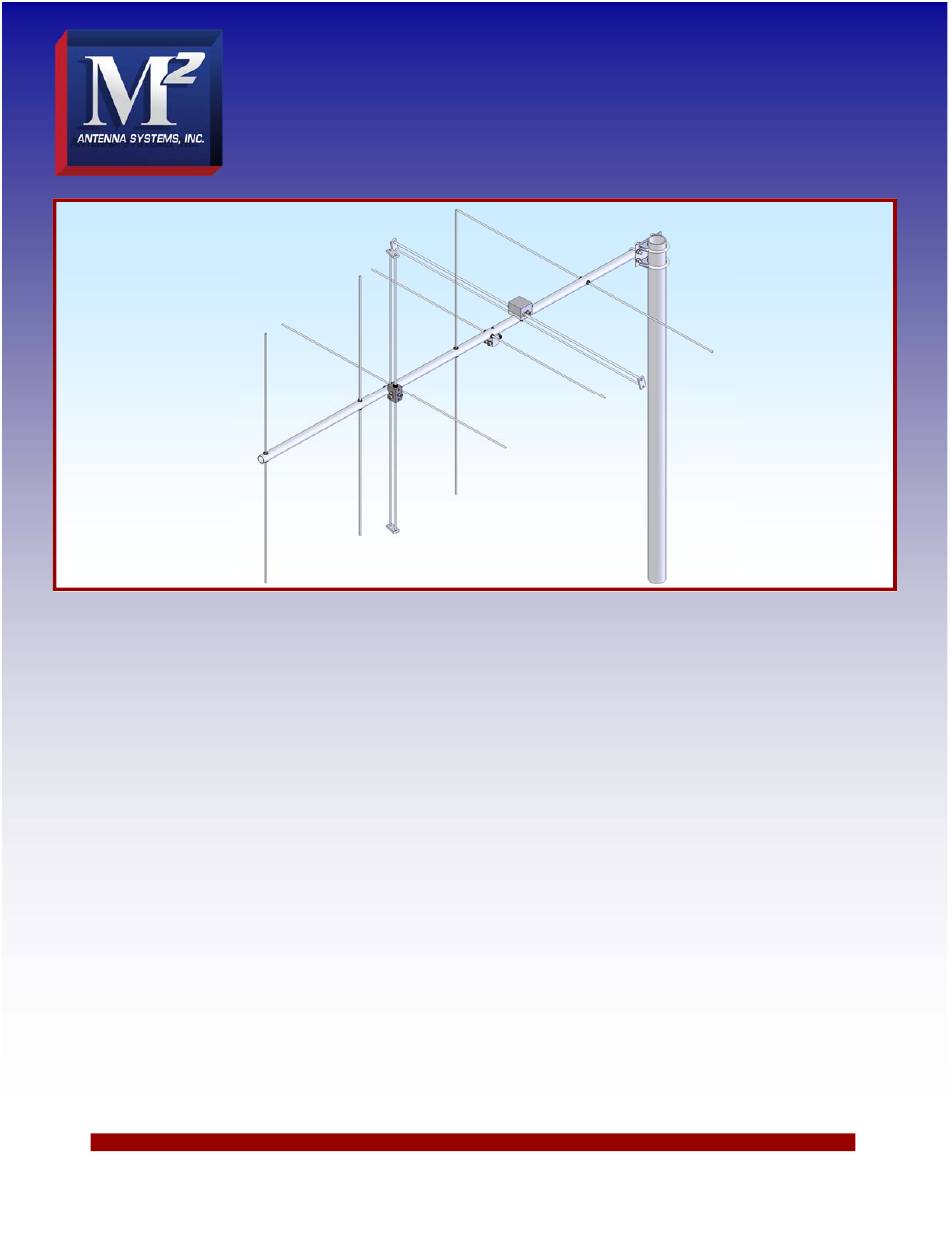

The 146CP8 is a practical sized, yet high performance circular polarized antenna with a remarkably clean pattern.
The pattern is important in order to match the antenna's noise temperature with modern low noise preamps. This antenna
is ideal for satellite work.
The CNC machined driven element module is O-ring sealed and weather tight for low maintenance and long-term
peak performance. Internal connected are encapsulated in a space-age silicone gel that seals out moisture and improves
power handling. The 3/16" 6061-T6 rod elements are centered to minimize interaction and maintain good ellipticity. Insu-
lators are UV stabilized and locked in place with stainless keepers. Rugged construction, uncompromising performance
for the boomlength: thats the M
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No: 146CP8
*Subtract 2.14 from dBi for dBd
2
146CP8!
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2015 M2 Antenna Systems Incorporated
Power Handling .......................... 1 kW
Boom Length / Dia ...................... 63" / 1"
Maximum Element Length .......... 40-3/8"
Turning Radius: .......................... 61"
Stacking Distance ....................... 56" High & 56" Wide
Mast Size .................................... 1-1/2" to 2" Nom.
Wind area / Survival ................... 0.47 Sq. Ft. / 100 MPH
Weight / Ship Wt. ........................ 4 Lbs. / 6 Lbs.
9/14/15
Rev.00
