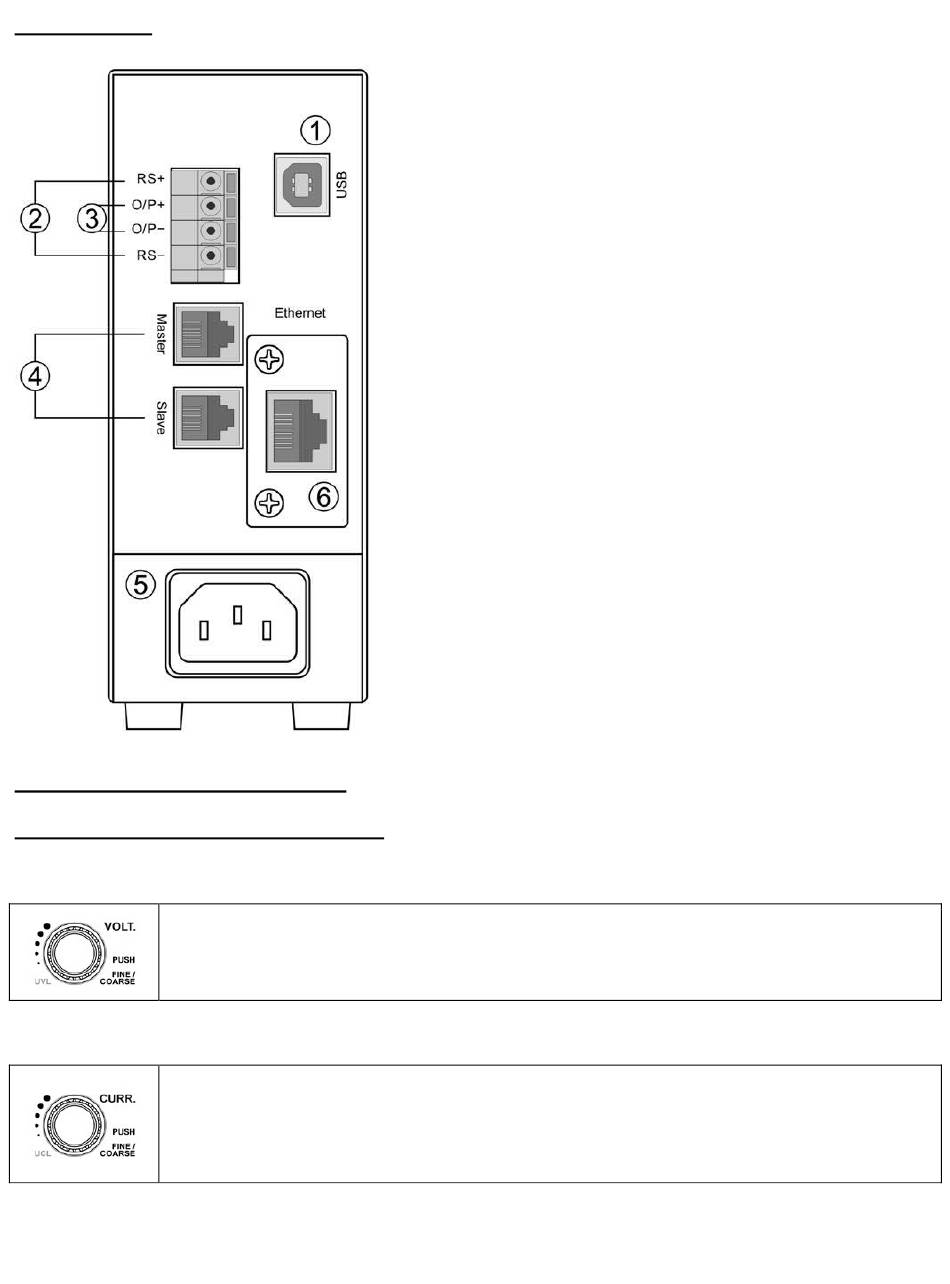

5.3 Back Panel

6. OPERATION PROCEDURES

6.1 Adjusting Output Voltage and Current

Adjust Output Voltage:
Rotate Voltage Knob clockwise to INCREASE output voltage
Rotate Voltage Knob anti-clockwise to REDUCE output voltage
Press Voltage knob to switch between COARSE and FINE adjustment. When press the knob
the digit will been high-lighted for adjust.
Adjust Output Current:
Rotate Current Knob clockwise to increase output voltage
Rotate Current Knob anti-clockwise to reduce output voltage
Press Current knob to switch between COARSE and FINE adjustment. When press the knob
the digit will been high-lighted for adjust.
Upper Voltage and Current Limit adjustment
➀
USB communication port
➁
Remote sensing terminals
➂
DC output terminal which has same power rating
as the front output
④
Master/Slave connection
➄
AC INPUT SOCKET
➅
ETHERNET port (Not Included)
