Accessories; Introduction - multicomp pro MP710083 Manual

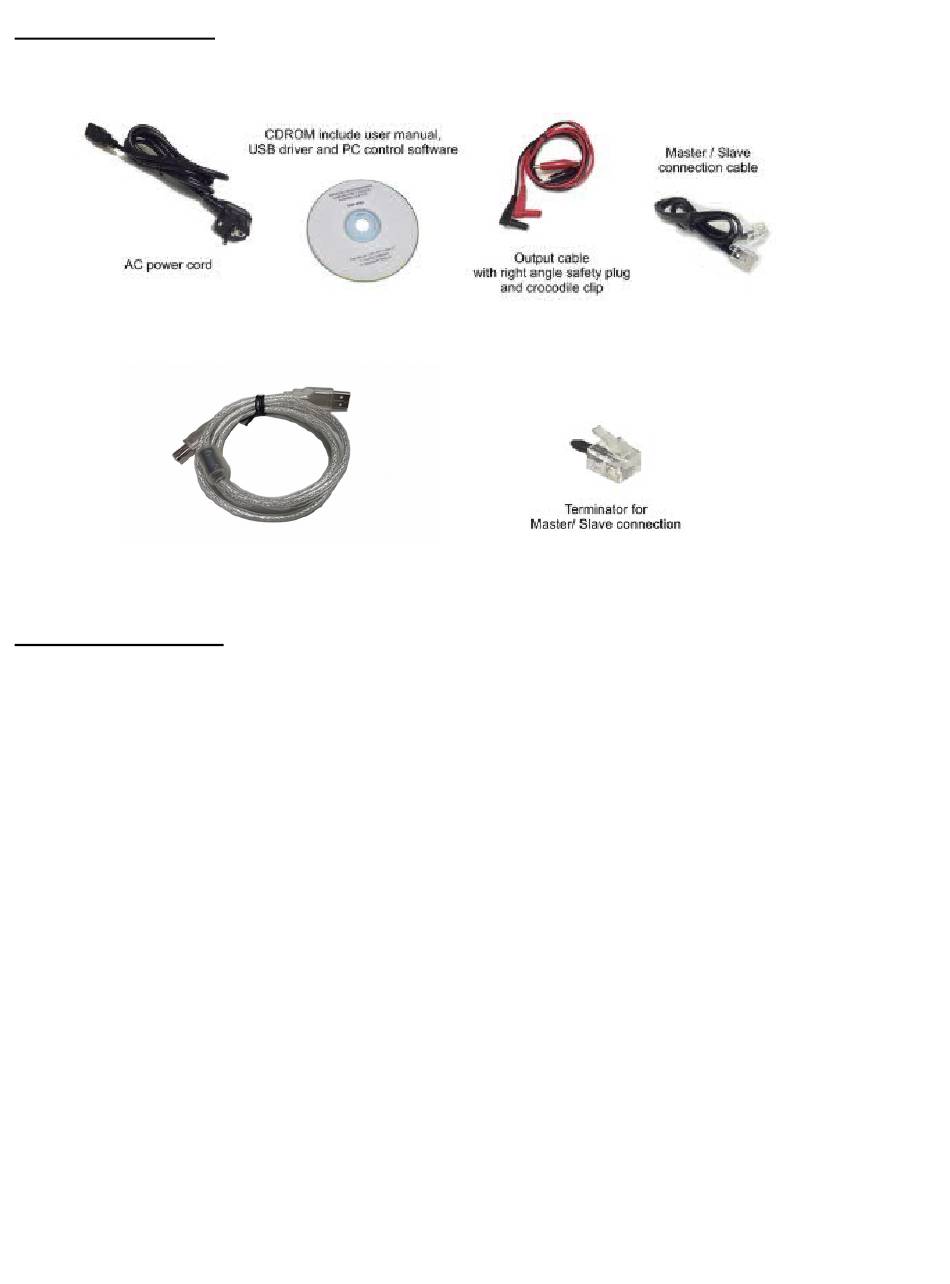

2. ACCESSORIES

USB cable

3. INTRODUCTION

This Remote Programmable Constant Power SMPS with DC wave forms & Optional Ethernet Card. This multi-
function constant power laboratory grade power supply is capable of generating various DC wave
forms. A micro-processor is used for such DC waveform. There are 10 voltage generators which can
either be panel programmed or by PC via remote control port. Remote Programming of repetitive cycling,
control, monitoring and data logging can be done via the USB port. With optional Ethernet card it is capable of
Internet connectivity and control, monitor, data log over 250 supplies by one PC. Application software of cyclic
program, command sets, and Labview Drivers are provided. As a 80W Constant Power laboratory grade
power supply it has an automatic range of 0.5-36V and 0 -5A. The maximum limits of current & voltage are
calculated by Imax x Vmax = 80W. Its operation voltage and current spectrum is larger than 3 conventional
power supplies of the same power rating. The power supply is ideal for R&D laboratory, burn in test
especially for devices where the effect of irregular DC wave forms are important. Master & Slave
configuration with MP780082 and MP780083 for parallel connection of multiple units up to 30 Units.
P.4
