DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2. 1077(a)
Responsible Party Name: G.B.T. INC.
Address: 18305 Valley Blvd., Suite#A
LA Puent, CA 91744
Phone/Fax No: (818) 854-9338/ (818) 854-9339
hereby declares that the product
Product Name:
Mother Board
Model Number:
GA-6VTMR
Conforms to the following specifications:
FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109(a),
Class B Digital Device
Supplementary Information:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1)
This device may not cause harmful
and
(2)
this device must accept any inference received, including
that may cause undesired operation.
Representative Person's Name:
ERIC LU
Eric Lu
Signature:
Date:
Oct. 08, 2001
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna
-Move the equipment away from the receiver
-Plug the equipment into an outlet on a circuit different from that to which
the receiver is connected
-Consult the dealer or an experienced radio/television technician for
additional suggestions
You are cautioned that any change or modifications to the equipment not
expressly approve by the party responsible for compliance could void Your
authority to operate such equipment.
This device complies with Part 15 of the FCC Rules. Operation is subjected to
the following two conditions 1) this device may not cause harmful interference
and 2) this device must accept any interference received, including interference
that may cause undesired operation.
FCC Compliance Statement:
This equipment has been tested and found to
comply with limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable
protection
against
harmful
residential
installations.
generates,
uses,
and
frequency energy, and if not installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause interference to radio or
television equipment reception, which can be
interference
in
This
equipment
can
radiate
radio

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GS-SR104 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

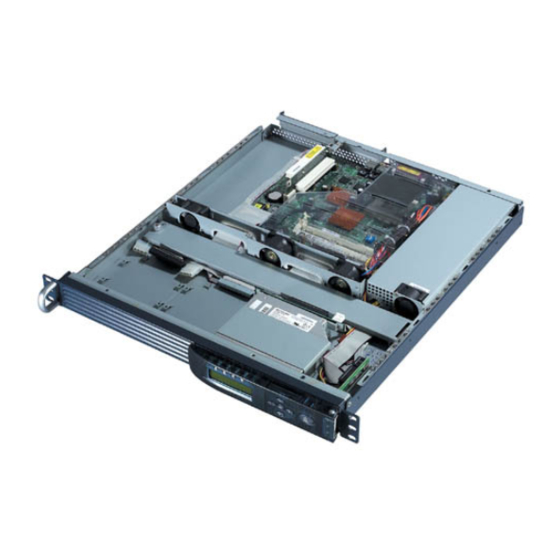

Summary of Contents for Gigabyte GS-SR104

  • Page 1 FCC Compliance Statement: This equipment has been tested and found to DECLARATION OF CONFORMITY Per FCC Part 2 Section 2. 1077(a) comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These Responsible Party Name: G.B.T. INC. limits are designed to provide reasonable Address: 18305 Valley Blvd., Suite#A LA Puent, CA 91744...
  • Page 2: Declaration Of Conformity

    Declaration of Conformity We, Manufacturer/Importer G.B.T. Technology Träding GMbH Ausschlager Weg 41, 1F, 20537 Hamburg, Germany declare that the product ( description of the apparatus, system, installation to which it refers) Mother Board is in conformity with (reference to the specification under which conformity is declared) in accordance with 89/336 EEC-EMC Directive EN 55011 Limits and methods of measurement...
  • Page 3 6VTMR Socket 370 Processor Motherboard USER'S MANUAL Socket 370 Processors Motherboard REV. 1.0 First Edition 12ME-6VTMR-1001...
  • Page 5 How This Manual Is Organized This manual is divided into the following sections: 1) Revision History 2) Item Checklist 3) Features 4) Installation Guide 5) Performance & Block Diagram 6) Q-Flash BIOS Utility 7) Advanced Networking Services 8) BIOS Setup 9) Technical Support /RMA sheet 10) Appendix Manual revision information...
  • Page 7: Table Of Contents

    Table Of Content Revision History Item Checklist Summary of Features 6VTMR Motherboard Layout Installation Guide Page Index for Connectors/Panel and Jumper Definition Performance List Block Diagram Q-Flash BIOS Utility Introduction Advanced Networking Services for Windows NT* 4 and Windows 2000 (Teaming) Page Index for BIOS Setup Technical Support /RMA Sheet Appendix...
  • Page 8: Revision History

    6VTMR Motherboard Revision History Revision Revision Note Initial release of the 6VTMR motherboard user’s manual. The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a commitment to update the information contained herein. Third-party brands and names are the property of their respective owners.
  • Page 9: Item Checklist

    Item Checklist Item Checklist The 6VTMR motherboard Cable for IDE / floppy device Diskettes or CD (Driver CD) for motherboard driver & utility 6VTMR user’s manual...
  • Page 10 6VTMR Motherboard Features Summary Form Factor 24.4 cm x 24.4 cm ATX size form factor, 6 layers PCB. Socket 370 processor Supports all new Pentium III processors (FC-PGA & FC-PGA2 package) Supports100/133MHz system bus frequency Can’t Support processor with Vcore above 1.8V L2 cache in CPU (Depend on CPU) Chipset VT82C694T (VIA Apollo Pro 133T)
  • Page 11: Summary Of Features

    BIOS Licensed Award BIOS, 2M bits flash ROM Additional Features Support Wake-On-LAN (WOL) Support Internal / External Modem Ring On Includes 4 fan power connectors Poly fuse for keyboard over-current protection Summary of Features...
  • Page 12: 6Vtmr Motherboard Layout

    6VTMR Motherboard 6VTMR Motherboard Layout ATX Power PS/2 PGA 370 Rage XL JP10 JP11 PCI1 COM2 SM BUS FAN4 FAN1 FAN2 VT82C694T 6VTMR VT82C686B BAT1 BIOS FAN3...
  • Page 13: Installation Guide

    Installation Guide Getting Started WARNING! Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To protect them against damage from static electricity, you should follow some precautions whenever you work on your computer. Unplug your computer when working on the inside. Use a grounded wrist strap before handling computer components.
  • Page 14 6VTMR Motherboard To set up your computer, you must complete the following steps: Step 1 - Set system jumpers Step 2- Install the Central Processing Unit (CPU) Step 3-Install memory modules Step 4-Install expansion cards Step 5-Connect ribbon cables, cabinet wires, and power supply Step 6-Set up BIOS software Step 7-Install supporting software tools Step 5...
  • Page 15 CPU Speed Setup The system bus speed is depended on the DIP switch (SW1) selection to set up the CPU speed for 500MHz – 1GHz processor. SW2 (RATIO): FREQ. RATIO X3.5 X4.5 X5.5 X6.5 X7.5 X8.5 X9.5 X10.5 X11.5 4 3 2 1 Installation Guide CPU.
  • Page 16 6VTMR Motherboard Intel Processor all have locked Frequency Multiple, so you can not change the CPU Frequency Multiple. CPU Installation Please make sure the CPU type and speed is supported by your motherboard. For example: The newest Pentium III processor (FC-PGA2 package). CPU Top View Socket Actuation Lever 1.Pull the lever out and lift it up.
  • Page 17 CPU Heat Sink Installation: Beware: Please check that the heat sink is in good contact with the CPU before you turn on your system. Poor contact will cause over heat with might cause damage to your processor! 3.Align CPU and insert it (Please refer to your heatsink installation manual for application of thermal grease to provide better heat conduction between your...
  • Page 18: Memory Installation

    6VTMR Motherboard Memory Installation The motherboard has 2 dual inline memory module (DIMM) sockets support 4 banks. The BIOS will automatically detects memory type and size. To install the memory module, just push it vertically into the DIMM Slot .The DIMM module can only fit in one direction due to the two notch. Memory size can vary between sockets.
  • Page 19 Page Index for CPU Speed Setup/Connectors/Panel and Jumper Definition Connectors ATX Power COM 1 / VGA / LPT Port Floppy Port IDE 1(Primary) / IDE 2(Secondary) Port / IDE3,IDE4 Port J4 (Wake On LAN) J5 (Wake On Modem) J1 (IR) J6 FAN 4 J9 FAN 2 J10 FAN 1...
  • Page 20: Connectors

    6VTMR Motherboard Connectors COM 1 / VGA / LPT Port Please note: This mainboard supports 2 standard COM ports and 1 LPT port. Device like printer can be connected to LPT port, mouse and modem etc can be connected to COM ports. USB Connector Please note: Before you connect your device(s) into USB connector(s), please make sure your device(s) such as USB keyboard, mouse, scanner, zip,...
  • Page 21 PS/2 Keyboard & PS/2 Mouse Connector PS/2 Keyboard Please note: This mainboard supports standard PS/2 keyboard and PS/2 mouse interface connector. LAN1 & LAN2: LAN Connectors PS/2 PS/2 Mouse Mouse / Keyboard Pin No. Definition Data Power Clock LAN1 LAN2 (LAN Active LED) 1 –...
  • Page 22 6VTMR Motherboard J6: Fan4 J9&J10: Fan 2 & Fan 1 Pin No. Definition Control SENSE Pin No. Definition Control SENSE...
  • Page 23: Atx Power

    J11: PWR Fan 3 ATX Power Connectors Pin No. Definition Control SENSE Pin No. Definition 3,5,7,13, 15-17 1,2,11 3.3V 4,6,19,20 +12V -12V Power Good 5V SB stand by+5V PS-ON(Soft On/Off)
  • Page 24 6VTMR Motherboard Floppy Port Red Line FDD1 IDE1 (Primary), IDE2 (Secondary) Red Line IDE2 IDE1...
  • Page 25: J4 (Wake On Lan)

    WOM: Wake On Modem J4 WOL: Wake On LAN Connectors Pin No. Definition Signal Pin No. Definition +5V SB Signal...
  • Page 26: J1 (Ir)

    6VTMR Motherboard J1: IR Connector Please note: Be careful with the polarity of the IR connector while you connect the IR. Please contact you nearest dealer for optional IR device. JP4: SM BUS Connector Pin No. Definition VCC (+5V) IR Data Input IR Data Output Pin No.
  • Page 27 JP5: SCSI IDE RAID ACCESS Connectors Pin No. Definition ACCESS1 COMMON ACCESS2...
  • Page 28: Page Index For Connectors/Panel And Jumper Definition

    6VTMR Motherboard Panel And Jumper Definition J13: Front Side JP2: RTC Battery Reset Pin No. Definition Reserved Reserved Reserved Reserved HD-LED FAN-ERR LAN1 LED 9-10 (Link+Active) 11-12 LAN1 LED (Speed) LAN2 LED 13-14 (Link+Active) 15-16 LAN2 LED(Speed) 17-18 PWR-LED 19-20 PWR-BTN Normal Reset...
  • Page 29: Jp3: Usb Device Wake Up Selection

    JP3: USB device Wake up Selection JP8 : Case Open Panel and Jumper Definition Normal Enable (Default) Pin No. Definition 1-2 close Normal (Default) Enabled USB Device 2-3 close Wake up Pin No. Definition Signal...
  • Page 30: Jp9: Lan1 Control

    6VTMR Motherboard JP9: LAN1 Control JP10: LAN2 Control Disable Enable Pin No. Definition 1-2 close Enable 2-3 close Disable JP10 JP10 Enable Disable Pin No. Definition 1-2 close Enable 2-3 close Disable...
  • Page 31: Jp11 (Ati Rage Xl)

    JP11: ATI RAGE XL (Onboard VGA Selection) BAT1: Battery Panel and Jumper Definition JP11 JP11 Enable Disable Pin No. Definition 1-2 close Enable 2-3 close Disable CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
  • Page 32: Performance List

    DRAM • 512KB include in CPU CACHE SIZE • Onboard ATI Rage XL DISPLAY • Onboard IDE (Quantum AS30000AT 30GBx2) STORAGE • Windows 2000 + SP2 O.S. • DRIVER Display Driver at 1024x768x16bitx75MHz (VUCD 1.81) Processor WCPUID 3.0C Clock Frequency...
  • Page 33: Block Diagram

    Block Diagram ATi Rage XL PCI Bus 33MHz 82559 1 PCI PCI (33MHz) PCI (33MHz) 48MHz 14.318MHz 33MHz Block Diagram CPUCLK (100/133MHz) PGA370 System Bus 100/133MHz 3.3V SDRAM VT82C694T 100/133MHz HCLK (100/133MHz) 33MHz 14.318MHz 48MHz VT82C686B 2 USB Ports COM Ports PS/2 Floppy Port HCLK (100/133MHz)
  • Page 34: Q-Flash Bios Utility Introduction

    6VTMR Motherboard Q-Flash BIOS Utility Introduction A. What's Q-Flash BIOS Utility? Q-Flash utility is a pre-O.S. BIOS flash utility enables users to update its BIOS within BIOS mode, no more fooling around any OS. Q-Flash BIOS Utility How to use a.
  • Page 35 Q-Flash Utility Introduction Congratulation! You have completed the flashed and now can restart system. Note: Don’t Turn Off Power or Reset System (in flash BIOS)
  • Page 36: Advanced Networking Services For Windows Nt* 4 And Windows 2000 (Teaming)

    6VTMR Motherboard Advanced Networking Services for Windows NT* 4 and Windows 2000 (Teaming) Please make sure the Intel LAN Adapter teaming driver Install complete. refer to page 64) 1. Intel LAN Adapter Teaming Adapter Teaming Installation Notes for the PRO/100 S Server Adapter Under Windows NT 4.0 and Windows 2000.
  • Page 37 2. Adapter Fault Tolerance (AFT) 2.1 OverView A method of safeguarding the network link to the server switch or network service using transparent backup links. Adapter Fault Tolerance (AFT) requires two adapters and an intelligent software agent that continuously monitors both links. If any component of one link fails, the redundant link takes over within seconds—typically, without users (connected via a hub or switch) even noticing the exchange.
  • Page 38 6VTMR Motherboard 3. Adaptive Load Balancing (ALB) 3.1 Overview Also known as asymmetric port aggregation—is a method of ensuring consistent high server throughput and transparent backup connections by using multiple network interface cards and balancing the data transmissions across them. As many as four Intel® server adapters, connected to a switch, can be configured to work together as a "team"...
  • Page 39: General Instructions

    4. General Instructions 4.1 Perform Teaming In Windows NT4.0 Or Windows 2000 Setup Intel PROSet II. Then, double-click on the Intel (R) PROSet II icon in the Control Panel will launch the PROSet utility. 2. Create a new team . Advanced Networking Services...
  • Page 40 6VTMR Motherboard 3. At the Teaming Wizard dialog, select the type of team you want to create and click Next. 4. Add a check in the checkbox for each adapter you want as a part of the team and click Next.
  • Page 41 Advanced Networking Services 5. Click OK to close PROSet. II You should notice a new listing in the Network control panel, which is the team you have created. 6. After the team created, a Intel® Advanced Network Services Virtual Adapter will appear on Network in the Control Panel.
  • Page 42: Page Index For Bios Setup

    6VTMR Motherboard Page Index for BIOS Setup Main Advanced Boot Server Security Default PC Health Exit Page P.38 P.40 P.50 P.53 P.54 P.55 P.56 P.58...
  • Page 43: Getting Help

    BIOS Setup BIOS Setup is an overview of the BIOS Setup Program. The program that allows users to modify the basic system configuration. This type of information is stored in battery-backed CMOS RAM so that it retains the Setup information when the power is turned off. ENTERING SETUP Power ON the computer and press <F2>...
  • Page 44: Main

    6VTMR Motherboard • Main This setup page includes all the items in standard compatible BIOS. • Advanced This setup page includes all the items of AMI special enhanced features. (ex: Auto detect fan and temperature status, automatically configure hard disk parameters.) •...
  • Page 45 Main (For Example BIOS Version:6VTMR.F4) Once you enter AWARD BIOS CMOS Setup Utility, the Main Menu (Figure 1) will appear on the screen. The Main Menu allows you to select from eight setup functions and one exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-screen. CMOS Setup Utility-Copyright( C ) 1984-2001 Award Software Main Advanced...
  • Page 46 6VTMR Motherboard • Time The times format in <hour> <minute> <second>. The time is calculated base on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. • IDE Primary Master, Slave / Secondary Master, Slave The category identifies the types of hard disk from drive C to F that has been installed in the computer.
  • Page 47: Advanced

    Advanced CMOS Setup Utility-Copyright( C ) 1984-2001 Award Software Main Advanced Boot 4Advanced BIOS Features 4Advanced Chipset Features 4Integrated Peripherals 4Power Management Setup ↑↓→ ←:Move Enter:Select +/-/PU/PD:Value F5:Previous Values F6:Fail-Safe Defaults Figure 2: Advanced Advanced BIOS Features CMOS Setup Utility-Copyright( C ) 1984-2001 Award Software Advanced Advanced BIOS Features Virus Warning...
  • Page 48 6VTMR Motherboard • Virus Warning If it is set to enable, the category will flash on the screen when there is any attempt to write to the boot sector or partition table of the hard disk drive. The system will halt and the following error message will appear in the mean time.
  • Page 49 • Typematic Rate (Chars / Sec.) 6-30 Set the maximum Typematic rate from 6 chars. Per second to 30 characters. Per second. (Default Value: 6) • Typematic Delay (Msec.) 250-1000 Set the time delay from first key to repeat the same key in to computer.
  • Page 50 6VTMR Motherboard • Onchip USB Enabled onchip USB (Default Value) Enabled Disabled Disabled onchip USB • USB Keyboard Support Enabled USB Keyboard Support Enabled Disabled Disabled USB Keyboard Support (Default Value) • USB Mouse Support Enabled USB Mouse Support Enabled Disabled Disabled USB Mouse Support (Default Value) •...
  • Page 51 • On-Chip IDE Channel 0 Disabled Disable onboard 1 Enabled Enable onboard 1 • On-Chip IDE Channel 1 Disabled Disable onboard 2 Enabled Enable onboard 2 • Primary Master PIO (for onboard IDE 1st channel). Auto BIOS will automatically detect the IDE HDD Accessing mode. (Default Value) Mode0~4 Manually set the IDE Accessing mode.
  • Page 52 6VTMR Motherboard • Primary Slave UDMA. Auto BIOS will automatically detect the IDE HDD Accessing mode. (Default Value) Disabled Disable UDMA function. • Secondary Master UDMA. Auto BIOS will automatically detect the IDE HDD Accessing mode. Disabled Disable UDMA function. (Default Value) •...
  • Page 53 • Onboard Serial Port 2 Auto BIOS will automatically setup the port 2 address. (Default Value) 3F8/IRQ4 Enable onboard Serial port 2 and address is 3F8. 2F8/IRQ3 Enable onboard Serial port 2 and address is 2F8. 3E8/IRQ4 Enable onboard Serial port 2 and address is 3E8. 2E8/IRQ3 Enable onboard Serial port 2 and address is 2E8.
  • Page 54 6VTMR Motherboard CMOS Setup Utility-Copyright( C ) 1984-2001 Award Software Advanced Power Management [User Define] Power Management HDD Power Down [Disabled] Doze Mode [Disabled] Suspend Mode [Disabled] ↑↓→ ←:Move Enter:Select +/-/PU/PD:Value F5:Previous Values F6:Fail-Safe Defaults Figure 2-4-1: Power Management CMOS Setup Utility-Copyright( C ) 1984-2001 Award Software Advanced Wake Up Events Power On by PCI Card...
  • Page 55 • Power Management User Define For configuring our own power management features. (Default Value) Min Saving Enable Green function. Man Saving Disable Green function. • HDD Power Down Disabled Disabled HDD Power Down mode function. (Default Value) 1-15 mins. Enabled HDD Power Down mode between 1 to 15 mins. •...
  • Page 56 6VTMR Motherboard • Wake Up Event • Power On by PCI card Disabled Disable this function. Enabled Power on by PCI card. (Default Value) • Wake Up On Ring Disabled Disabled Wake Up On Lan / Ring function. (Default Value) Enabled Enabled Wake Up On Lan / Ring function.
  • Page 57: Boot

    Boot CMOS Setup Utility-Copyright( C ) 1984-2001 Award Software Main Advanced Boot Server [Floppy] First Boot Device [CDROM] Second Boot Device Third Boot Device [HDD] Boot Up Floppy Seek [Enabled] Boot Up NumLock Status [ON] Console Redirection [Disabled] Agent Connect via [NULL] Agent wait time(min) Agent after boot...
  • Page 58 6VTMR Motherboard • Boot Up Floppy Seek During POST, BIOS will determine the floppy disk drive installed is 40 or 80 tracks. 360 K type is 40 tracks 720 K, 1.2 M and 1.44 M are all 80 tracks. Enabled BIOS searches for floppy disk drive to determine it is 40 or 80 tracks.
  • Page 59 • Onboard LAN1 Boot ROM Disabled Disable this function (Default Value) Enabled Select your boot device priority by LAN1. • Onboard LAN2 Boot ROM Disabled Disable this function. (Default Value) Enabled Select your boot device priority by LAN2. BIOS Setup...
  • Page 60: Server

    6VTMR Motherboard Server CMOS Setup Utility-Copyright( C ) 1984-2001 Award Software Main Advanced Boot Server [No] Clear All DMI Event Log View DMI Event Log [Enter] Event Log Capacity Space Available Halt On [All, But Keyboard] ↑↓→ ←:Move Enter:Select +/-/PU/PD:Value F5:Previous Values F6:Fail-Safe Defaults Figure 4: Server...
  • Page 61: Security

    Security CMOS Setup Utility-Copyright( C ) 1984-2001 Award Software Main Advanced Boot Server Set Supervisor Password Set User Password Security Option [Setup] ↑↓→ ←:Move Enter:Select +/-/PU/PD:Value F5:Previous Values F6:Fail-Safe Defaults Figure 5: Security The BIOS Setup program allows you to specify two separate passwords: a SUPERVISOR PASSWORD and a USER PASSWORD.
  • Page 62: Default

    6VTMR Motherboard Defaults CMOS Setup Utility-Copyright( C ) 1984-2001 Award Software Main Advanced Boot Load Fail-Safe Default Load Optimized Default ↑↓→ ←:Move Enter:Select +/-/PU/PD:Value F5:Previous Values F6:Fail-Safe Defaults Figure 6: Default • Load Failsafe Defaults Selecting this field loads the factory defaults for BIOS and Chipset Features which the system automatically detects.
  • Page 63: Pc Health

    PC Health CMOS Setup Utility-Copyright( C ) 1984-2001 Award Software Main Advanced Boot CPU Warning Temperature FAN 1 Error FAN 2 Error FAN 3 Error FAN 4 Error System Voltage Spectrum Current CPU Temp. Current System Temp. Current FAN1 Speed Current FAN2 Speed Current FAN3 Speed Current FAN4 Speed...
  • Page 64 6VTMR Motherboard • Fan Error Fan1 / Fan 2 / Fan3/ Fan 4 Disabled Fan Error Function Disabled. (Default value) 7200/6000/4800/3600/3000/2400/1800/1200/900/600/300 RPM Low limit for FAN speed. • System Voltage Spectrum Disabled System voltage spectrum Function Disabled. (Default value) 20.0/15.0/12.0/10.0/9.0/8.0/7.0/6.0/5.0/4.5/4.0/3.5/3.0/2.5/2.0/1.5/1.0% voltage tolerance before warning.
  • Page 65: Exit

    Exit CMOS Setup Utility-Copyright( C ) 1984-2001 Award Software Main Advanced Boot Server Save & Exit Setup Exit Without Saving ↑↓→ ←:Move Enter:Select +/-/PU/PD:Value F5:Previous Values F6:Fail-Safe Defaults • Save & Exit Setup Type "Y" will quit the Setup Utility and save the user setup value to RTC CMOS. Type "N"...
  • Page 67: Technical Support /Rma Sheet

    Technical Support /RMA Sheet Customer/Country: Company: Contact Person: E-mail Add. : Model name/Lot Number: BIOS version: O.S./A.S.: Hardware Mfs. Model name Size: Configuration Memory Brand Video Card Audio Card CD-ROM / DVD-ROM Modem Network AMR / CNR Keyboard Mouse Power supply Other Device Problem Description: Technical Support /RMA Sheet...
  • Page 68: Appendix

    6VTMR Motherboard Appendix Picture below are shown in Windows 98 ( driver CD:1.0) Appendix A: VIA Chipsets Driver Installation A. VIA 4 in 1 Service Pack Driver: Insert the driver CD-title that came with your motherboard into your CD-ROM driver, the driver CD-title will auto start and show the installation guide.
  • Page 69 Appendix 6.Click “Finish” to restart computer.
  • Page 70 6VTMR Motherboard Appendix B : ATi VGA Driver Installation Insert the driver CD-title that came with your motherboard into your CD-ROM driver, the driver CD-title will auto start and show the installation guide. If not, please double click the CD-ROM device icon in “My computer”, and execute the setup.exe.
  • Page 71 Appendix C : Intel 82559 LAN Driver Installation Insert the driver CD-title that came with your motherboard into your CD-ROM driver, the driver CD-title will auto start and show the installation guide. If not, please double click the CD-ROM device icon in “My computer”, and execute the setup.exe. 1.Click “Control Panel”.
  • Page 72 6VTMR Motherboard 8.Type”D:\82559v40” 9.Click Next. 11.Click “Next”. 10.Click “Next”. 12.Click “Finish” to restart computer. (10)
  • Page 73 Appendix Appendix D: Intel 82559 LAN Utility Installation Insert the driver CD-title that came with your motherboard into your CD-ROM driver, the driver CD-title will auto start and show the installation guide. If not, please double click the CD-ROM device icon in “My computer”, and execute the setup.exe. 2.Click here.
  • Page 74 Format a bootable system floppy diskette by the command “format a:/s” in command mode. Visit the Gigabyte website at http:// need and download it to your bootable floppy diskette. Insert the bootable diskette containing the BIOS file into the floppy diskette driver.
  • Page 75 Appendix F: Acronyms Acronyms Meaning ACPI Advanced Configuration and Power Interface Advanced Power Management Accelerated Graphics Port Audio Modem Riser Audio Communication Riser BIOS Basic Input / Output System Central Processing Unit CMOS Complementary Metal Oxide Semiconductor CRIMM Continuity RIMM Communication and Networking Riser Direct Memory Access Desktop Management Interface...
  • Page 76 6VTMR Motherboard Acronyms Meaning Original Equipment Manufacturer PCI A.G.P. Controller POST Power-On Self Test Peripheral Component Interconnect RIMM Rambus in-line Memory Module Special Circumstance Instructions SECC Single Edge Contact Cartridge SRAM Static Random Access Memory Symmetric Multi-Processing System Management Interrupt Universal Serial Bus Voltage ID...
