GS-W42G-P08R

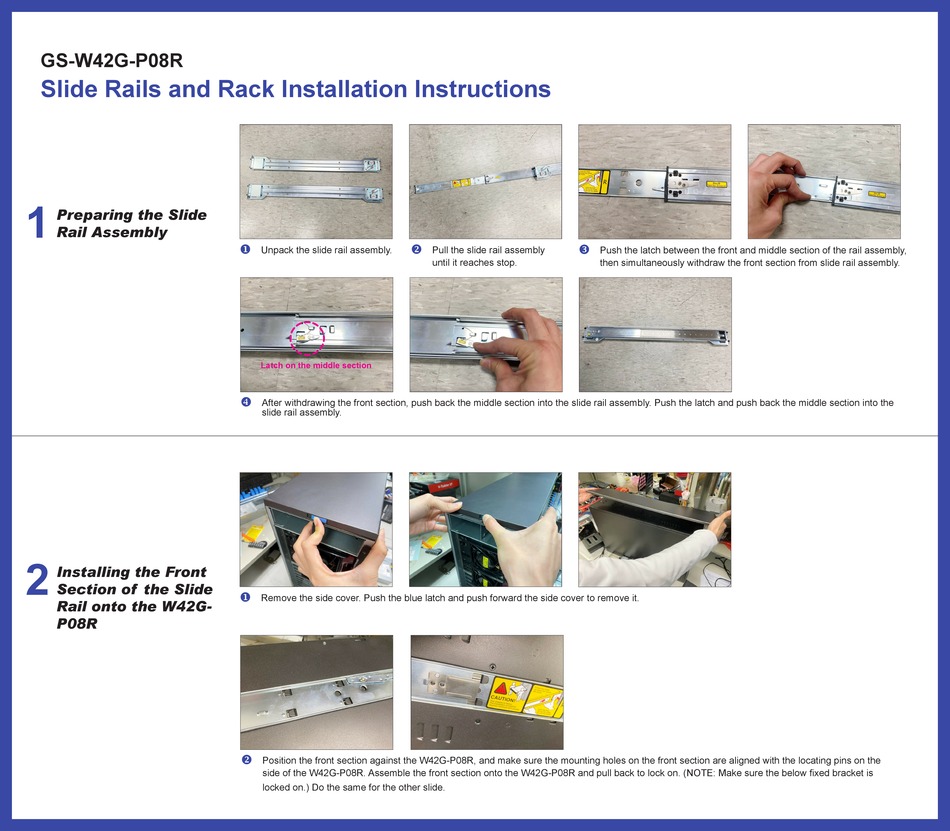

Slide Rails and Rack Installation Instructions
1
Preparing the Slide
Rail Assembly
2
Installing the Front
Section of the Slide
Rail onto the W42G-
P08R
u
v
Unpack the slide rail assembly.
Latch on the middle section
x
After withdrawing the front section, push back the middle section into the slide rail assembly. Push the latch and push back the middle section into the
slide rail assembly.
u
Remove the side cover. Push the blue latch and push forward the side cover to remove it.
v
Position the front section against the W42G-P08R, and make sure the mounting holes on the front section are aligned with the locating pins on the
side of the W42G-P08R. Assemble the front section onto the W42G-P08R and pull back to lock on. (NOTE: Make sure the below fixed bracket is
locked on.) Do the same for the other slide.
Pull the slide rail assembly
w
Push the latch between the front and middle section of the rail assembly,
until it reaches stop.
then simultaneously withdraw the front section from slide rail assembly.
Advertisement
Table of Contents
Related Manuals for Gigabyte GS-W42G-P08R
Summary of Contents for Gigabyte GS-W42G-P08R
- Page 1 GS-W42G-P08R Slide Rails and Rack Installation Instructions Preparing the Slide Rail Assembly Unpack the slide rail assembly. Pull the slide rail assembly Push the latch between the front and middle section of the rail assembly, until it reaches stop. then simultaneously withdraw the front section from slide rail assembly.
- Page 2 GS-W42G-P08R Slide Rails and Rack Installation Instructions Attaching the Slide Rail Assemblies to the Rack Position the slide rail assembly in your rack and attach the mounting bracket to the rack posts. Then lock on and push down. v T he front side and rear side assembly methods are the same. Attach the mounting bracket to the rack posts. Then lock on and push down.
- Page 3 GS-W42G-P08R Slide Rails and Rack Installation Instructions Sliding the W42G- P08R Back into the Push the latch on middle section of both sides and push the W42G-P08R back into rack to complete. Rack...
